CAEL MS1235 Two-Deck Mobile Screener – Yanmar 48 HP Engine
- Bank transfer acceptedOrder, make the transfer, then email the proof to shoptracteur@gmail.com. We confirm receipt of payment and ship your order. Learn more
- Secure paymentEncrypted Shopify checkout
- Delivery in 9 to 14 business daysEU: €10, or €500 by freight · United States: €14, or €1,000 by freight
- 5-year warranty5-year manufacturer warranty · statutory warranty included
- 14 days to change your mindStatutory right of withdrawal for consumers
Everything you need to know.
Description

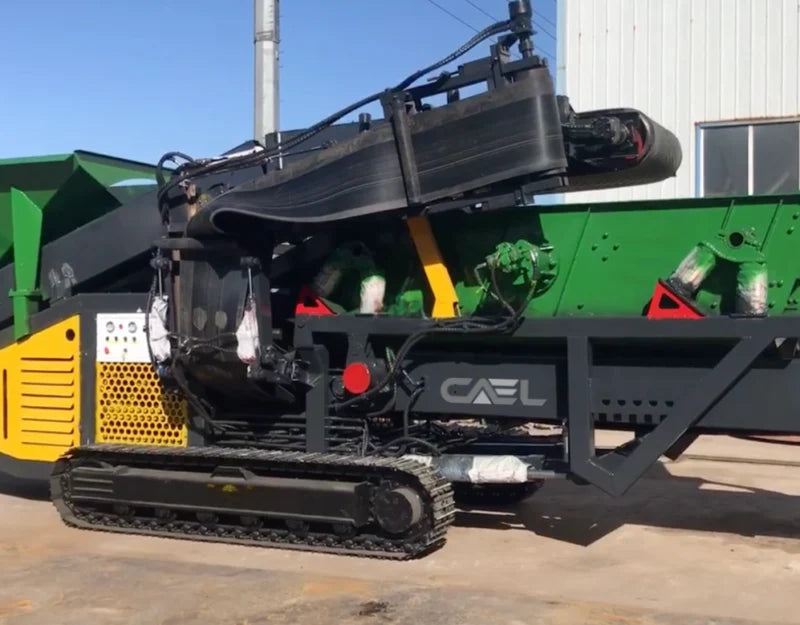

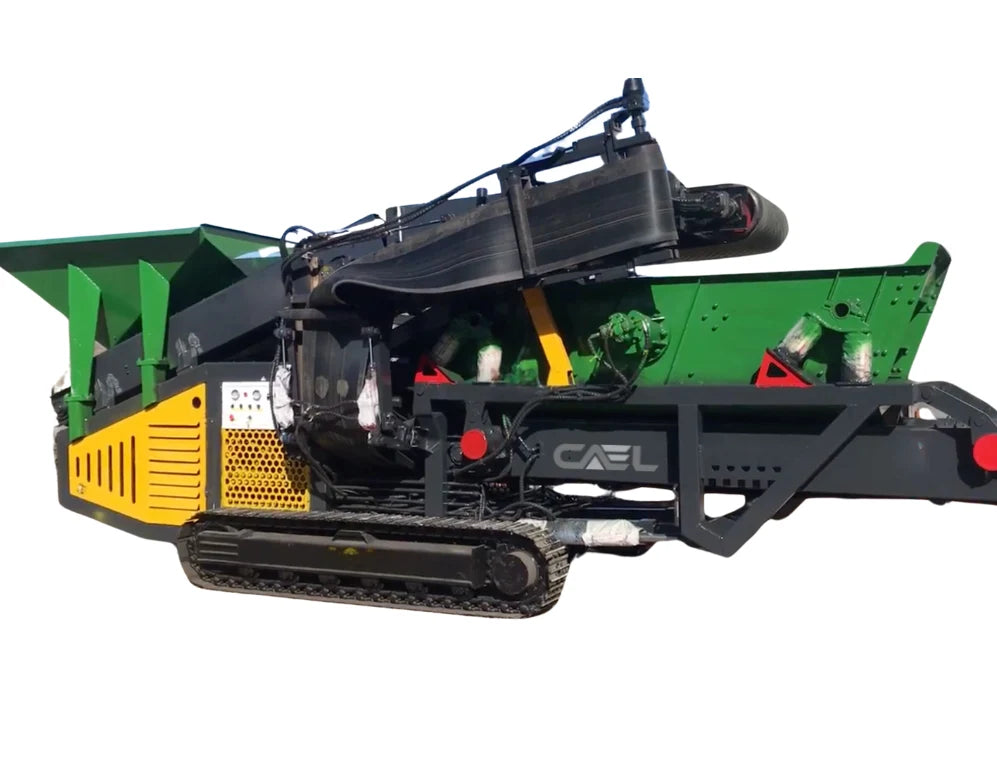

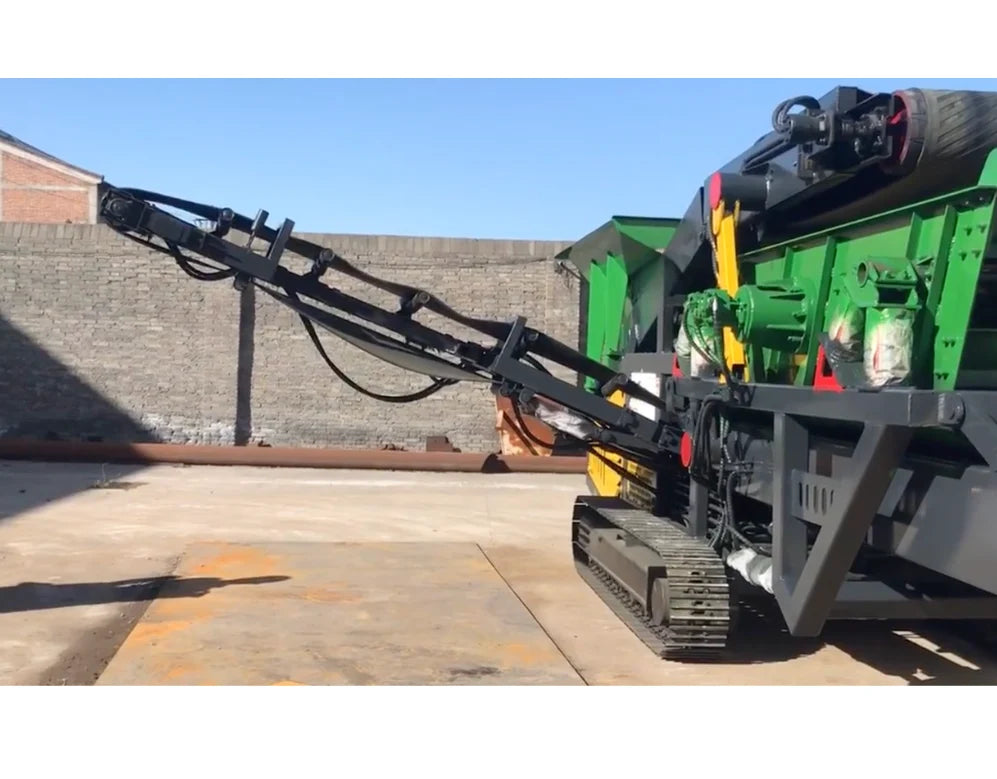

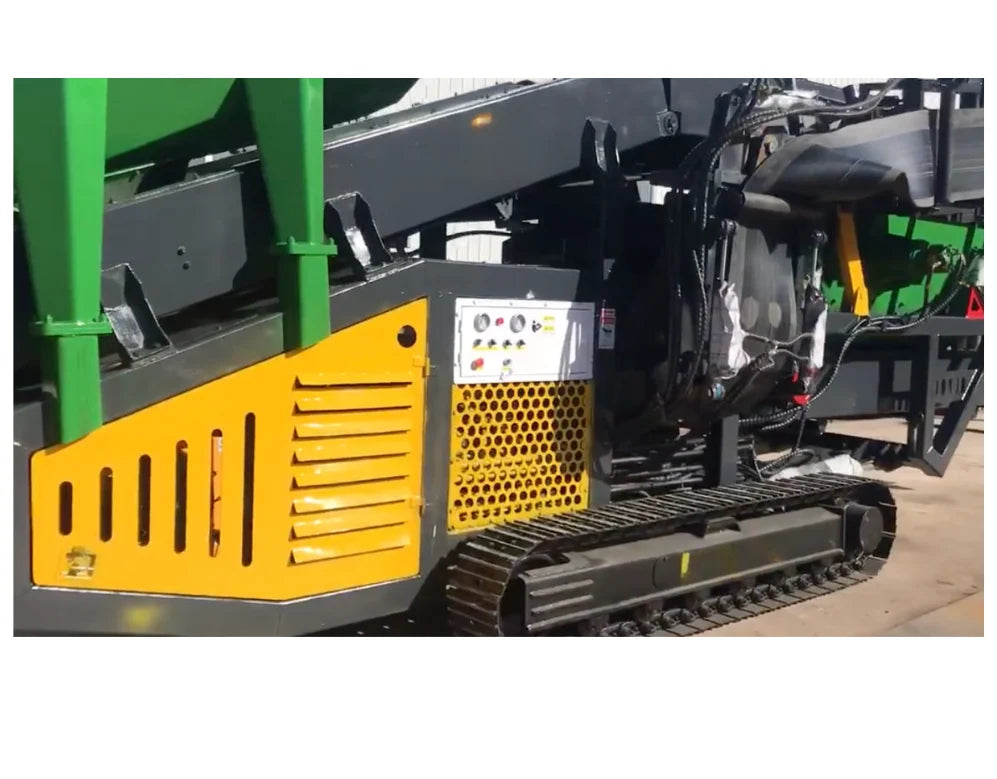

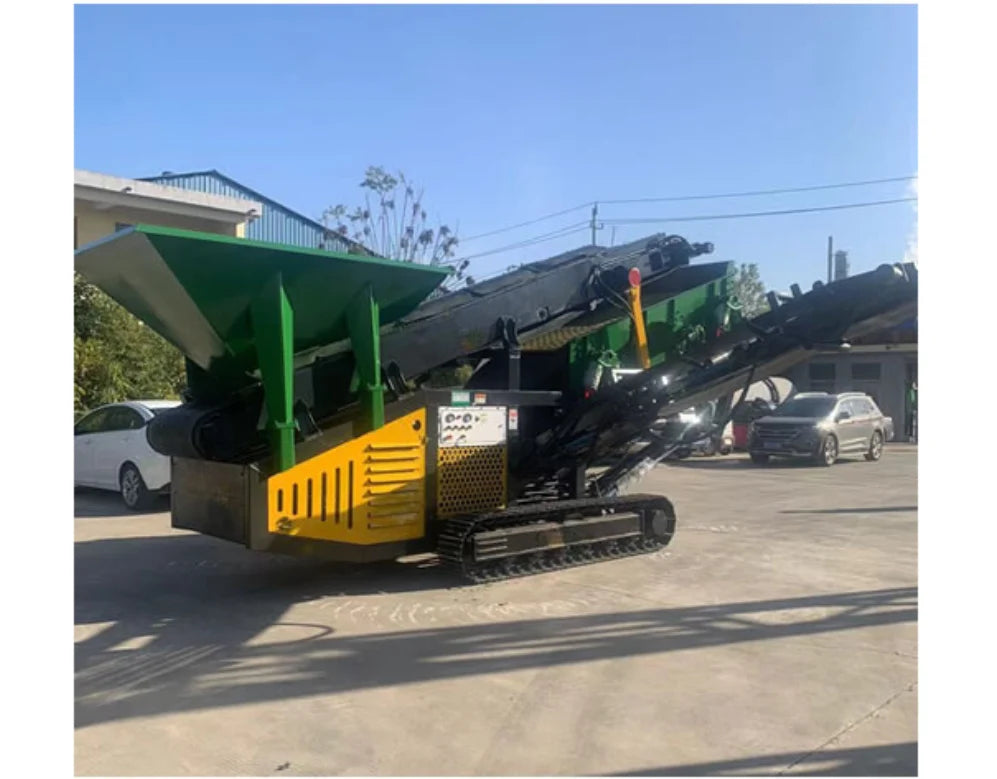

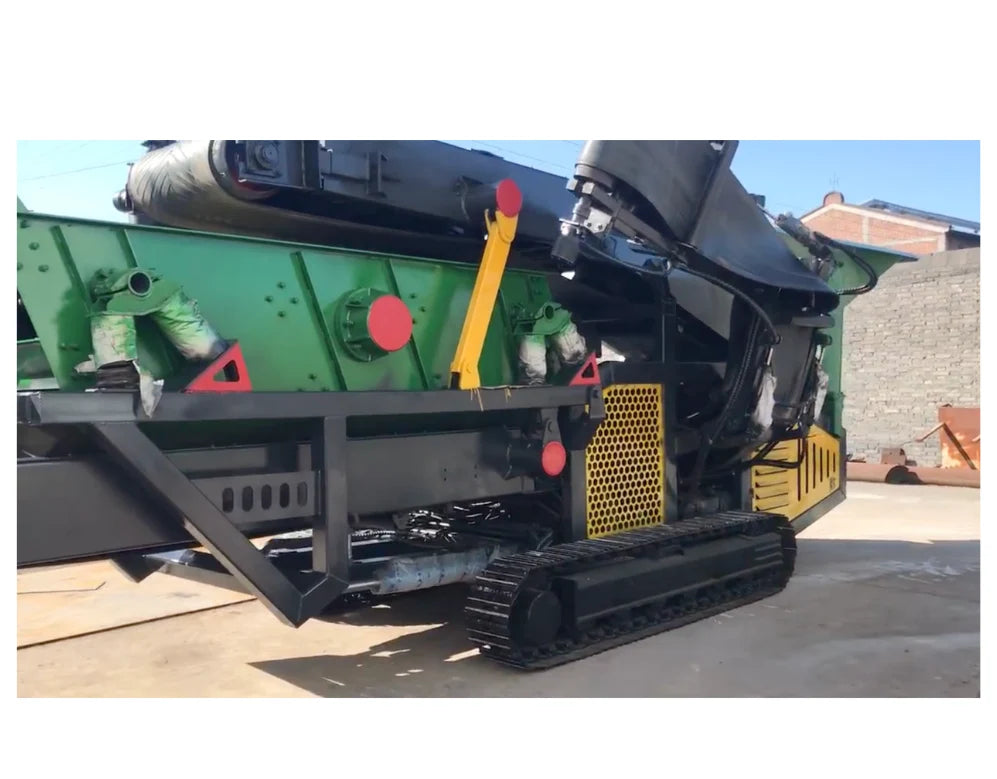

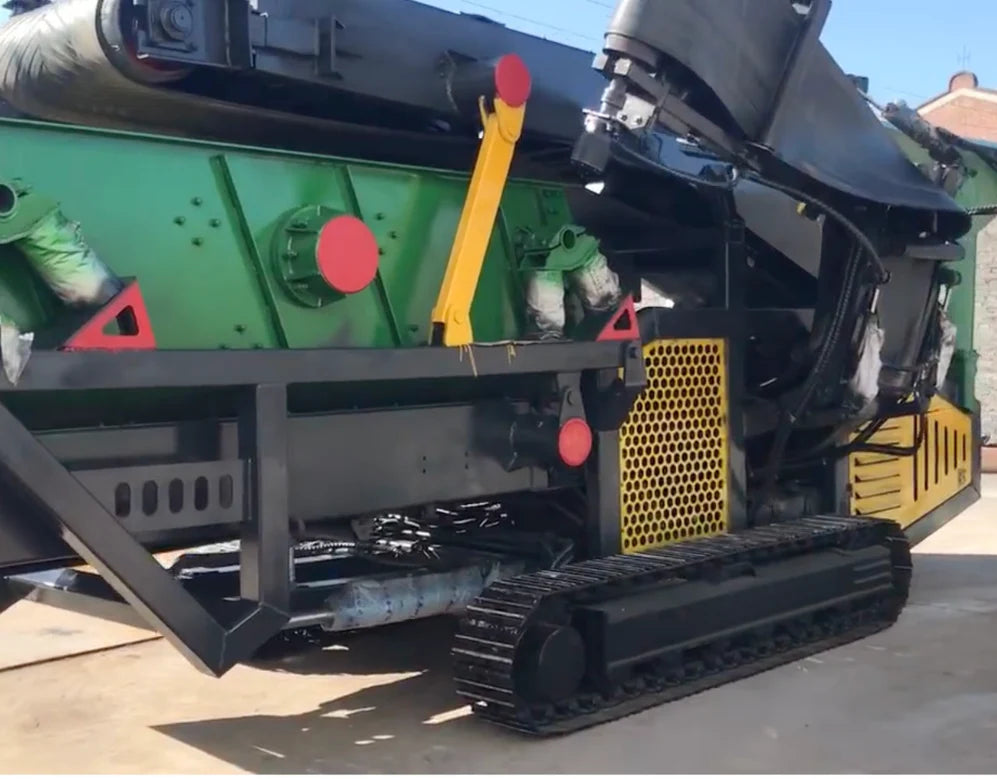

The CAEL MS1235 Mobile Screener with Yanmar engine is a two-deck, three-way screener for construction sites, quarries and demolition projects. Fully integrated systems cover both primary and secondary screening needs.
Key Features
- High-efficiency screening for various materials
- Two-deck, three-way screening for versatile applications
- Compact design for easy transport and rapid setup
- Low maintenance and high durability
- Fuel-efficient and powerful Yanmar engine
Suited to small and medium-sized operators and contractors, for applications including sand and gravel, aggregates and recycling.
Specifications
| Item | Specification |
|---|---|
| Stock bin volume | 1.5 m³ |
| Belt feeder | B800 × 4500 mm |
| Vibrating screen model | 2YK1200 × 3600 |
| Number of screen layers | 2 |
| Mesh size | 5/40 mm (custom made) |
| Maximum feed particle size | 200 mm |
| Throughput | 30–80 t/h |
| Side conveyor | B500 × 5000 |
| Under-screen conveyor | B800 × 6000 |
| Engine | Yanmar, Stage IIIA/V: 36 kW (48 HP) |
| Weight | 8500 kg |
| Working size (L × W × H) | 8900 × 7520 × 3200 mm |
| Transport size (L × W × H) | 8100 × 2250 × 2650 mm |
Technical specifications
| Model | CAEL MS1235 Two-Deck Mobile Screener – Yanmar 48 HP Engine |
|---|---|
| Full spec sheet | Detailed spec sheet on request |
Delivery & setup
Machines are delivered by freight carrier by appointment: 9 business days for France and the EU, 14 business days for the United States. Orders under €10,000: €10 (EU) or €14 (United States); from €10,000: €500 (EU) or €1,000 (United States). Inspect the machine in the driver's presence and note any reservations on the delivery slip.
Payment
Encrypted payment through Shopify checkout; available payment methods are shown at checkout. For multiple machines or a business purchase, request a quote.
Warranty & returns
2-year statutory warranty of conformity and a 14-day right of withdrawal for consumers. 5-year manufacturer warranty. To return a bulky machine, please contact us first: we'll tell you the cost and arrange the pickup.
