CAEL 4PHWA-14 Four-Post Alignment Lift – 14,000 lb Capacity

€7.199,10VAT included. Shipping calculated at checkout.
Request a Quote
Freight delivery or multiple items?
✓ Free quote including delivery – reply within 48 hours
✓ Bundle pricing and advice on compatibility with your tractor
✓ Questions? Contact us
Ask a question about this model
  • Bank transfer acceptedOrder, make the transfer, then email the proof to shoptracteur@gmail.com. We confirm receipt of payment and ship your order. Learn more
  • Secure paymentEncrypted Shopify checkout
  • Delivery in 9 to 14 business daysEU: €10, or €500 by freight · United States: €14, or €1,000 by freight
  • 5-year warranty5-year manufacturer warranty · statutory warranty included
  • 14 days to change your mindStatutory right of withdrawal for consumers
In detail

Everything you need to know.

Description

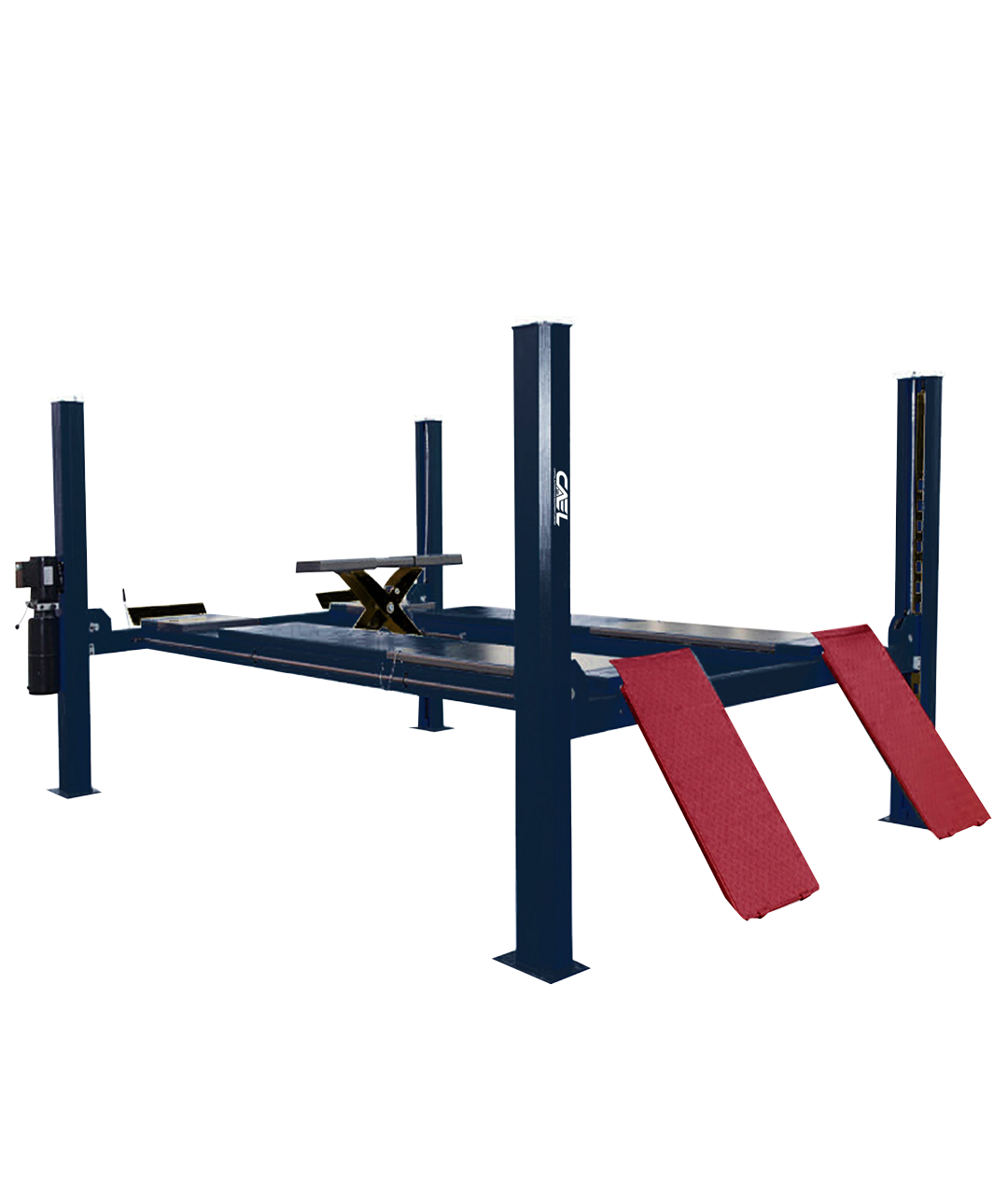

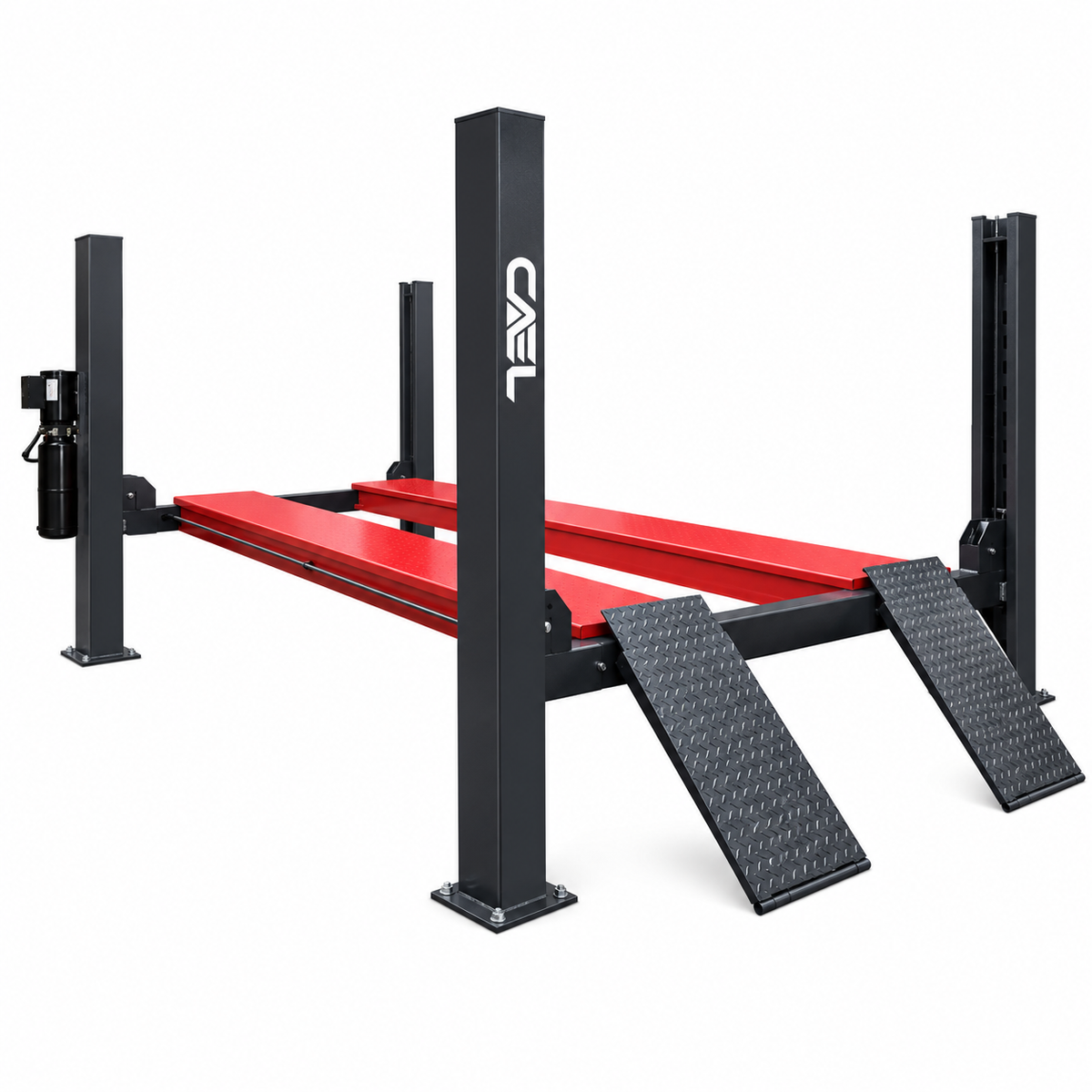

The CAEL 4PHWA-14 is a heavy-duty four-post alignment lift with a 14,000 lb capacity, built for professional four-wheel alignment, inspections, repairs and maintenance.

Key Features

  • CSA and ETL certified
  • Suited to a variety of auto service procedures, including professional high-precision four-wheel alignment, vehicle inspections, repairs and maintenance
  • Reliable, safe and stable heavy-duty alignment lift
  • Rolling jack included: once the vehicle is loaded, it lifts the vehicle off the runways for wheel service operations
  • Electric-hydraulic center jack powered by the lift motor, with telescoping arms that extend over the runways for easy loading
  • Tracks on the inside of the runways support the rolling center jack

Specifications

Weight capacity 6300 kg / 13889 lbs
Platform length 216.5 in / 5500 mm
Overall height 89.7 in / 2280 mm
Minimum height 9.44 in / 240 mm
Platform width 25.59 in / 650 mm
Width between platforms 43.30 in / 1100 mm
Power supply 220V
Lifting time 110 s
Max. lifting height 59–66.9 in / 1500–1700 mm
Weight 4850 lbs / 2200 kg

Technical specifications
ModelCAEL 4PHWA-14 Four-Post Alignment Lift – 14,000 lb Capacity
Full spec sheetDetailed spec sheet on request
Delivery & setup

Machines are delivered by freight carrier by appointment: 9 business days for France and the EU, 14 business days for the United States. Orders under €10,000: €10 (EU) or €14 (United States); from €10,000: €500 (EU) or €1,000 (United States). Inspect the machine in the driver's presence and note any reservations on the delivery slip.

Payment

Encrypted payment through Shopify checkout; available payment methods are shown at checkout. For multiple machines or a business purchase, request a quote.

Warranty & returns

2-year statutory warranty of conformity and a 14-day right of withdrawal for consumers. 5-year manufacturer warranty. To return a bulky machine, please contact us first: we'll tell you the cost and arrange the pickup.
