CAEL HP12N Two-Post Base Plate Lift – 12,000 lb

€3.149,10VAT included. Shipping calculated at checkout.
Request a Quote
Freight delivery or multiple items?
✓ Free quote including delivery – reply within 48 hours
✓ Bundle pricing and advice on compatibility with your tractor
✓ Questions? Contact us
Ask a question about this model
  • Bank transfer acceptedOrder, make the transfer, then email the proof to shoptracteur@gmail.com. We confirm receipt of payment and ship your order. Learn more
  • Secure paymentEncrypted Shopify checkout
  • Delivery in 9 to 14 business daysEU: €10, or €500 by freight · United States: €14, or €1,000 by freight
  • 5-year warranty5-year manufacturer warranty · statutory warranty included
  • 14 days to change your mindStatutory right of withdrawal for consumers
In detail

Everything you need to know.

Description

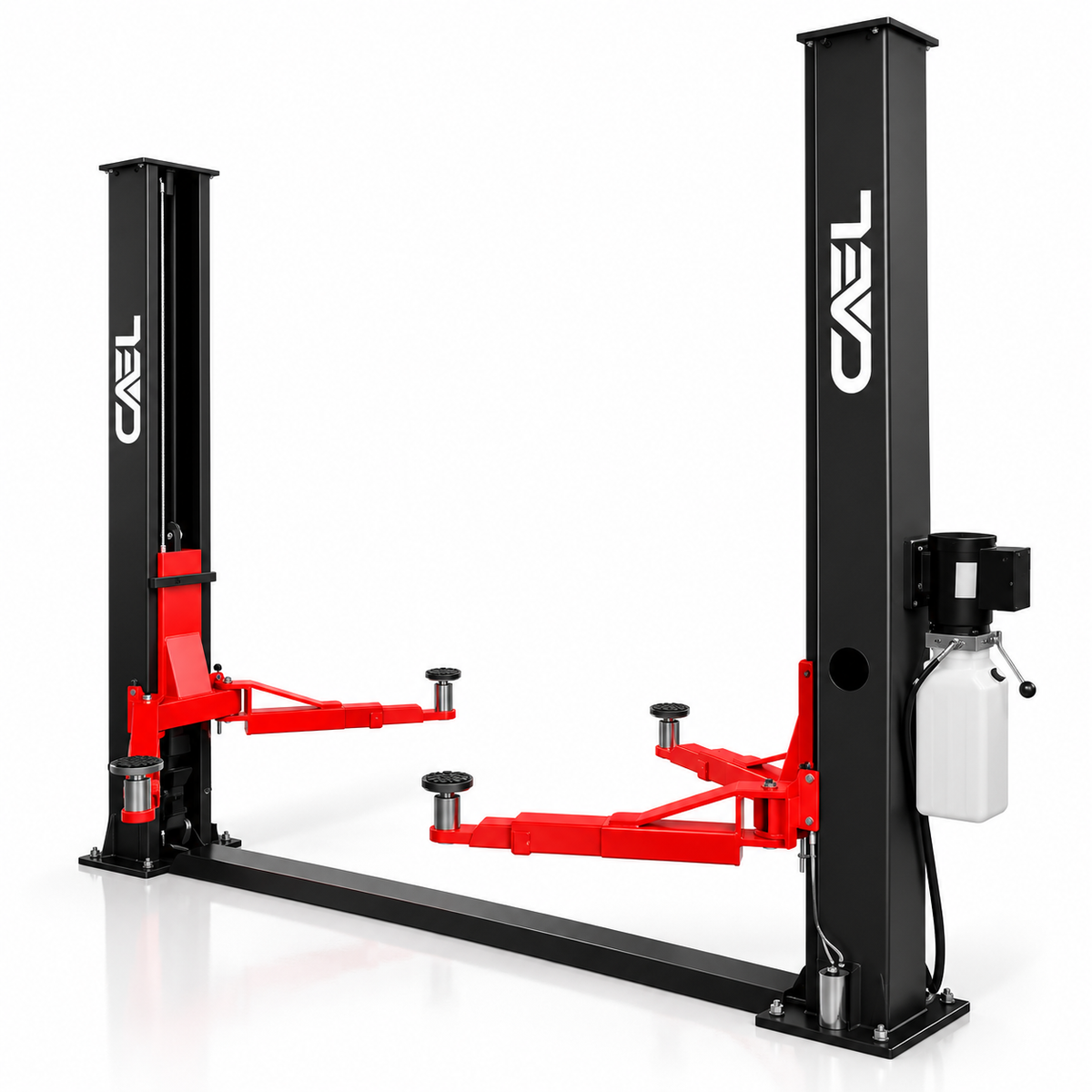

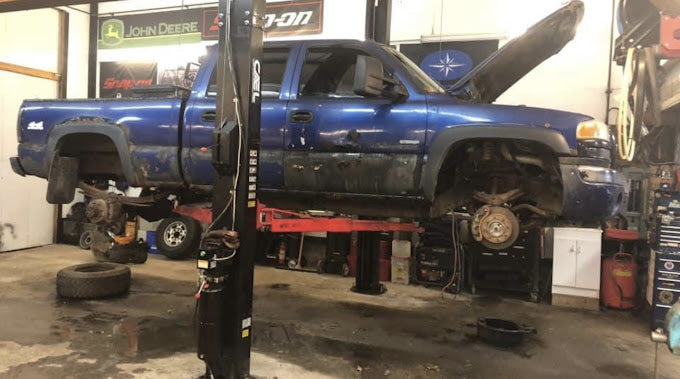

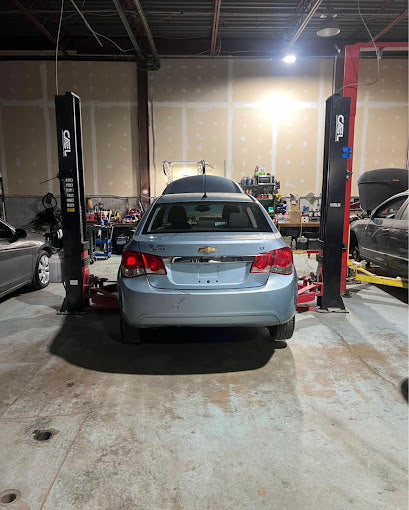

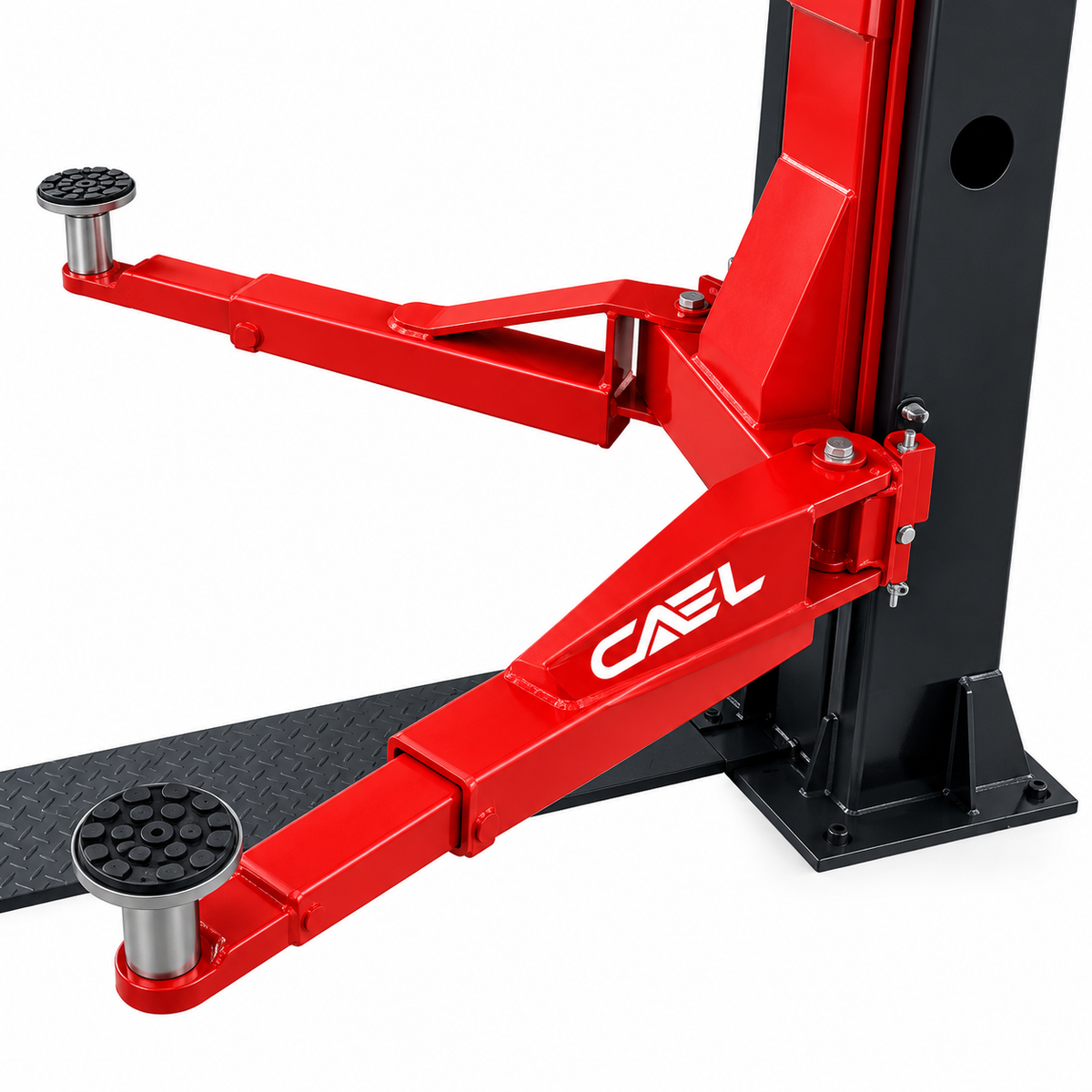

The CAEL HP12N Two-Post Base Plate Lift is a 12,000 lb (5,443 kg) professional two-post lift for automotive workshops, designed for larger SUVs, trucks, cargo vans and heavier commercial vehicles. Its open design leaves free working space between the posts, and symmetrical lifting arms give balanced vehicle support.

Key Features

  • 12,000 lb (5,443 kg) Lifting Capacity – Suitable for larger SUVs, trucks, cargo vans and heavier commercial vehicles.

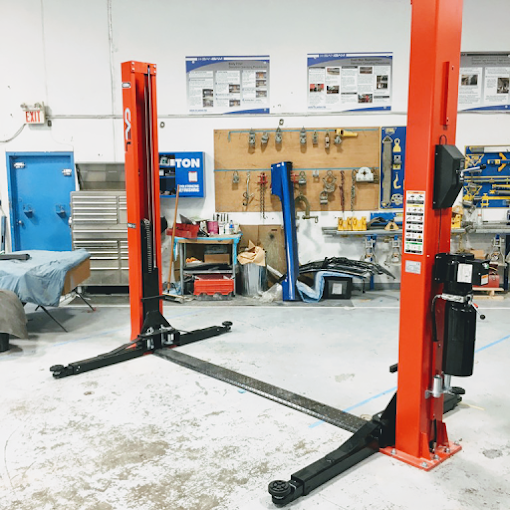

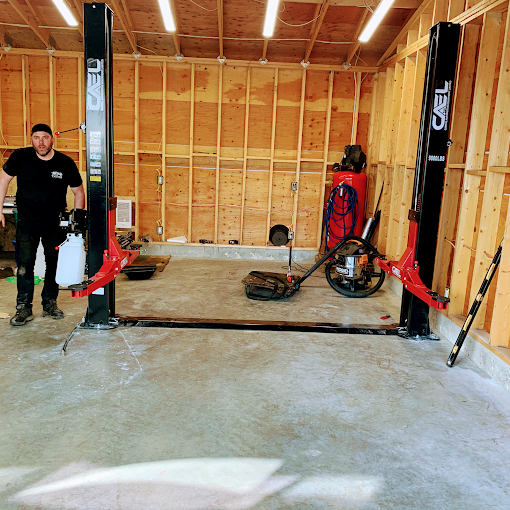

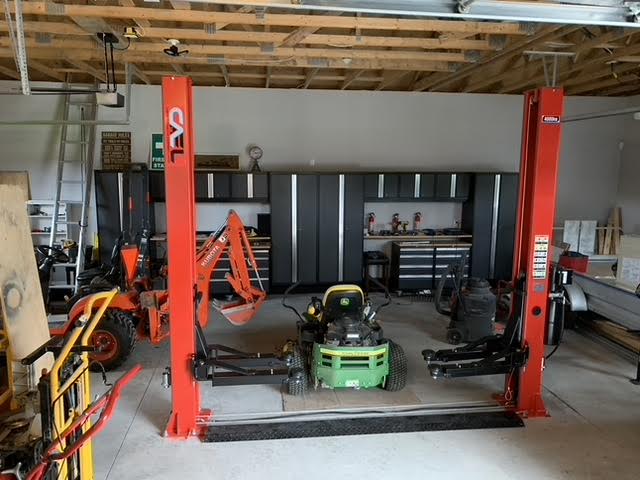

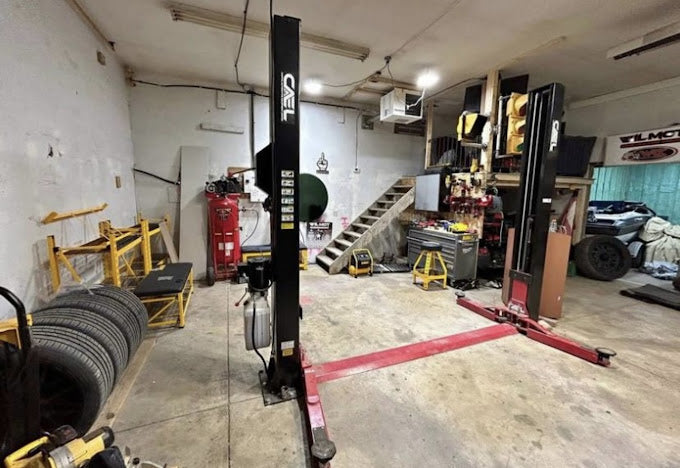

  • Open Work Area – Unobstructed space between the posts for tools and equipment.
  • ETL & CSA Certified – Meets recognized North American safety and quality standards.
  • Dual-Side Lock Release – Manual safety lock release from either side.
  • Collision Prevention Switch – Helps prevent contact between the vehicle roof and the ceiling.

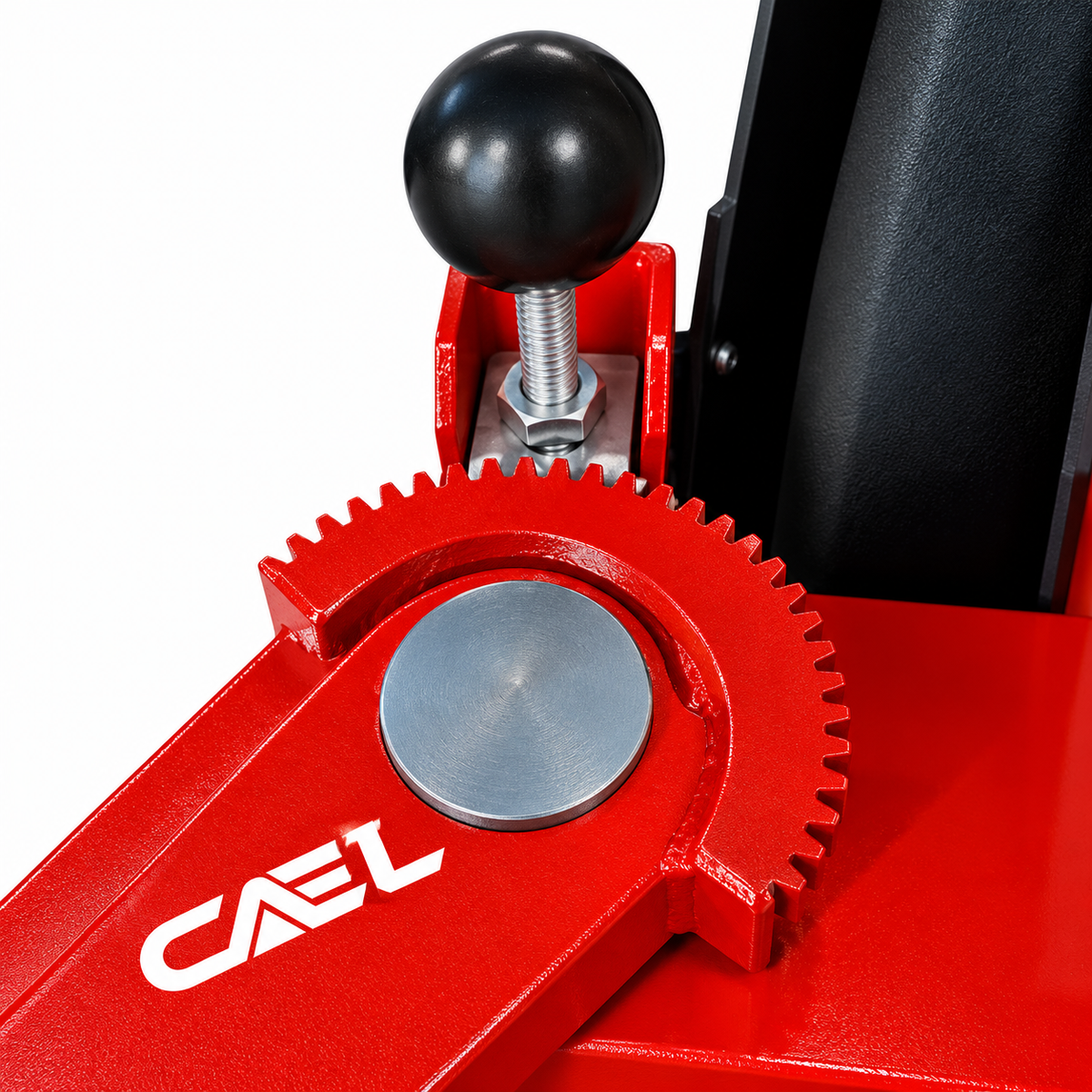

  • Mechanical Safety Latches – Reliable dual-side locking for operator protection.
  • Door Anti-Crush Rubber Guards – Help protect vehicle doors during lifting.
  • Synchronized Hydraulic Cylinders – Smooth and even lifting.
  • Cable Leveling System – Balanced load distribution for stable lifting.

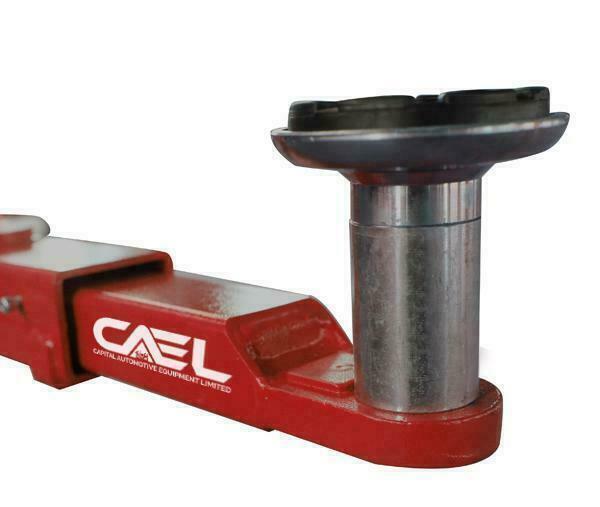

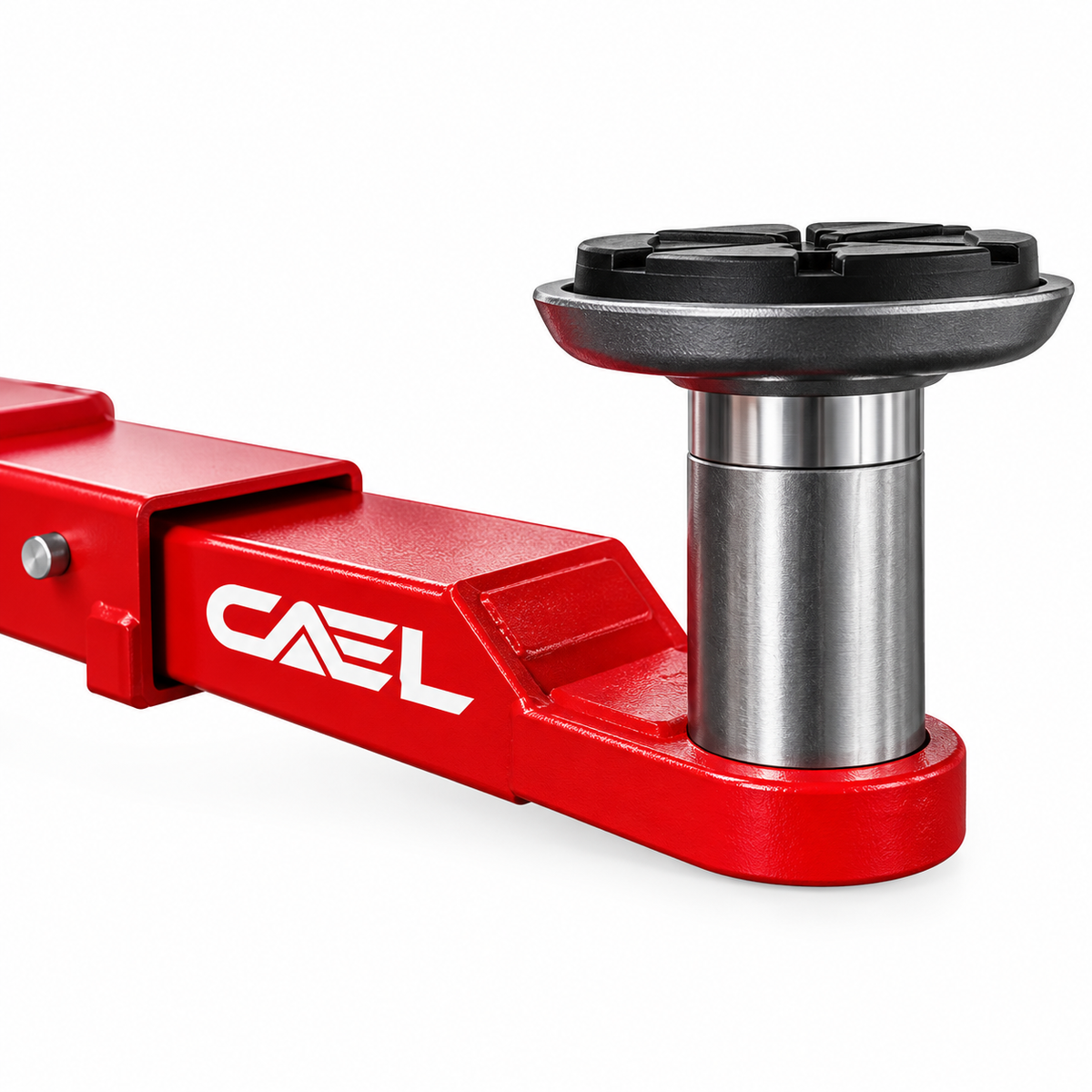

  • Wear-Resistant Rubber Pads – Secure lifting contact points.
  • Powder-Coated Finish – Corrosion-resistant industrial coating.
  • Standard Voltage: 220V

Technical Specifications

  • Model: HP12N
  • Capacity: 12,000 lb (5,443 kg)
  • Overall Width (Top): 3640 mm (143.3 in / 11 ft 11 in)
  • Inside Width Between Posts: 3290 mm (129.5 in / 10 ft 9.5 in)
  • Drive-Through Clearance: 2988 mm (117.6 in / 9 ft 9.6 in)
  • Overall Base Width: 3800 mm (149.6 in / 12 ft 5.6 in)
  • Overall Height: 2832 mm (111.5 in / 9 ft 3.5 in)
  • Post Depth: 285 mm (11.2 in)
  • Base Plate Length: 661 mm (26.0 in)
  • Arm Pad Height: 160 mm (6.3 in)
  • Short Arm Length: 820 mm (32.3 in / 2 ft 8.3 in)
  • Long Arm Length: 1550 mm (61.0 in / 5 ft 1.0 in)
  • Maximum Arm Span: 3800 mm (149.6 in / 12 ft 5.6 in)
  • Power Supply: 220V standard

Ideal Applications

Suited to automotive repair shops, service centers, fleet maintenance facilities and commercial garages.

Technical specifications
ModelCAEL HP12N Two-Post Base Plate Lift – 12,000 lb
Full spec sheetDetailed spec sheet on request
Delivery & setup

Machines are delivered by freight carrier by appointment: 9 business days for France and the EU, 14 business days for the United States. Orders under €10,000: €10 (EU) or €14 (United States); from €10,000: €500 (EU) or €1,000 (United States). Inspect the machine in the driver's presence and note any reservations on the delivery slip.

Payment

Encrypted payment through Shopify checkout; available payment methods are shown at checkout. For multiple machines or a business purchase, request a quote.

Warranty & returns

2-year statutory warranty of conformity and a 14-day right of withdrawal for consumers. 5-year manufacturer warranty. To return a bulky machine, please contact us first: we'll tell you the cost and arrange the pickup.
