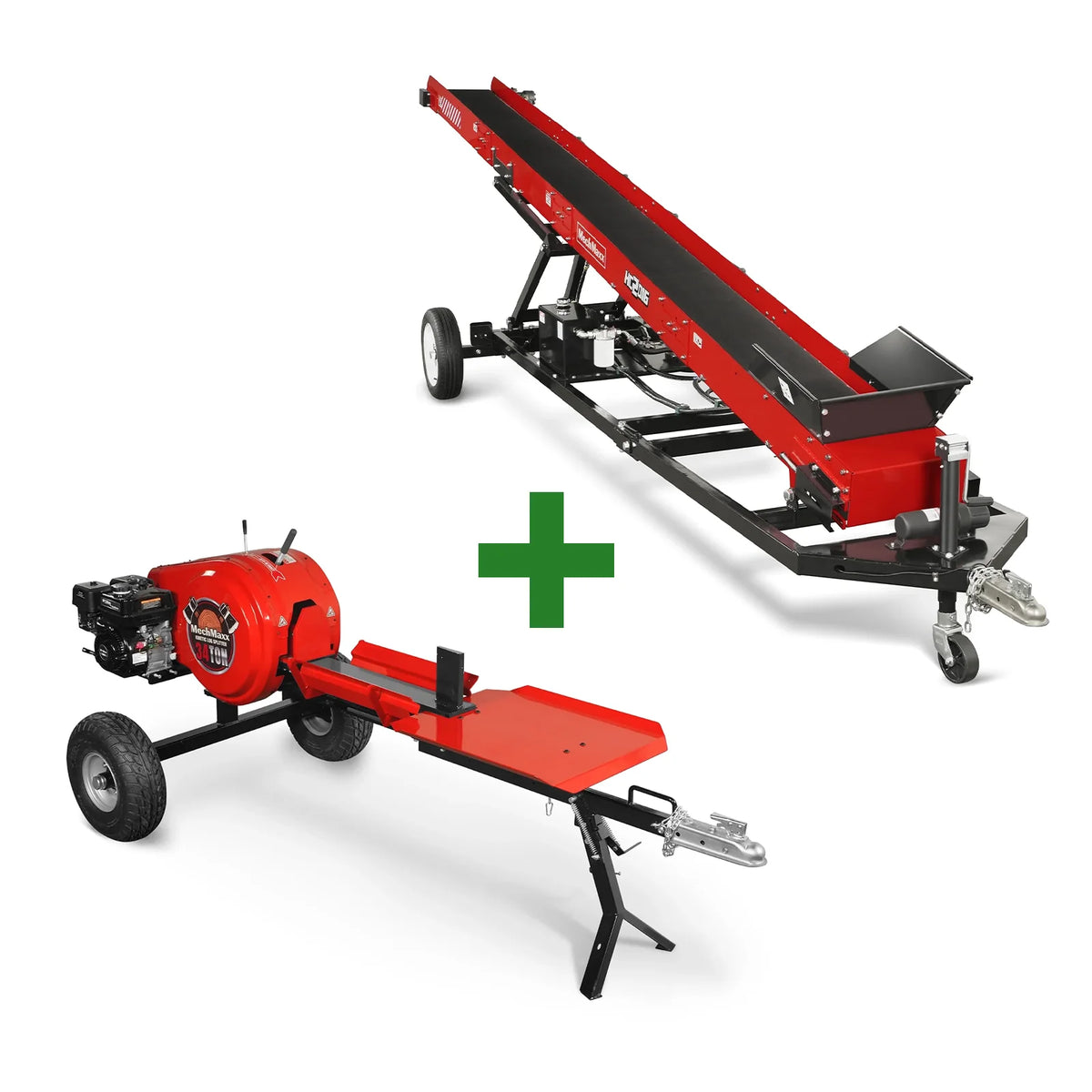

34 Ton Kinetic Log Splitter & Firewood Conveyor Bundle, KT34 & HC2016
- Bank transfer acceptedOrder, make the transfer, then email the proof to shoptracteur@gmail.com. We confirm receipt of payment and ship your order. Learn more
- Secure paymentEncrypted Shopify checkout
- Delivery in 9 to 14 business daysEU: €10, or €500 by freight · United States: €14, or €1,000 by freight
- 5-year warranty5-year manufacturer warranty · statutory warranty included
- 14 days to change your mindStatutory right of withdrawal for consumers
Everything you need to know.
Description

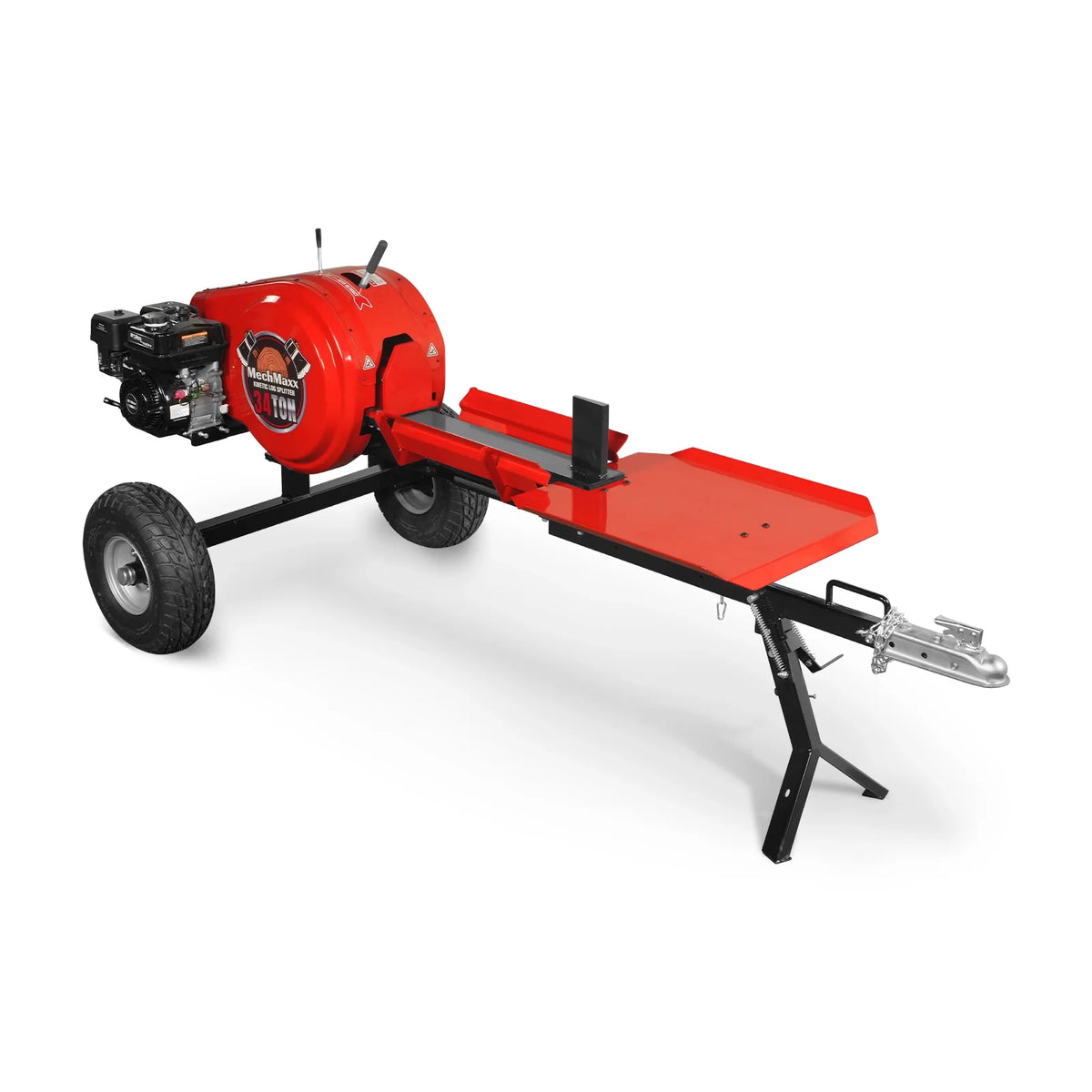

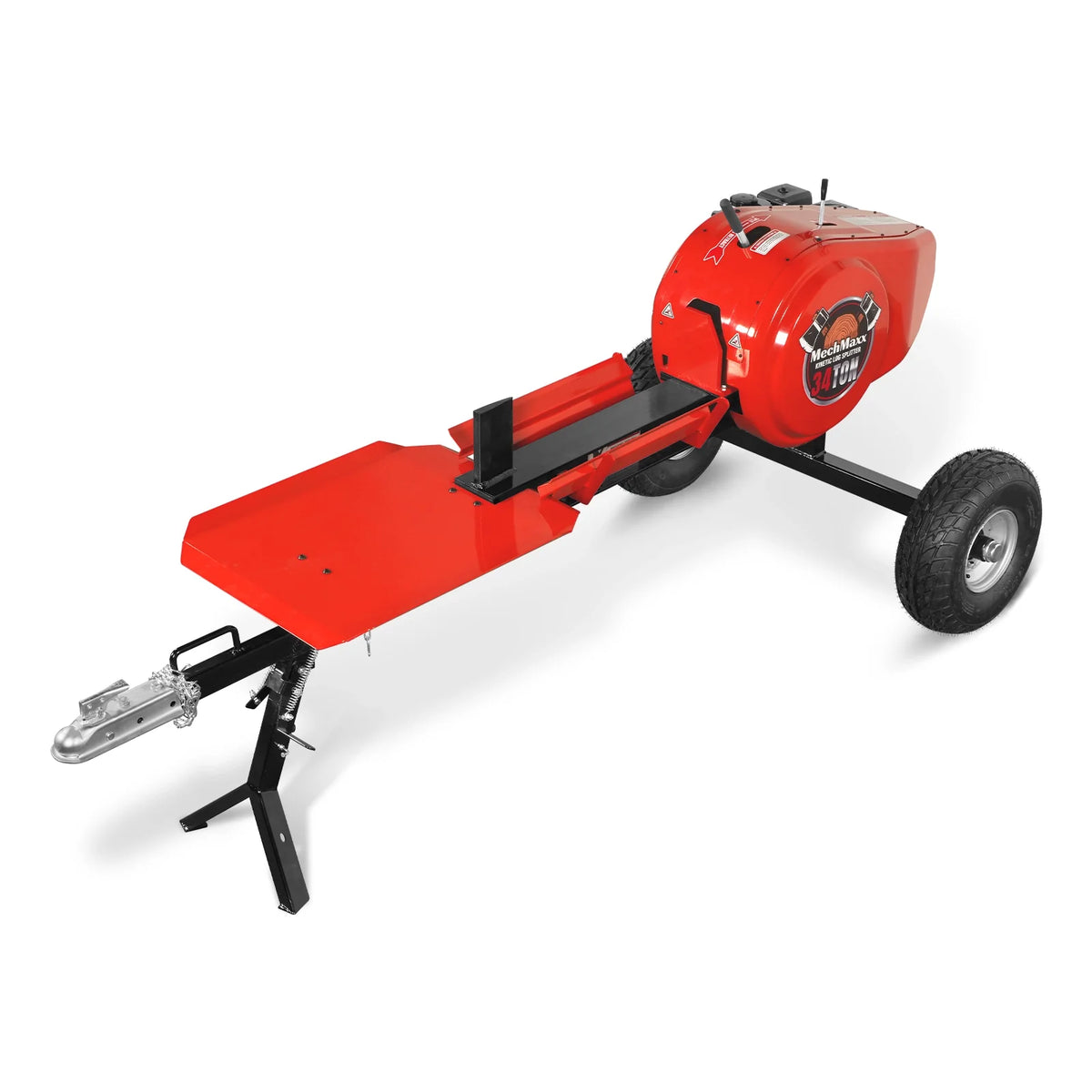

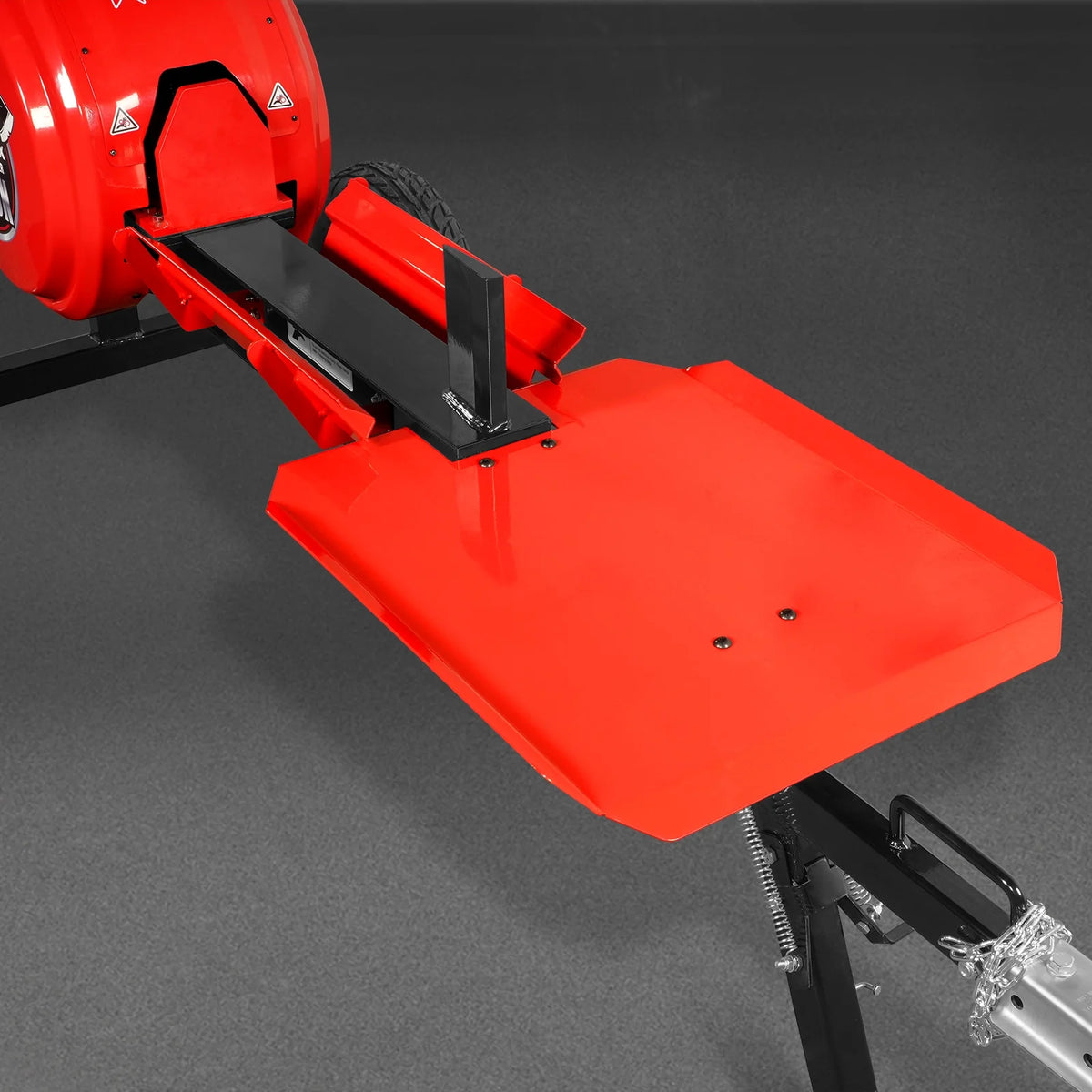

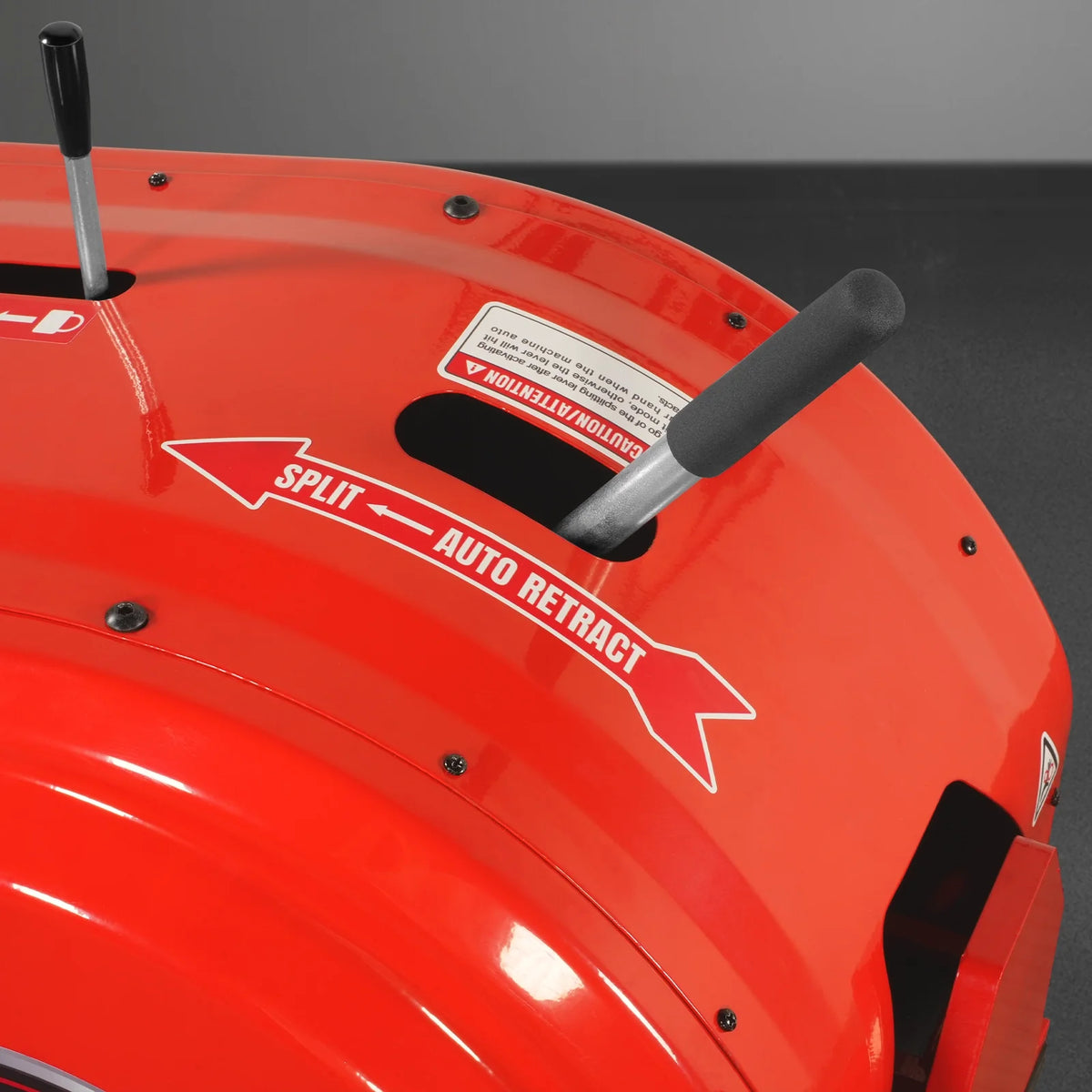

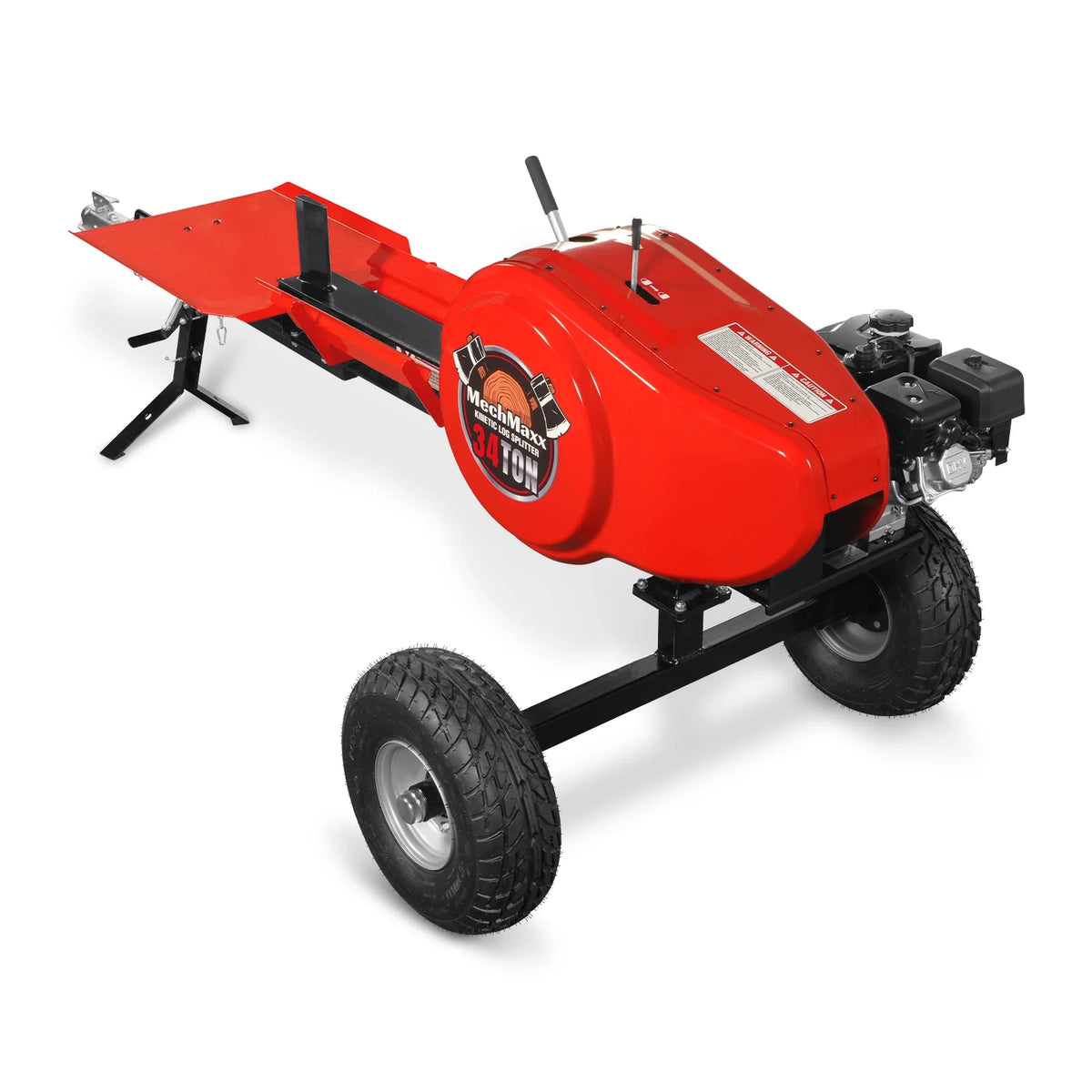

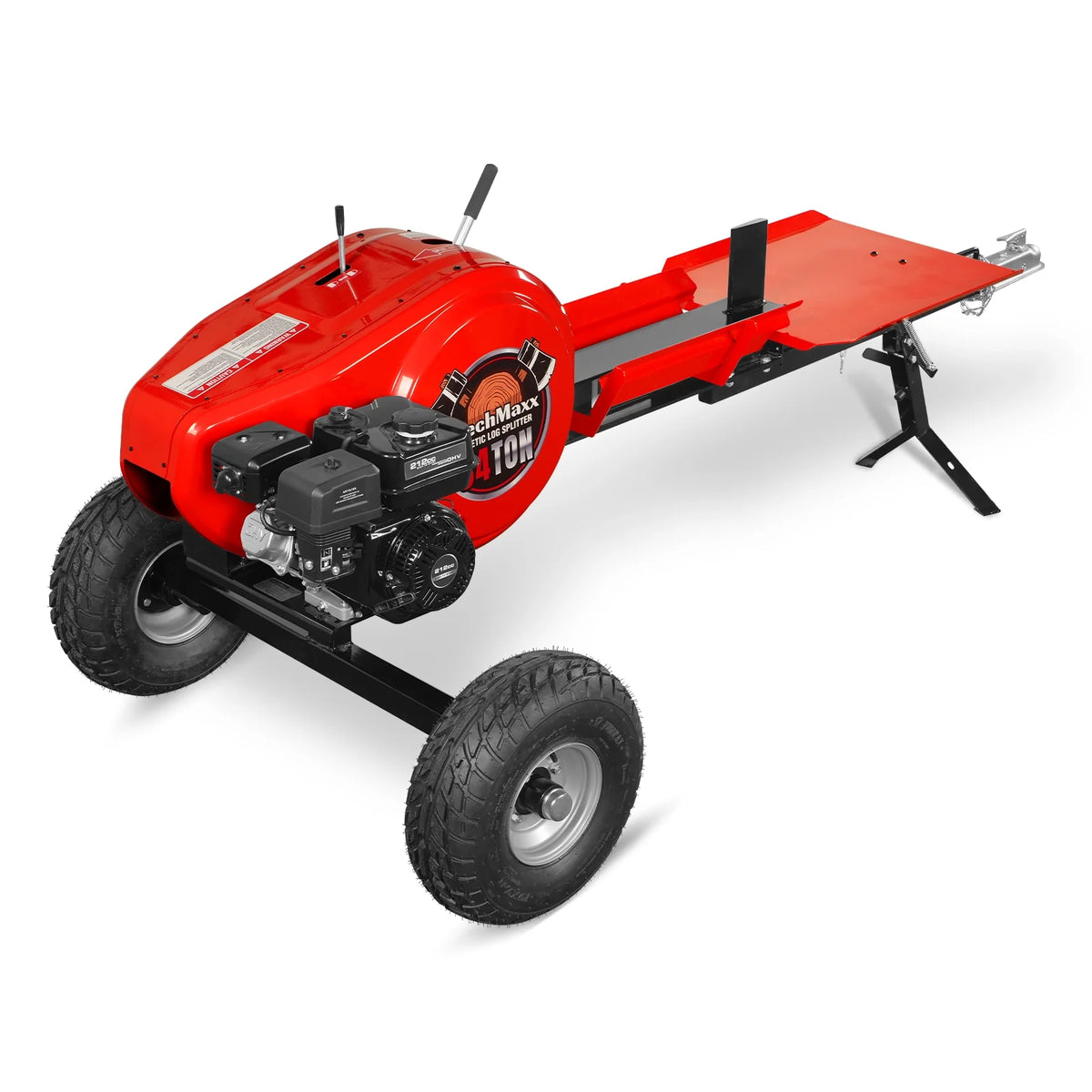

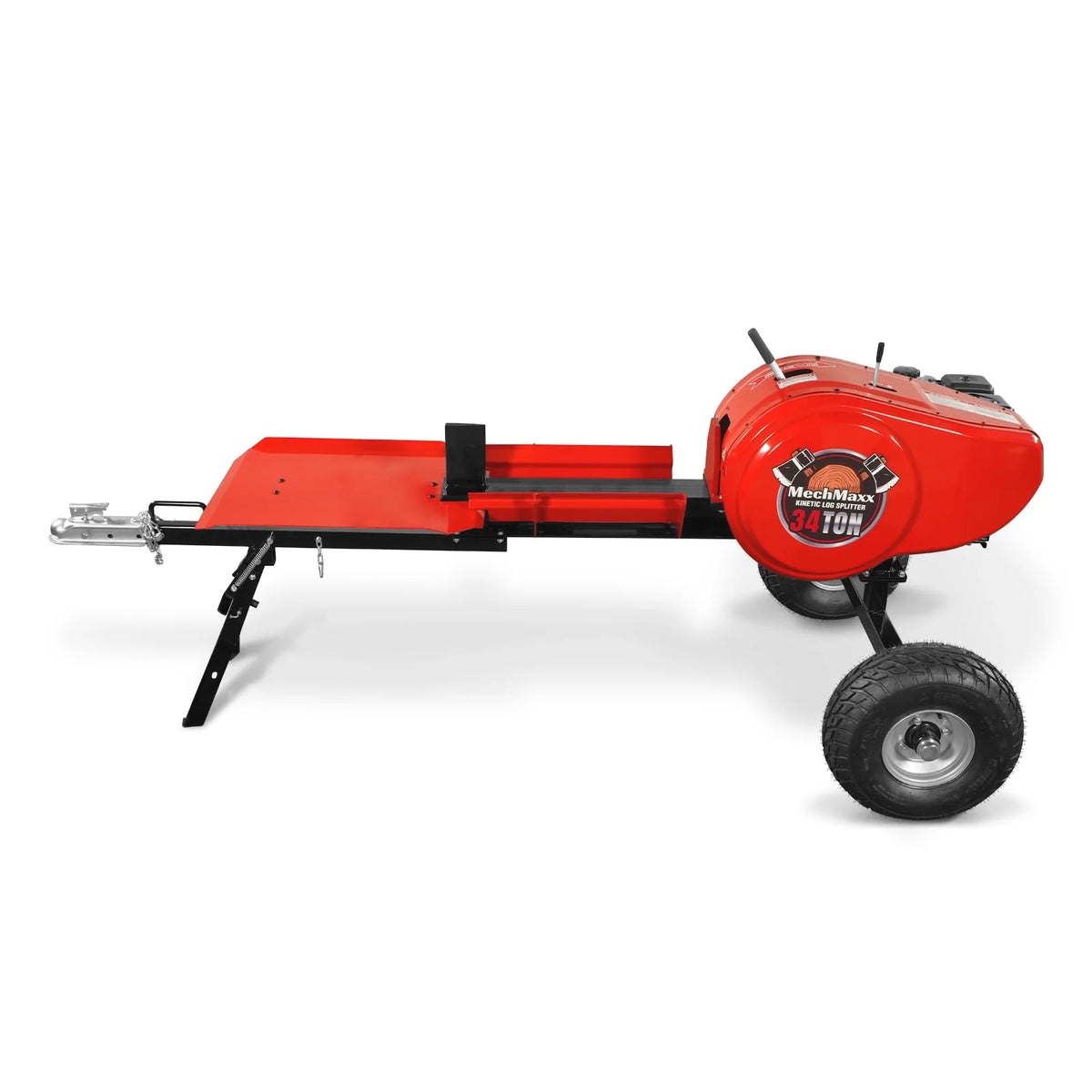

34 Ton Kinetic Log Splitter
| Splitting Force | 34 Ton |

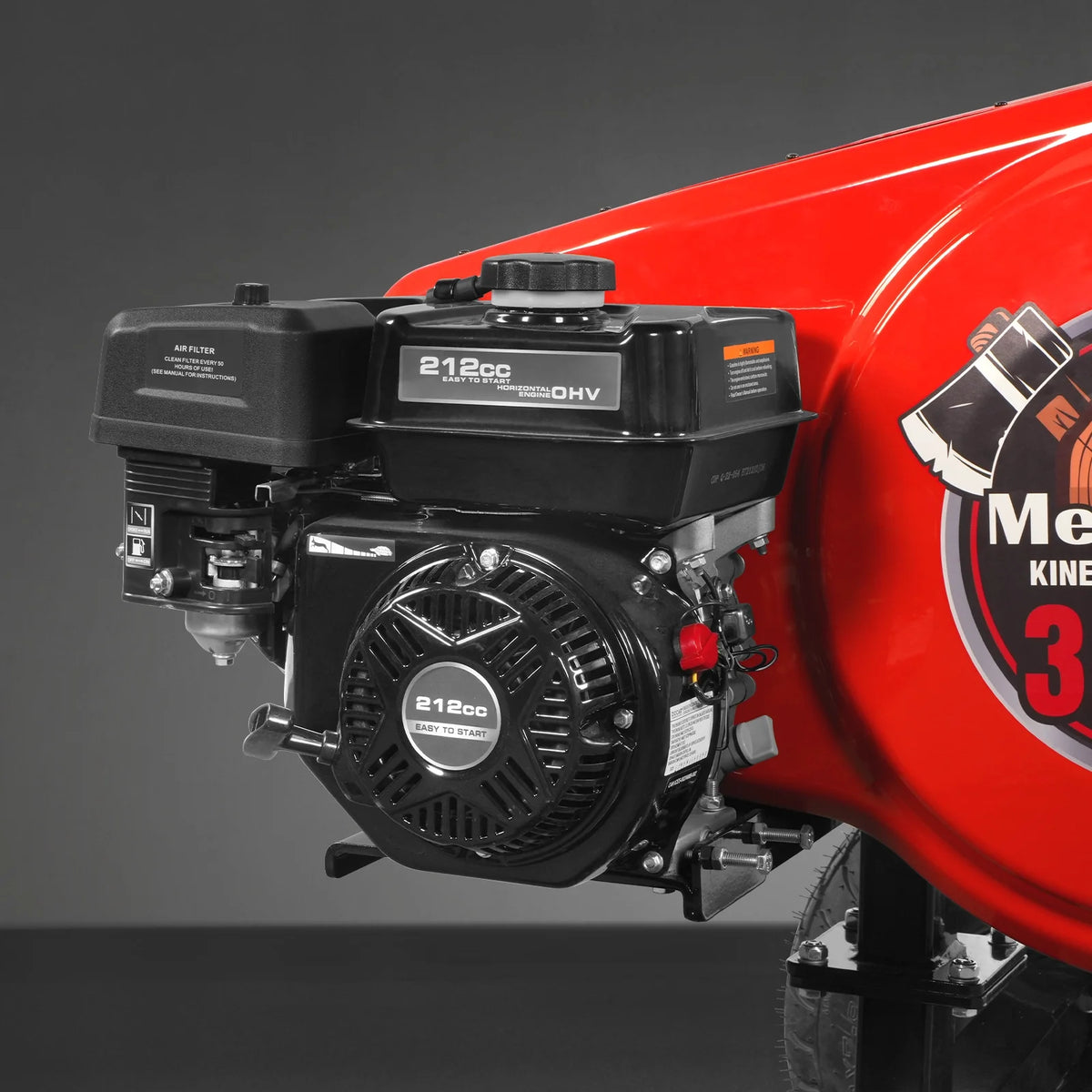

| Engine | DUCAR DH212 |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV |
| Displacement | 212 cc; 7 HP |
| Belt | A1524Li*1pcs |

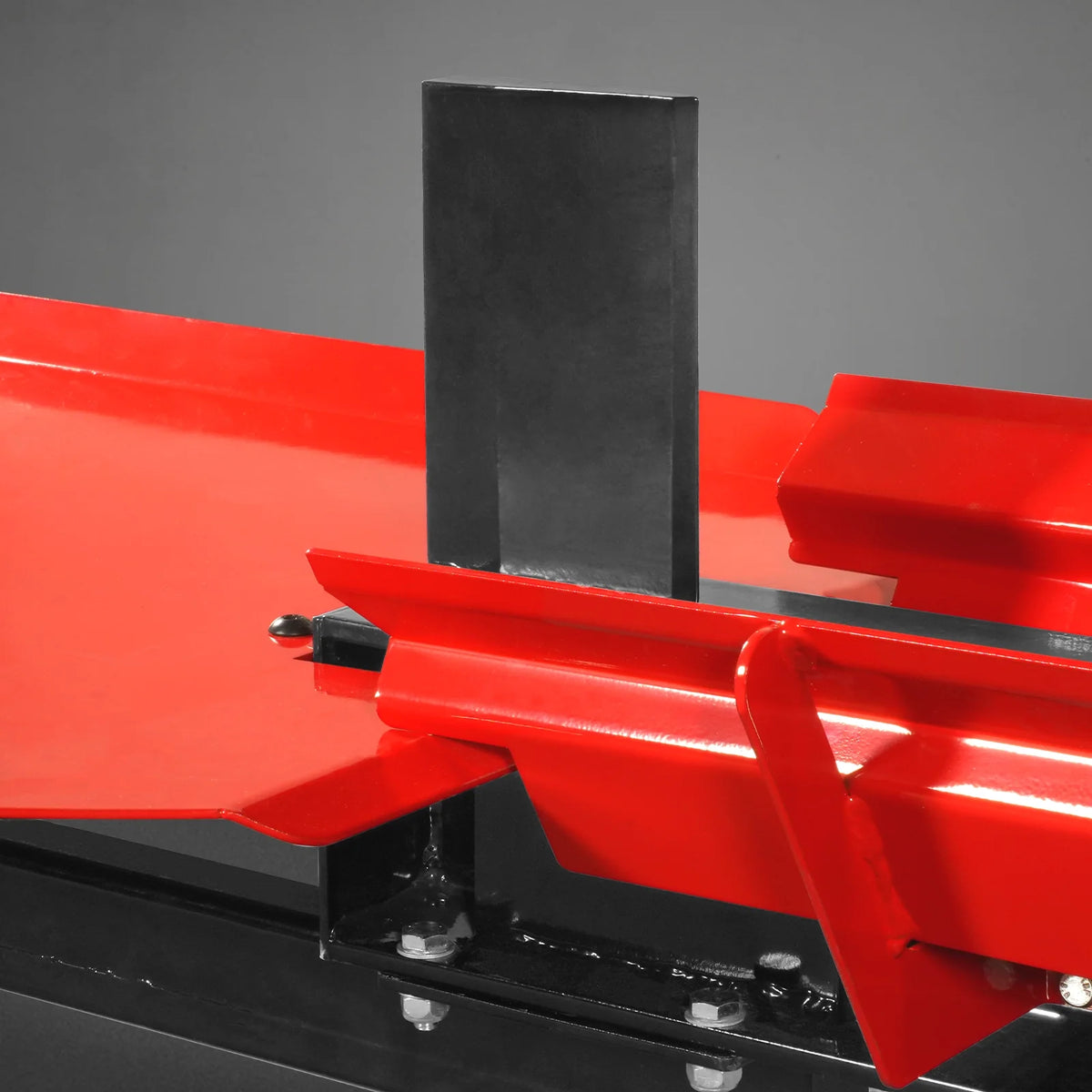

| Wedge Height | 7in |
| Log Length Capacity | 21.5in |
| Log Diameter Capacity | 28 in |
| Cycle Time | 3 seconds (Approximate） |
| Sprocket Rate | 1 : 8 |
| Flywheel Max RPM | 450 |
| Tire | 19 x 7.0-8 Tubeless |
| H-beam Height | 26in |
| Wheelbase | 87in |

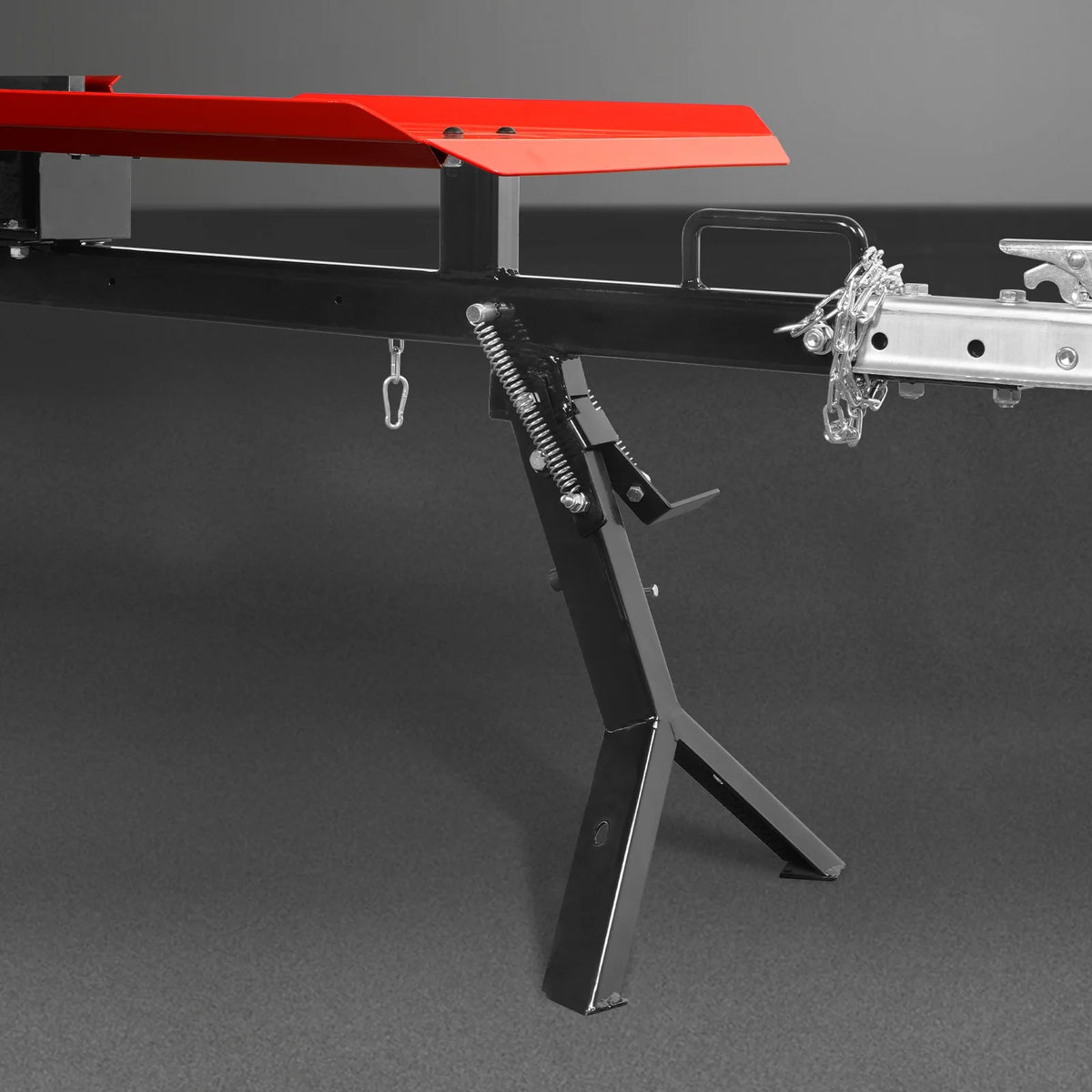

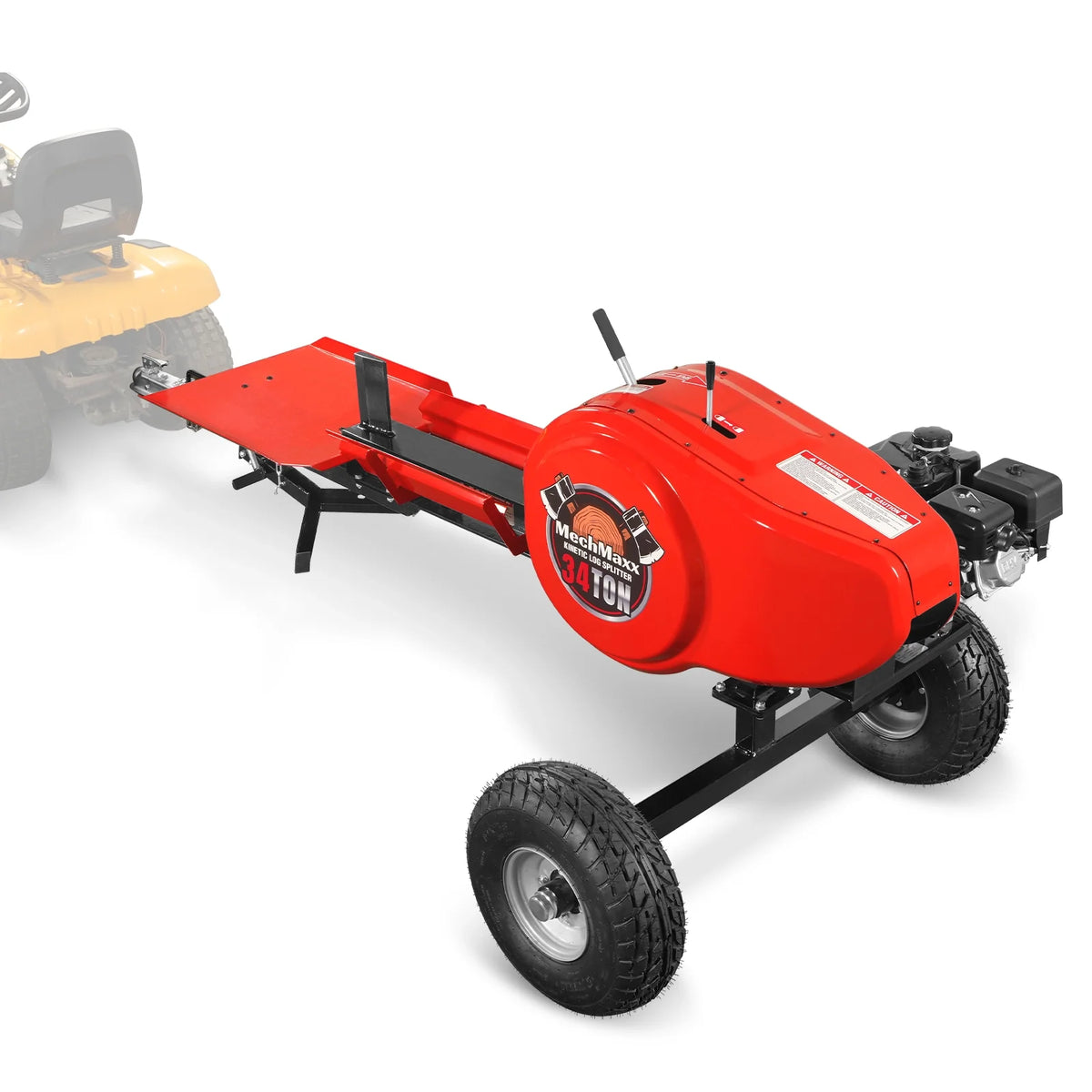

| Towing | Tow Bar With 2 in Coupler |
| Product Size (L*W*H) | 110*51*47in |
| Packing Size (L*W*H) | 68.5*29.5*27.5in |
| Weight (N.W./G.W.) | 545/595 lbs |
| Machine Warranty | 1 Year |
| Engine Warranty | 1 Year |

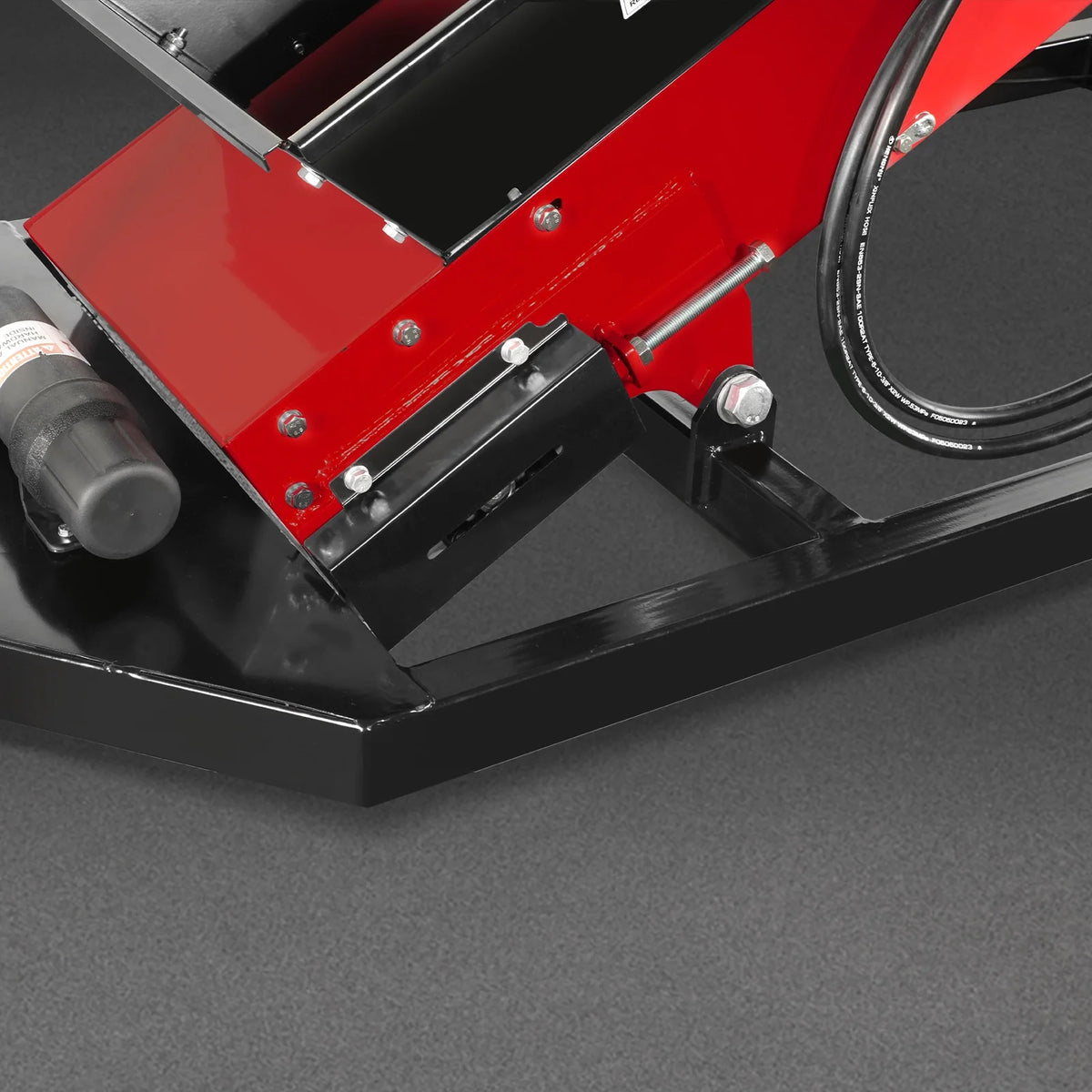

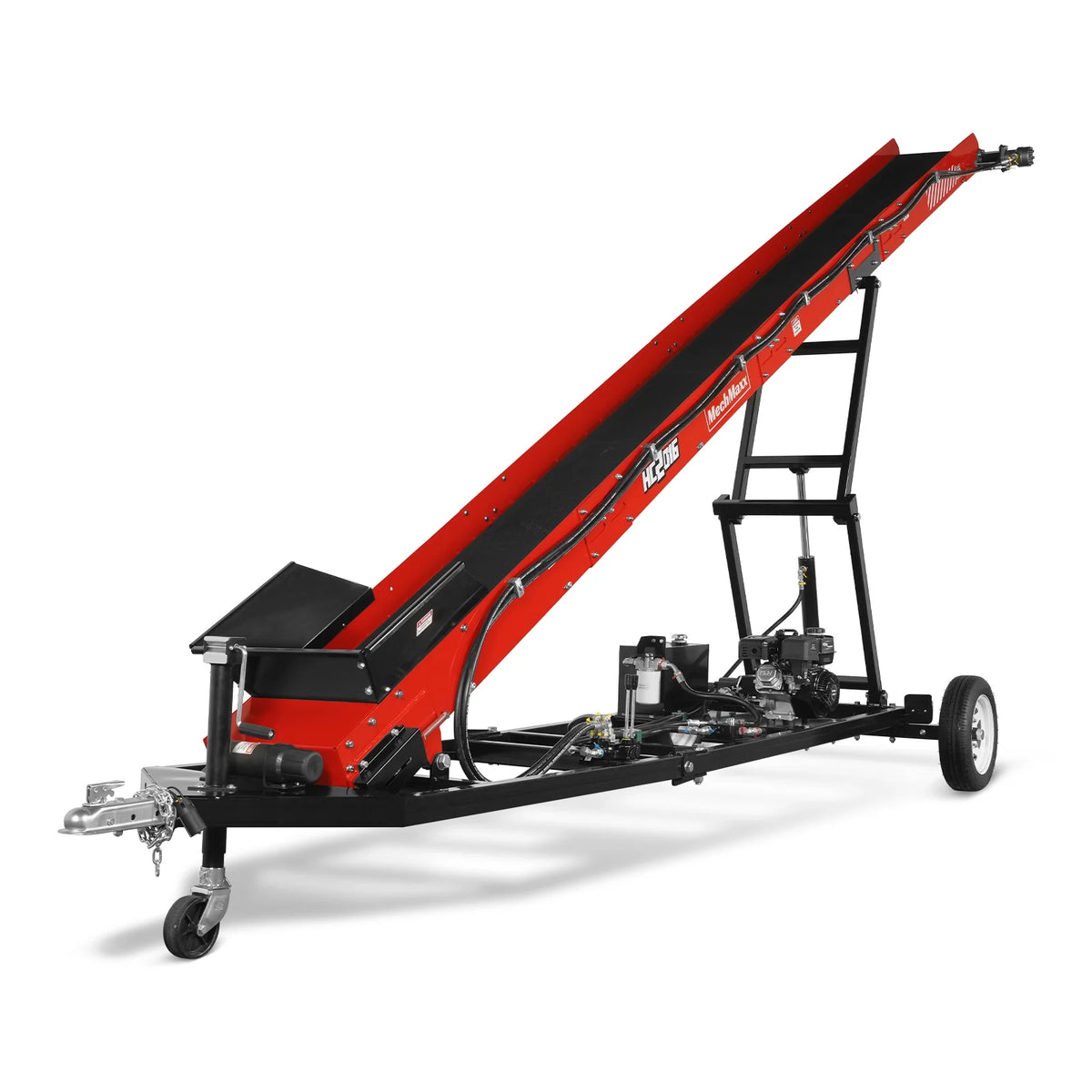

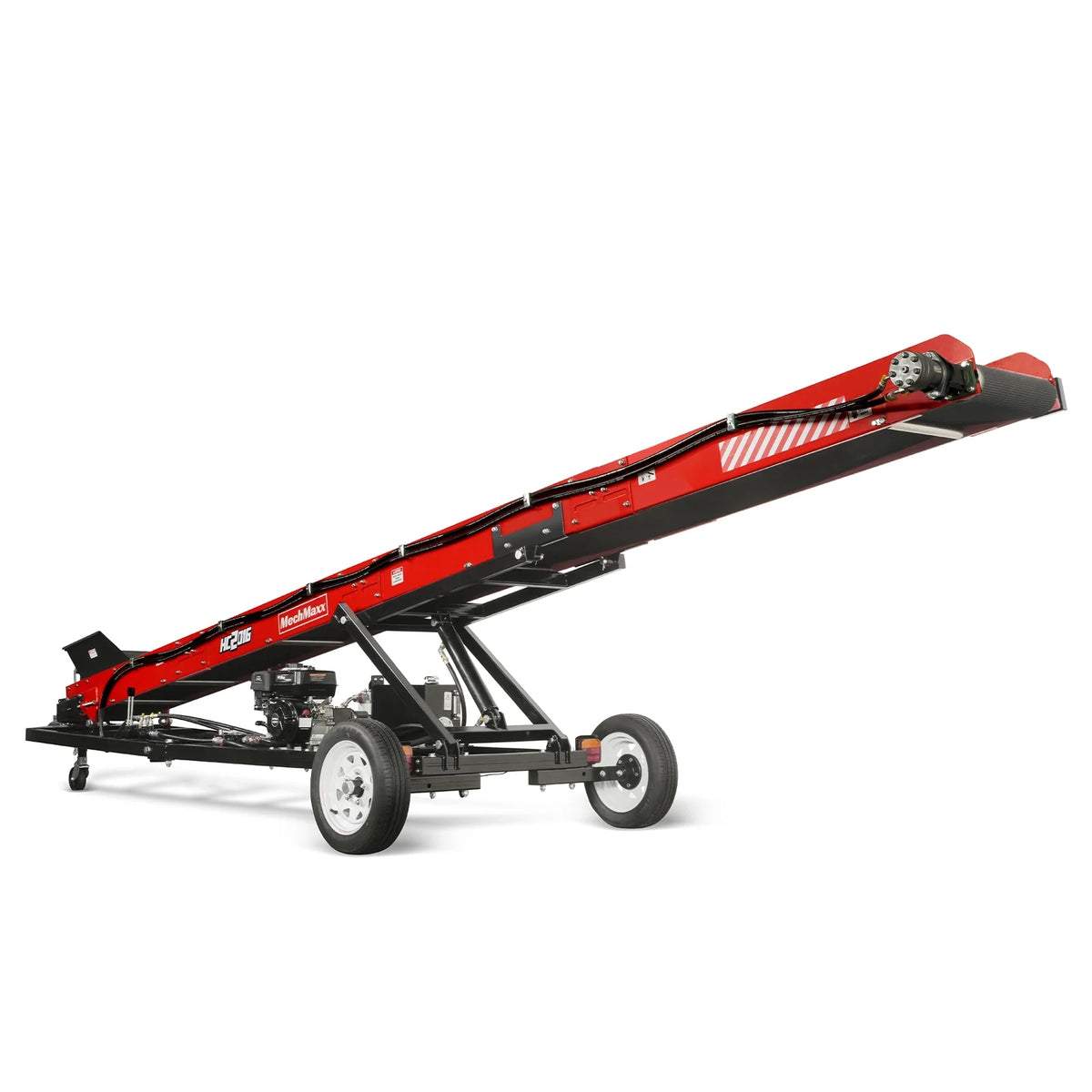

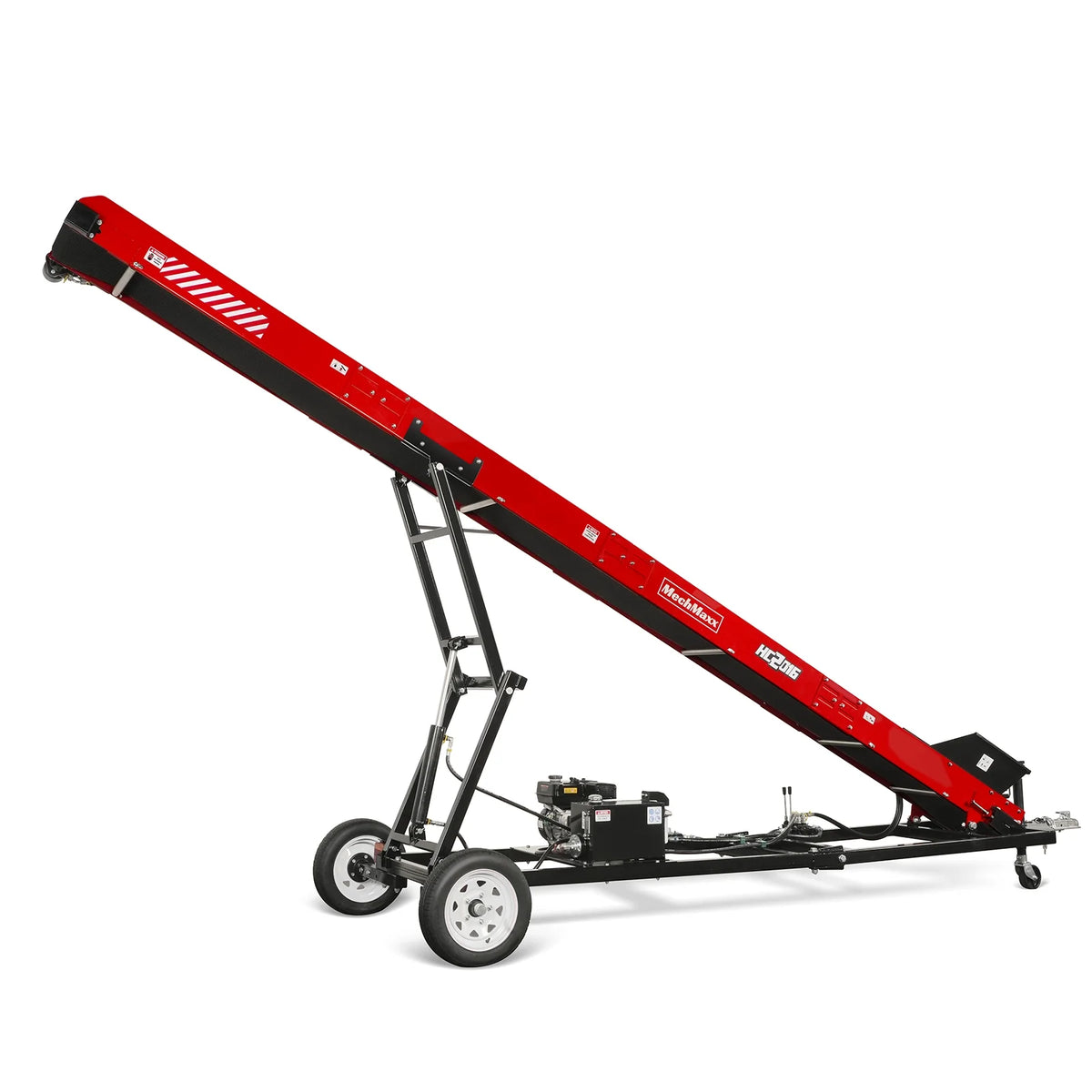

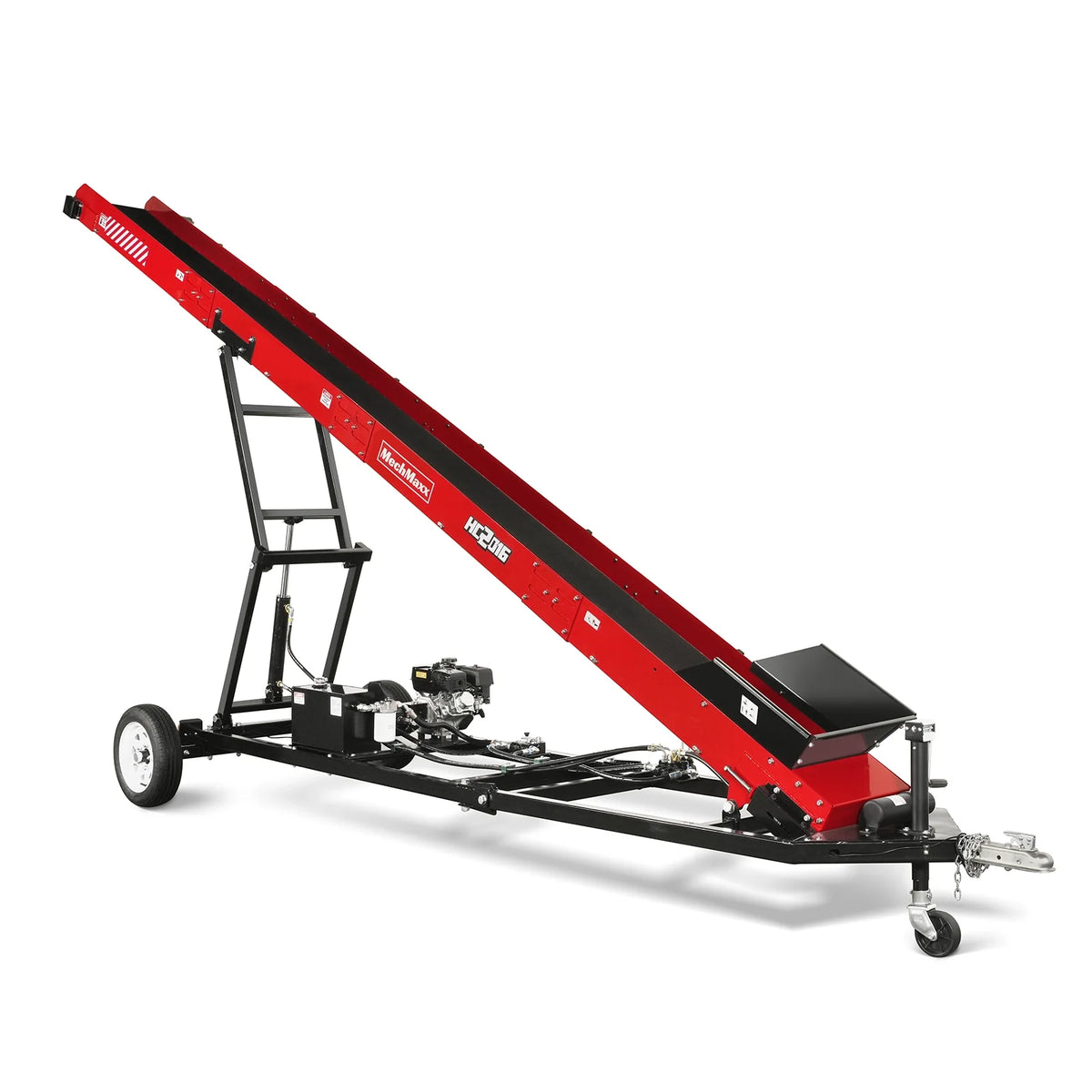

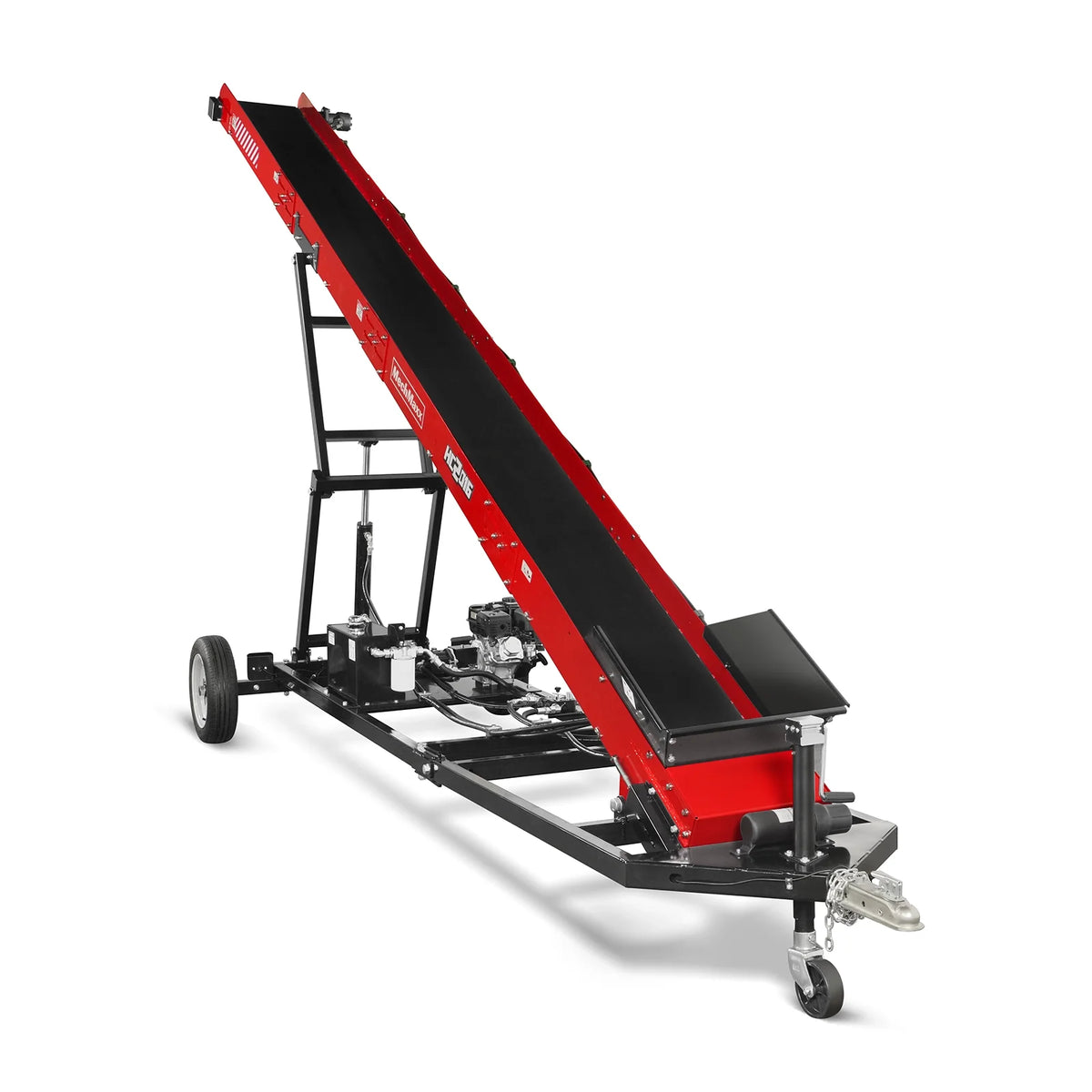

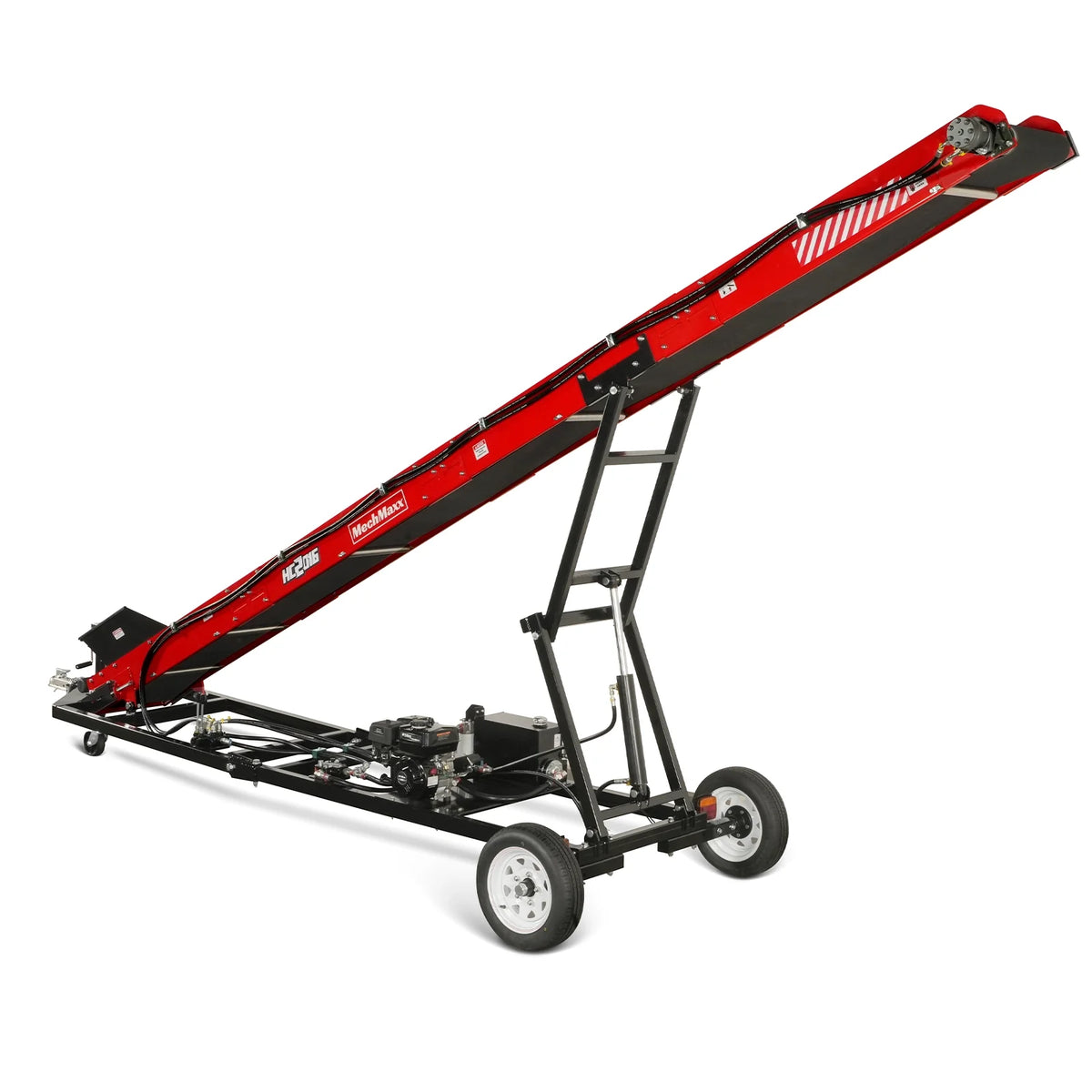

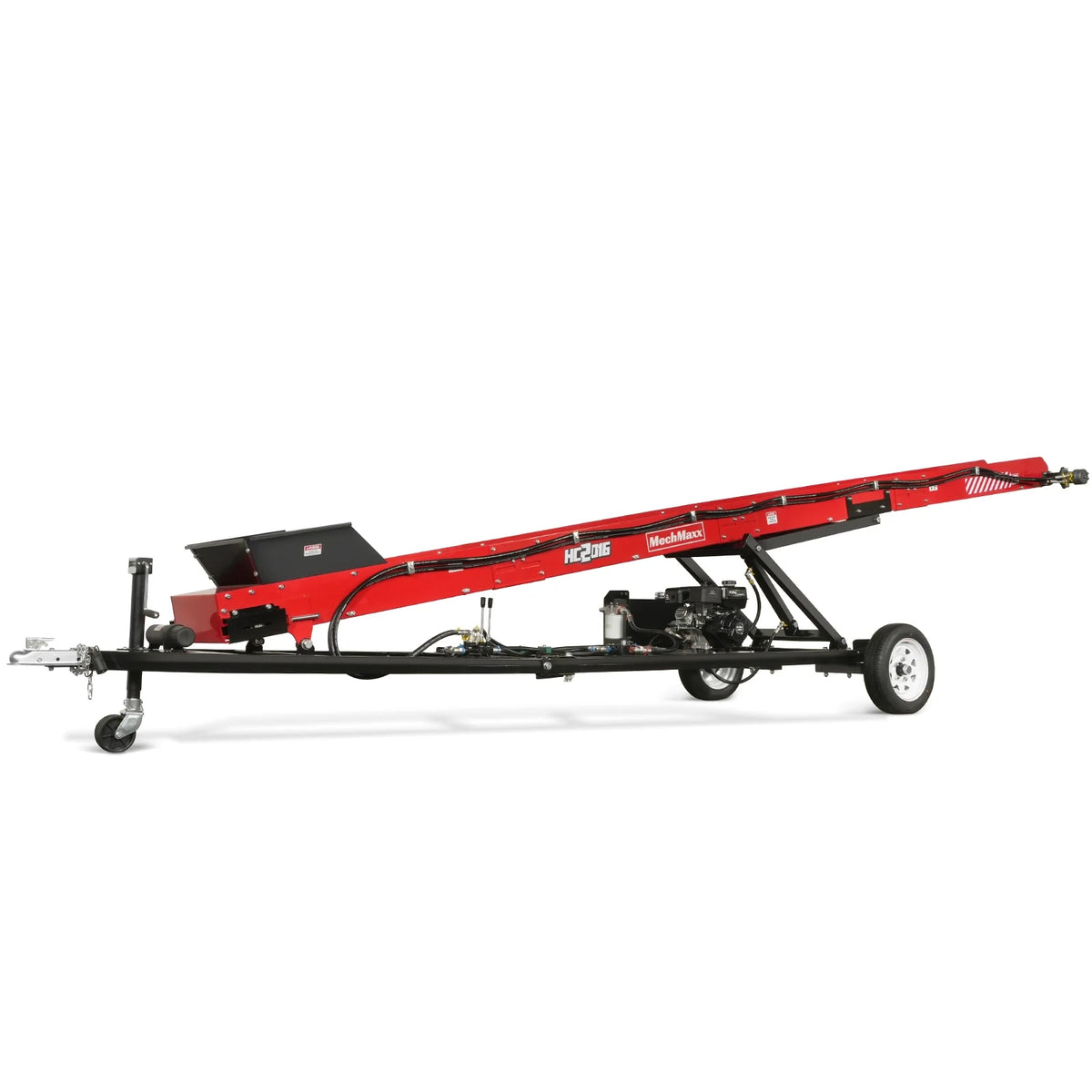

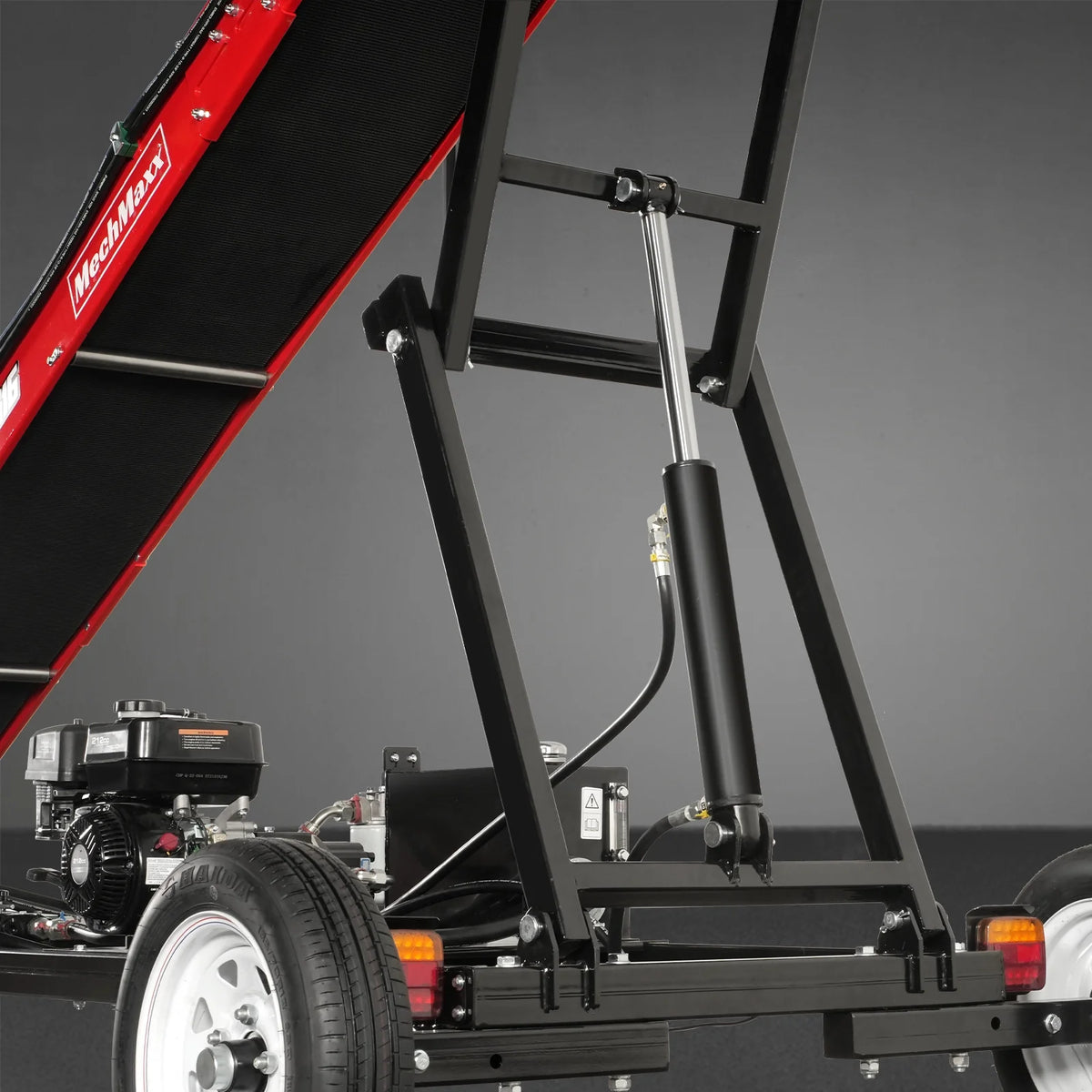

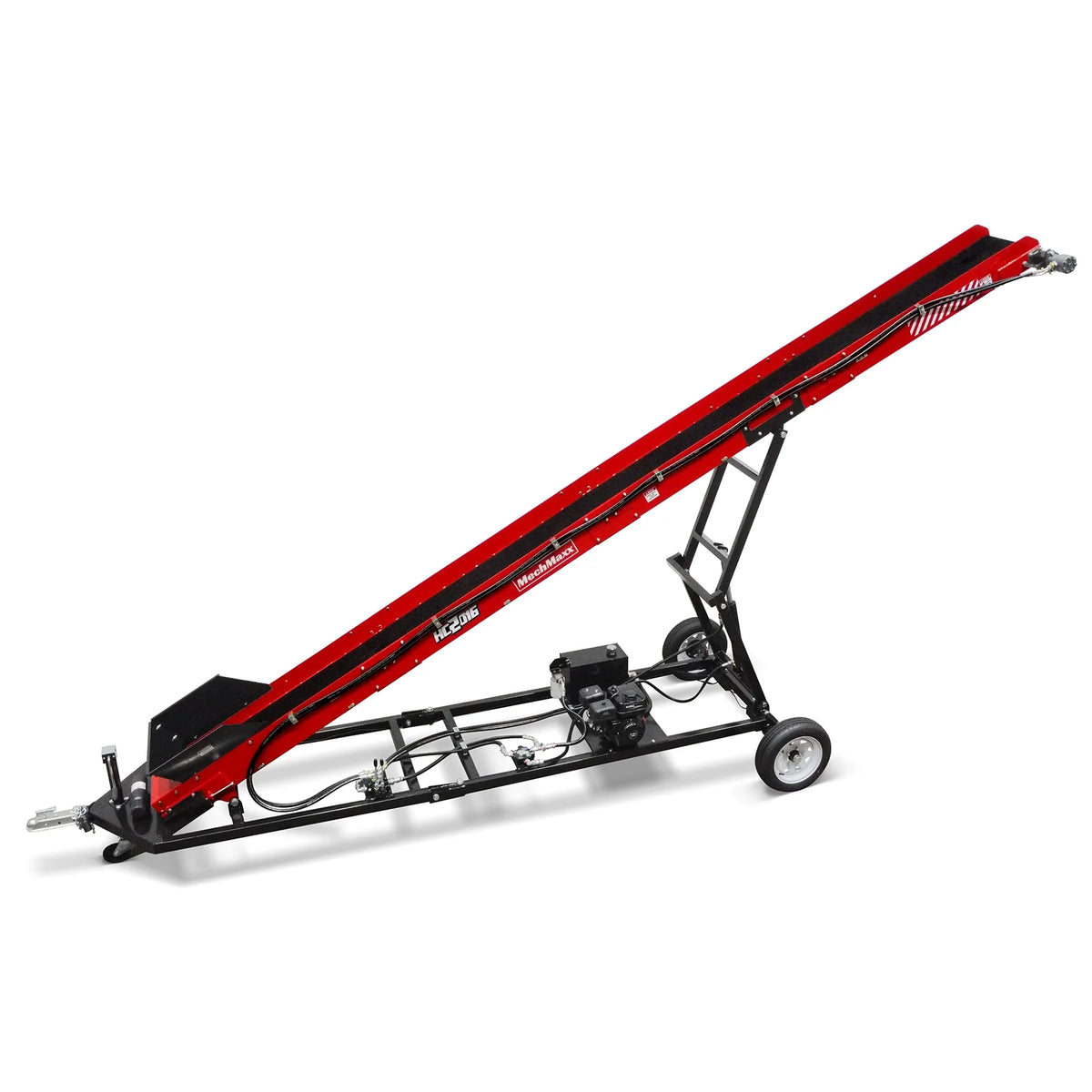

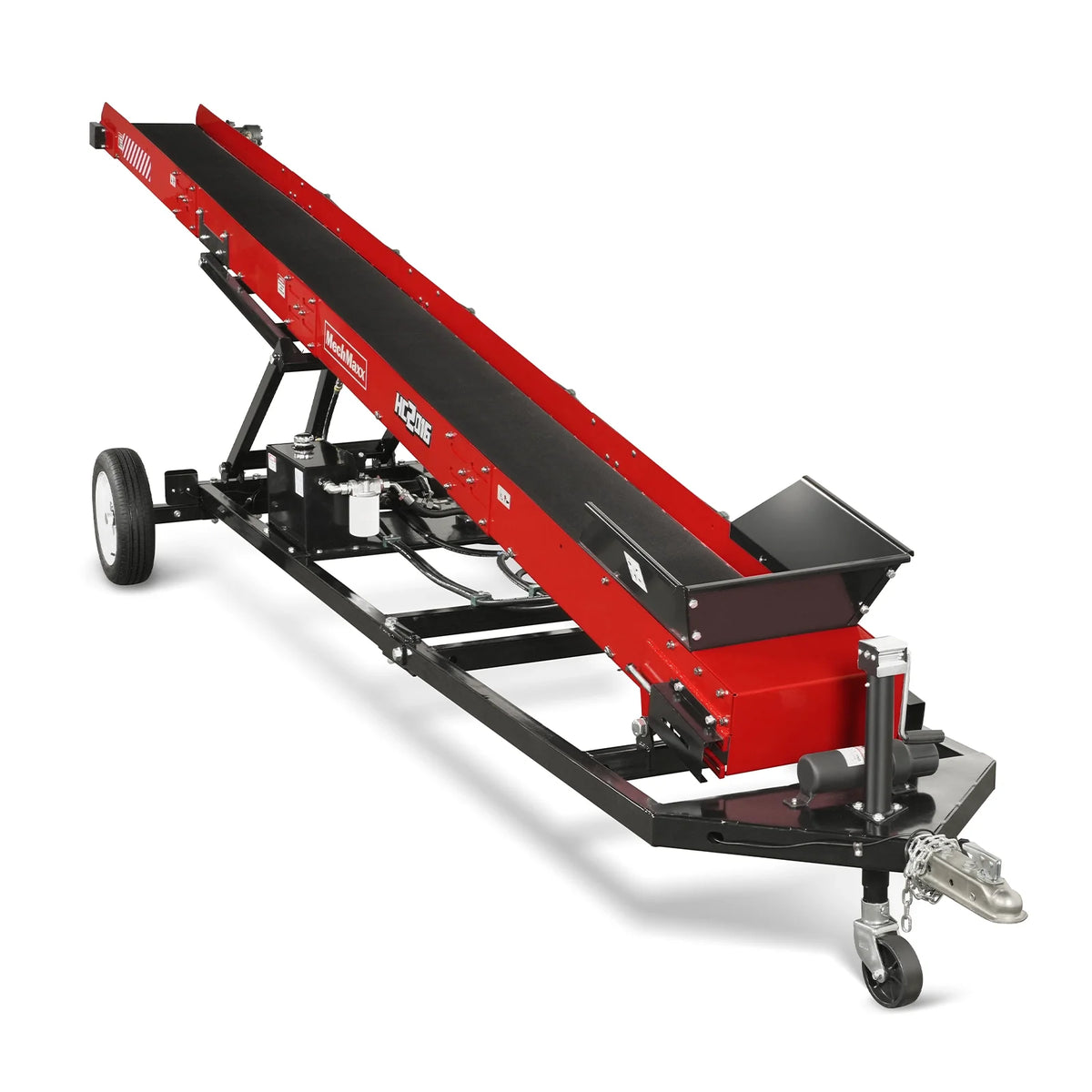

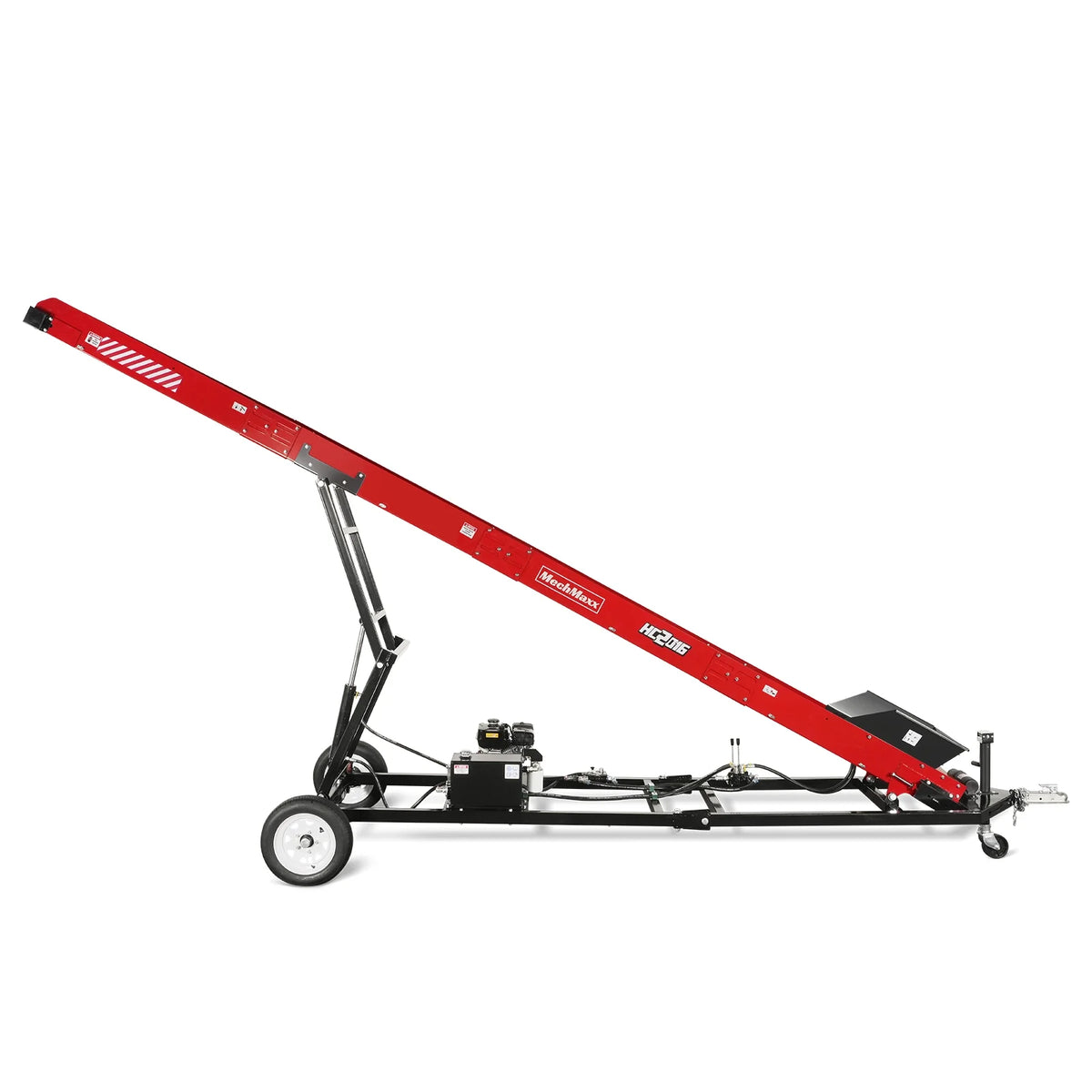

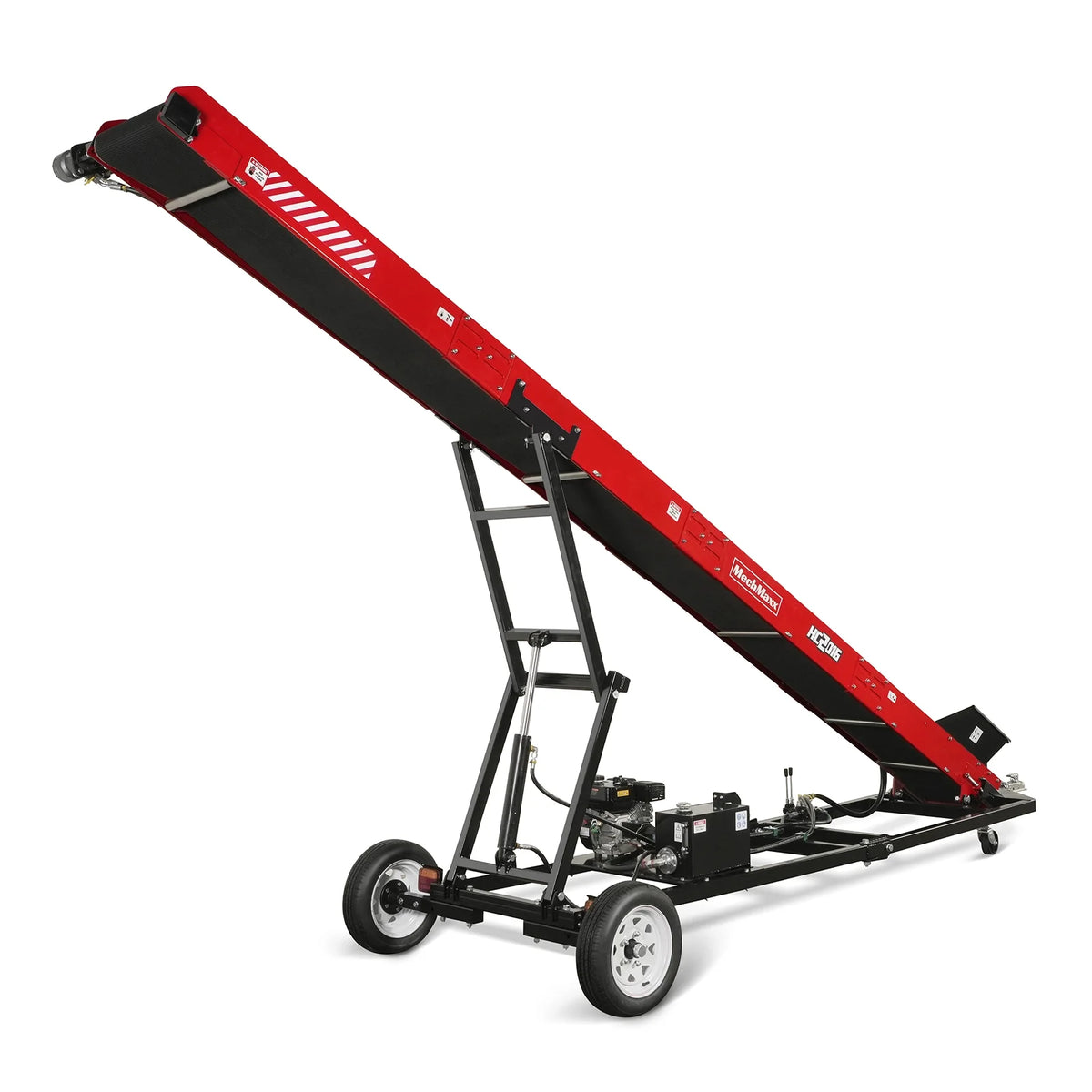

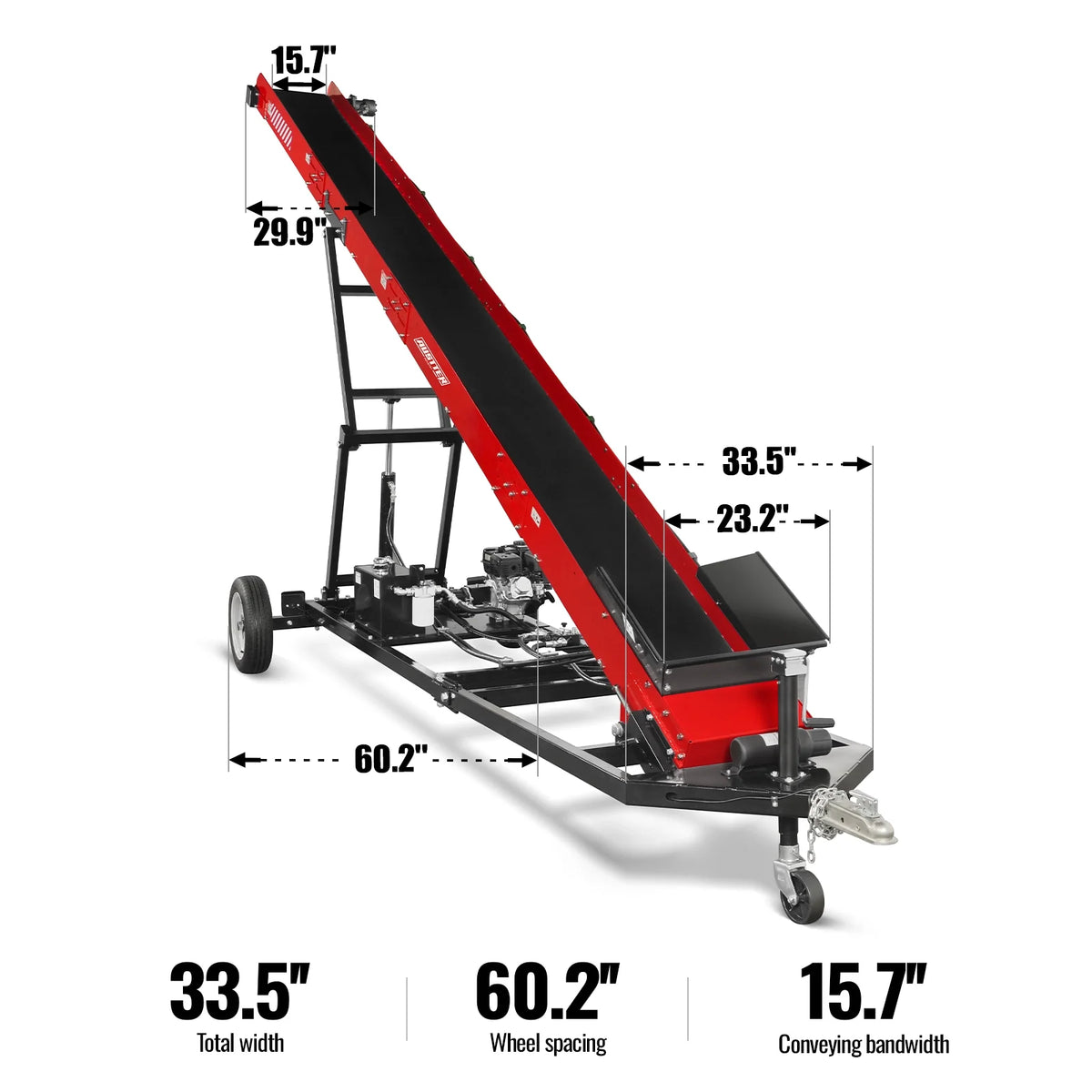

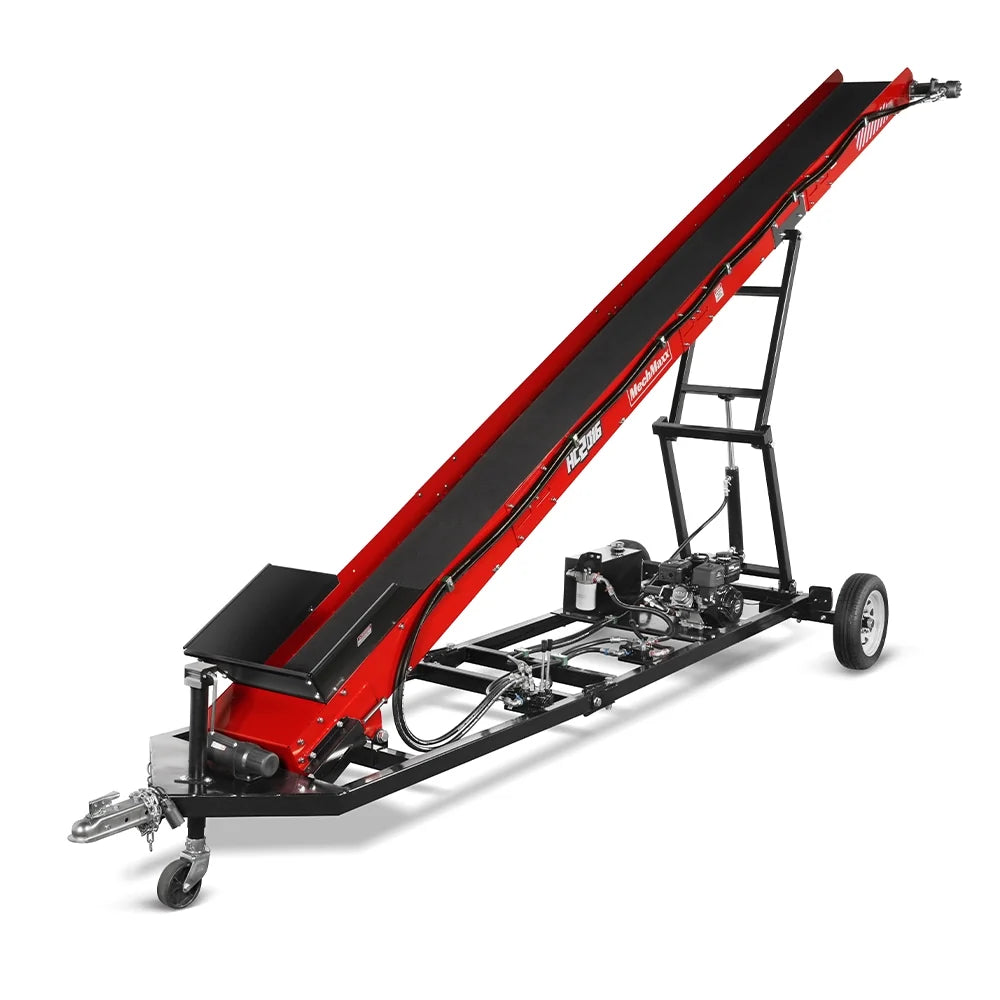

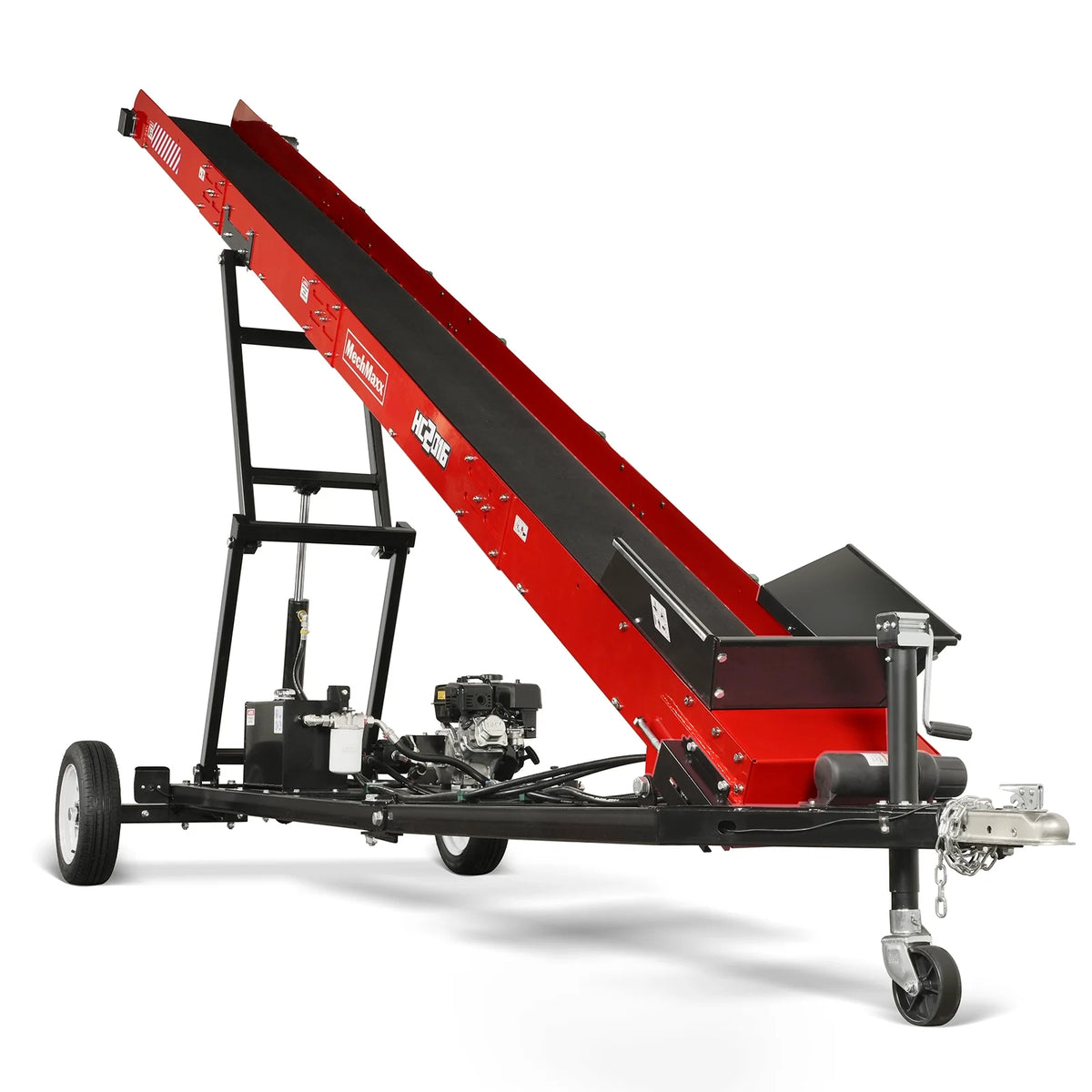

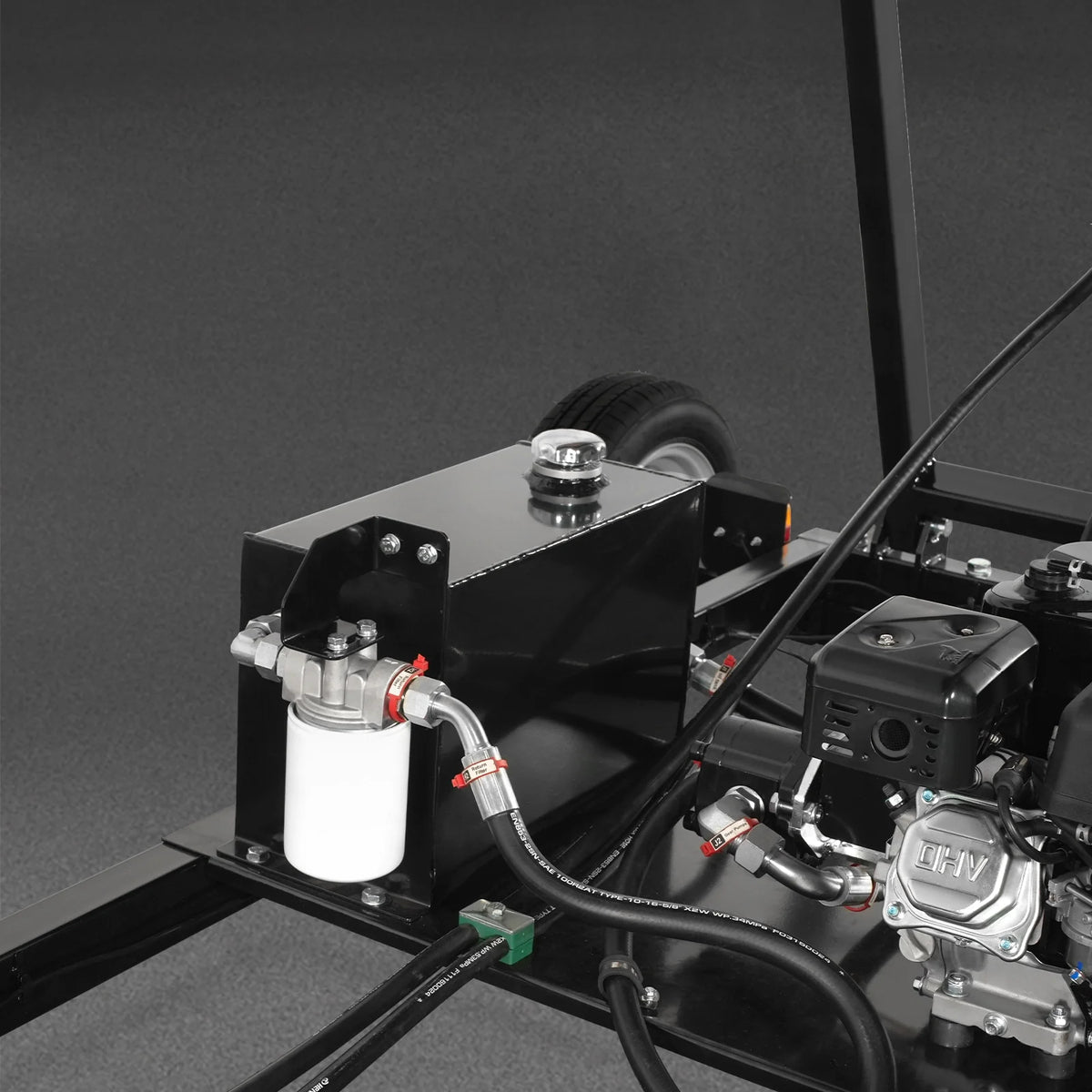

Firewood Conveyor

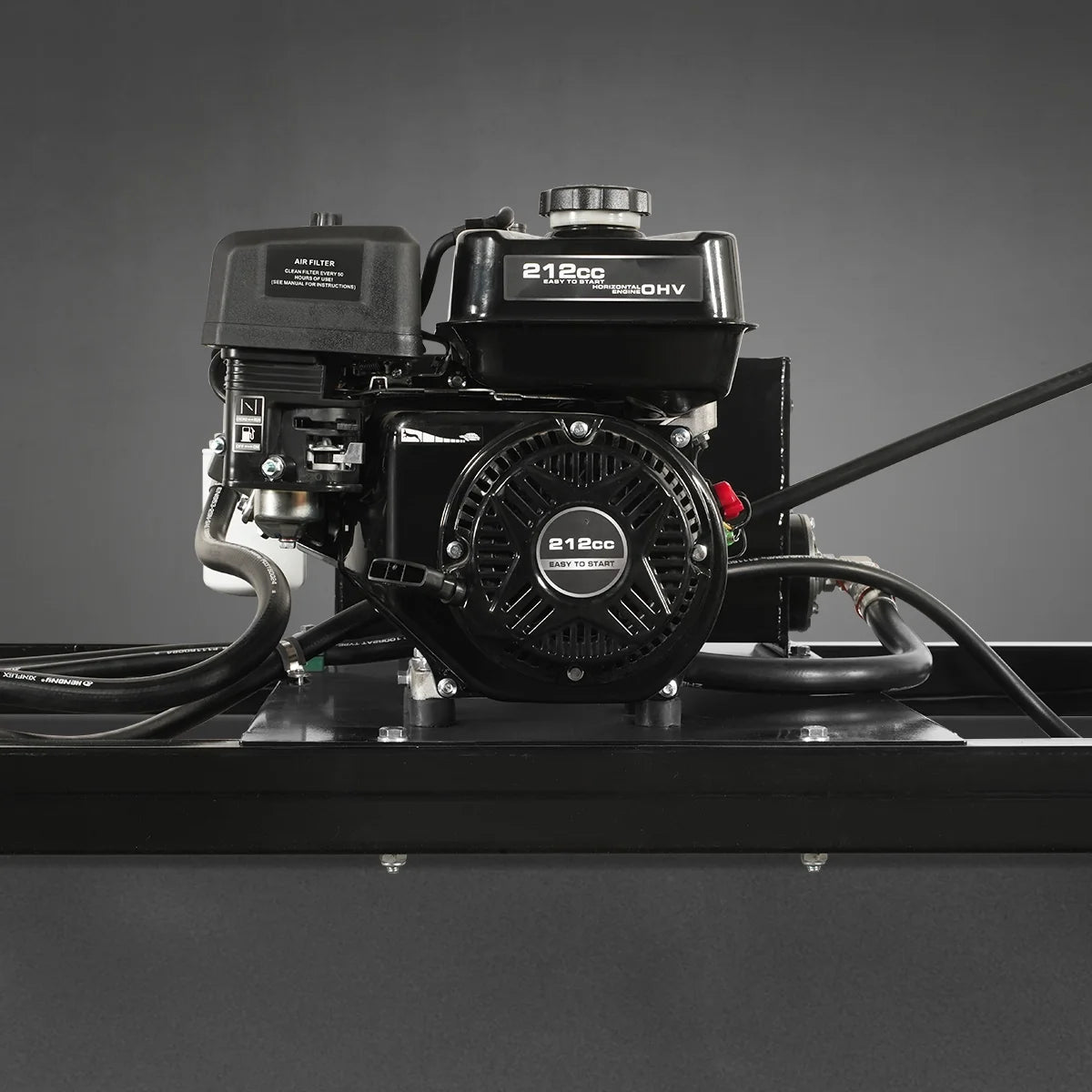

| Engine Power | DUCAR DH212 7hp |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV |

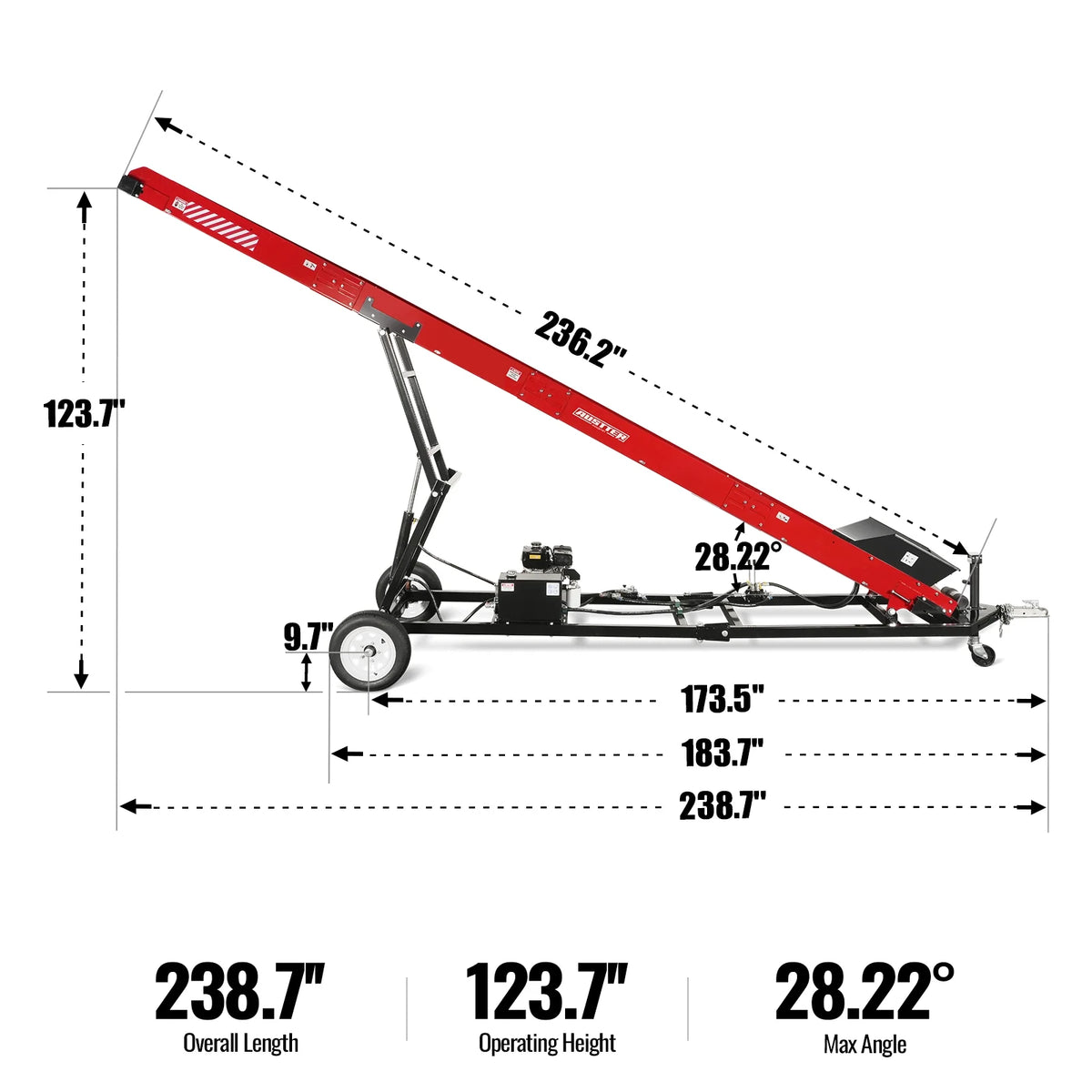

| Conveyor Belt length | 236 in |
| Conveyor Belt Wide | 16 in |
| Max Discharge Height | 124 in |
| Min Discharge Height | 60 in |

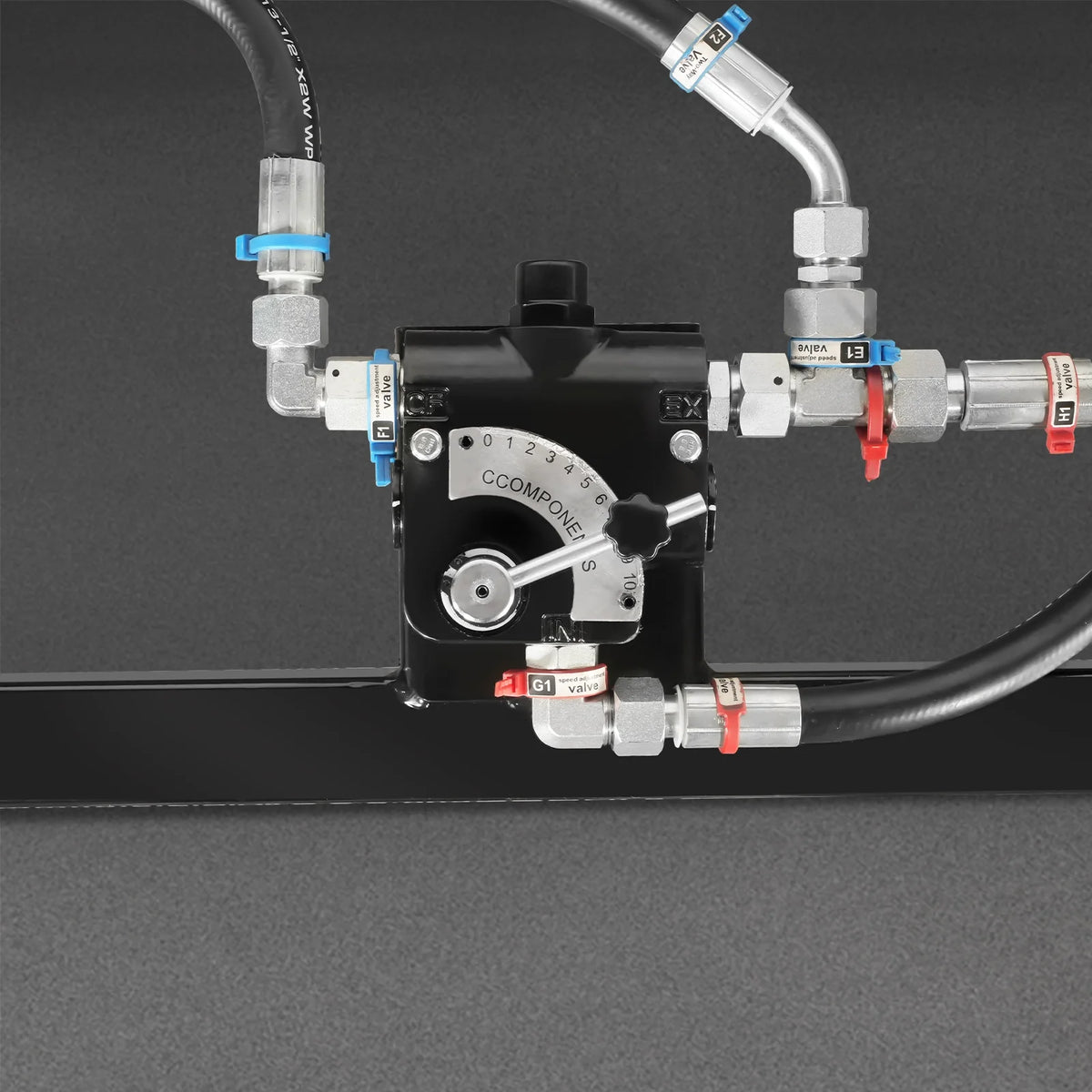

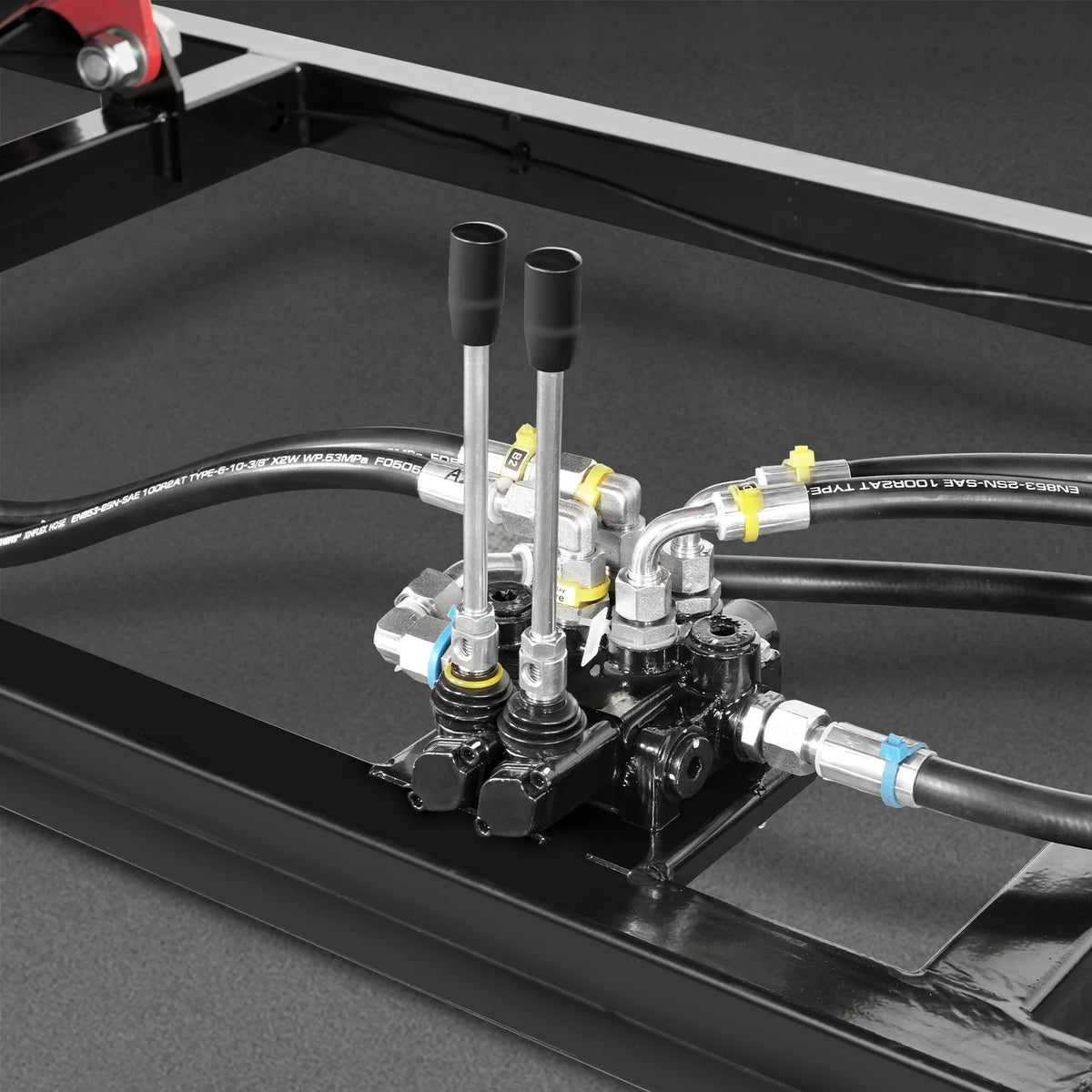

| Drive System | Hydraulic |
| Hydraulic Pump | 5.7 GPM Single Stage Pump |
| Hydraulic Fluid Type | AW-46 |

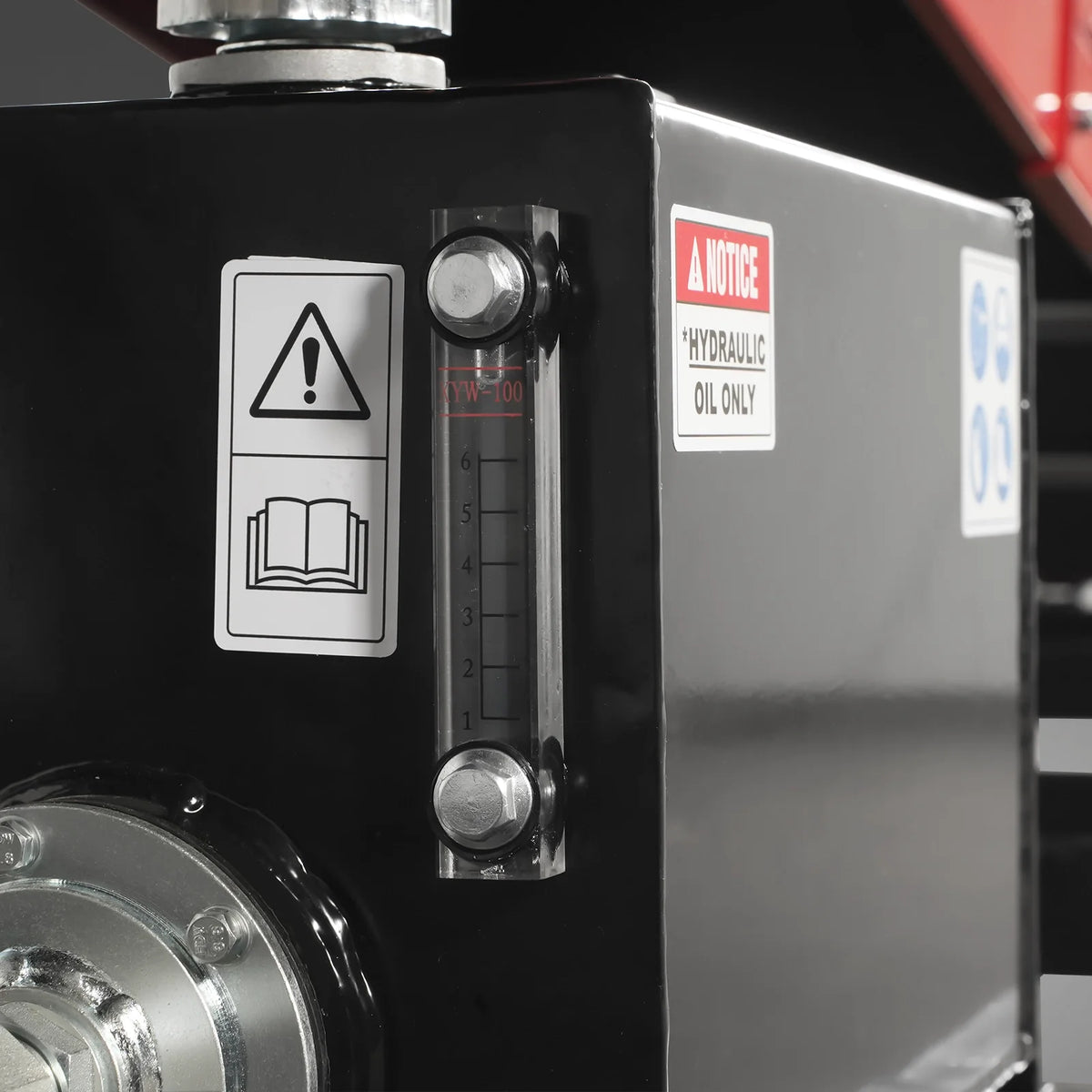

| Hydraulic Tank Capacity | 4.2 gal |
| Hydraulic Oil Filter Fineness | 10 micron |
| Towing | Tow Bar with 2 in Coupler |
| Maximum Towing Speed | 45 MPH |
| Tires Rims | 13 in |
| Tires | 19 in Radial (O. D.) |
| Overall Dimensions (LxWxH) | 261x60x63 in |
| Finish | Powder Coating |
| Package Method | Plywood Case |
| Packing Size (LxWxH) | 90x38x33 in |
| Warranty | 1year |
| Weight (N.W./G.W.) |
992/1124 lbs |
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
Technical specifications
| Model | 34 Ton Kinetic Log Splitter & Firewood Conveyor Bundle, KT34 & HC2016 |
|---|---|
| SKU | 150418 |
| Weight | 269.887 kg |
| Full spec sheet | Detailed spec sheet on request |
