CAEL LST-JS450 Alignment Scissor Lift – 9,000 lb (4,000 kg) Capacity

Shoptracteur · Implement & attachment

CAEL LST-JS450 Alignment Scissor Lift – 9,000 lb (4,000 kg) Capacity

$11,524.60VAT included. Shipping calculated at checkout.

Bank transfer acceptedOrder, make the transfer, then email the proof to shoptracteur@gmail.com. We confirm receipt of payment and ship your order. Learn more
Secure paymentEncrypted Shopify checkout
Delivery in 9 to 14 business daysEU: €10, or €500 by freight · United States: €14, or €1,000 by freight
5-year warranty5-year manufacturer warranty · statutory warranty included
14 days to change your mindStatutory right of withdrawal for consumers

In detail

Everything you need to know.

Description

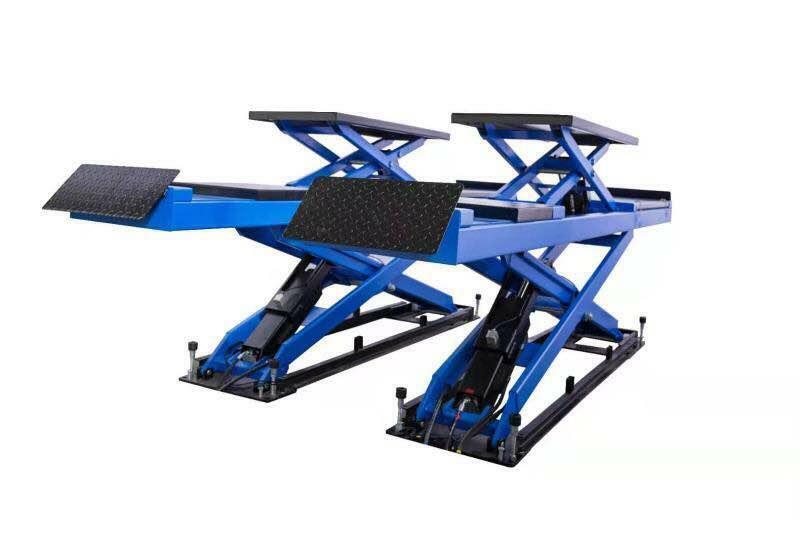

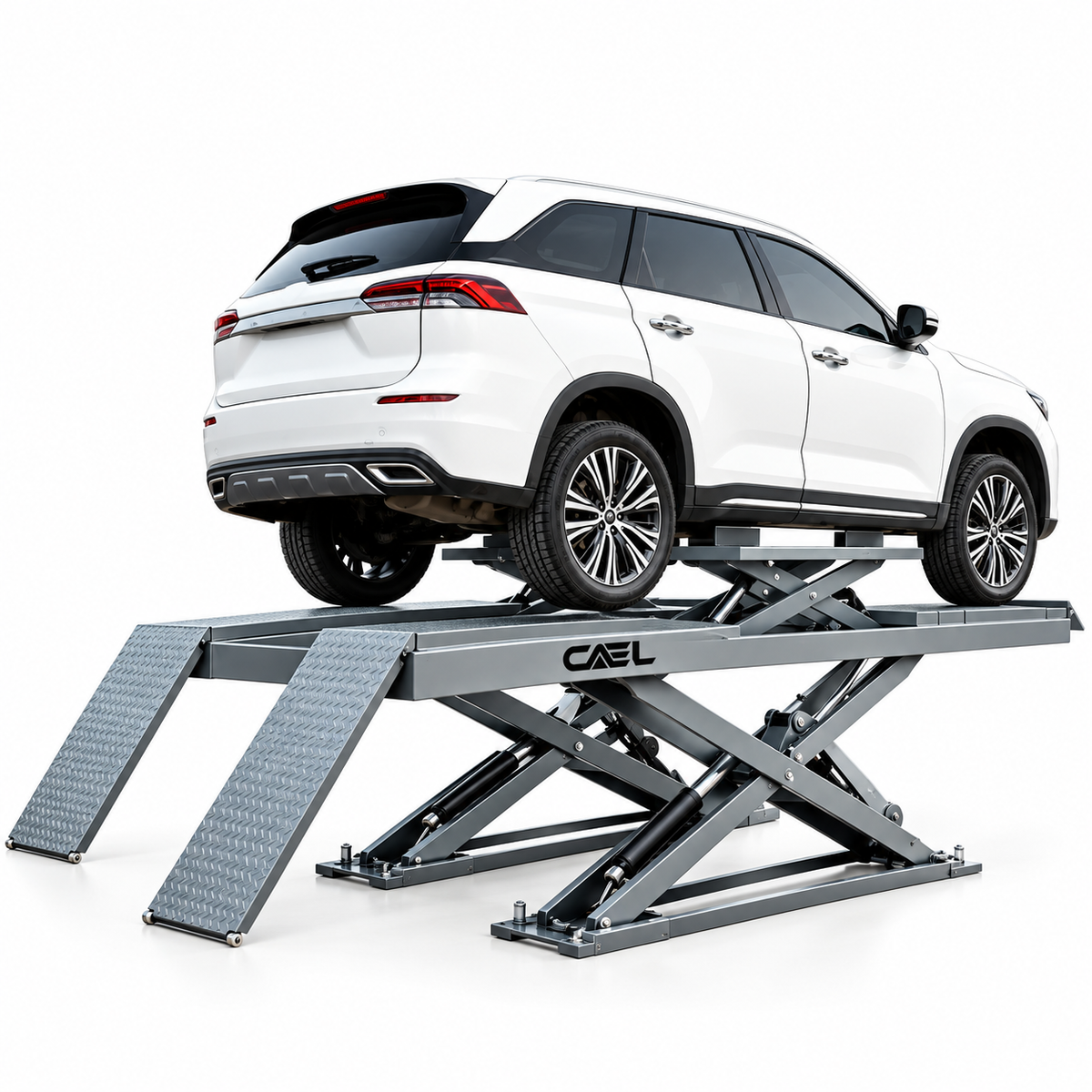

The CAEL LST-JS450 is an alignment scissor lift for wheel alignment, tire service, suspension work and general vehicle maintenance, with a 9,000 lb (4,000 kg) capacity suited to passenger cars, SUVs and light-duty trucks.

Key Features

9,000 lb (4,000 kg) capacity
In-ground or above-ground installation, with optional drive-on ramps
Long sliding plates for accurate rear wheel movement during alignment
Adjustable turntable positions for different wheelbases and vehicle sizes
Pneumatic safety locking system
High-precision flat runways for accurate wheel alignment
Extensible 2nd lifting platform for wheel-free lifting during brake and suspension service
Self-lubricated bushings and bearings for reduced maintenance
Heavy-duty construction for daily commercial workshop use

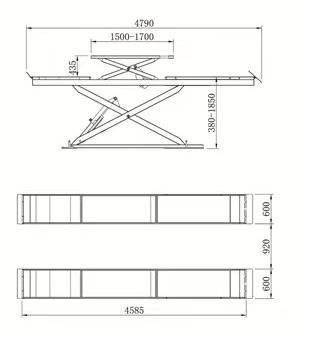

Specifications

Model	LST-JS450
Maximum capacity	4,000 kg (8,818 lb / 9,000 lb class)
Maximum lifting height	73 in (1,854 mm / 6 ft 1 in)
Minimum height	15 in (381 mm)
Jack length	59–67 in (1,499–1,702 mm)
Jack lift height	17 in (432 mm)
Lifting time	Approx. 60 seconds
Platform length	188.5 in (4,788 mm / 15 ft 8.5 in)
Platform width	23.6 in (599 mm)
Motor power	220V / 2.2 kW
Rated oil pressure	20 MPa
Air pressure	0.6 – 0.8 MPa

Applications

Wheel alignment centers
Tire and suspension shops
General repair garages
Dealership service bays
Commercial maintenance facilities

Technical specifications

Model	CAEL LST-JS450 Alignment Scissor Lift – 9,000 lb
Full spec sheet	Detailed spec sheet on request

Delivery & setup

Machines are delivered by freight carrier by appointment: 9 business days for France and the EU, 14 business days for the United States. Orders under €10,000: €10 (EU) or €14 (United States); from €10,000: €500 (EU) or €1,000 (United States). Inspect the machine in the driver's presence and note any reservations on the delivery slip.

Payment

Encrypted payment through Shopify checkout; available payment methods are shown at checkout. For multiple machines or a business purchase, request a quote.

Warranty & returns

2-year statutory warranty of conformity and a 14-day right of withdrawal for consumers. 5-year manufacturer warranty. To return a bulky machine, please contact us first: we'll tell you the cost and arrange the pickup.
