CAEL-FST60 Weighbridge Truck Scale – 60 Ton, 56 ft Platform

$37,991.36Excluding VAT. Shipping calculated at checkout.
Request a Quote
Freight delivery or multiple items?
✓ Free quote including delivery – reply within 48 hours
✓ Bundle pricing and advice on compatibility with your tractor
✓ Questions? Contact us
Ask a question about this model
  • Bank transfer acceptedOrder, make the transfer, then email the proof to shoptracteur@gmail.com. We confirm receipt of payment and ship your order. Learn more
  • Secure paymentEncrypted Shopify checkout
  • Delivery in 9 to 14 business daysEU: €10, or €500 by freight · United States: €14, or €1,000 by freight
  • 5-year warranty5-year manufacturer warranty · statutory warranty included
  • 14 days to change your mindStatutory right of withdrawal for consumers
In detail

Everything you need to know.

Description

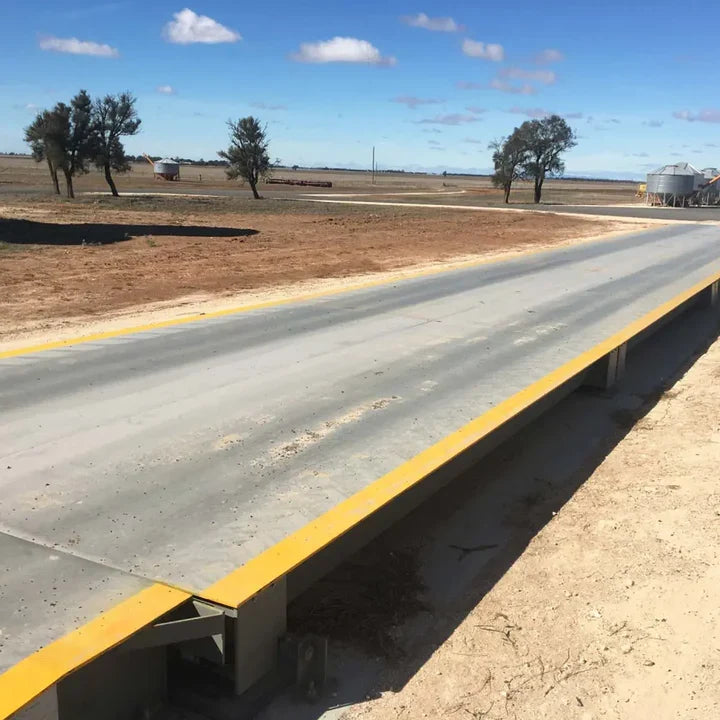

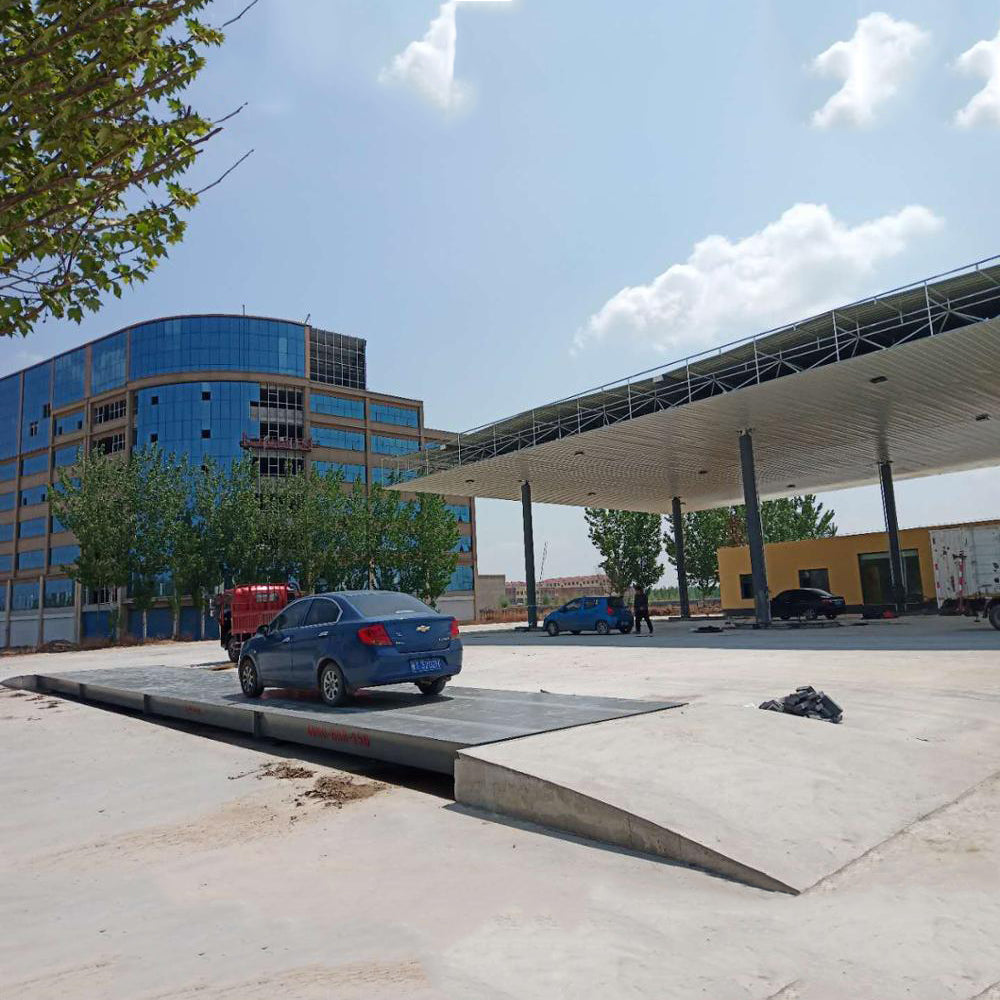

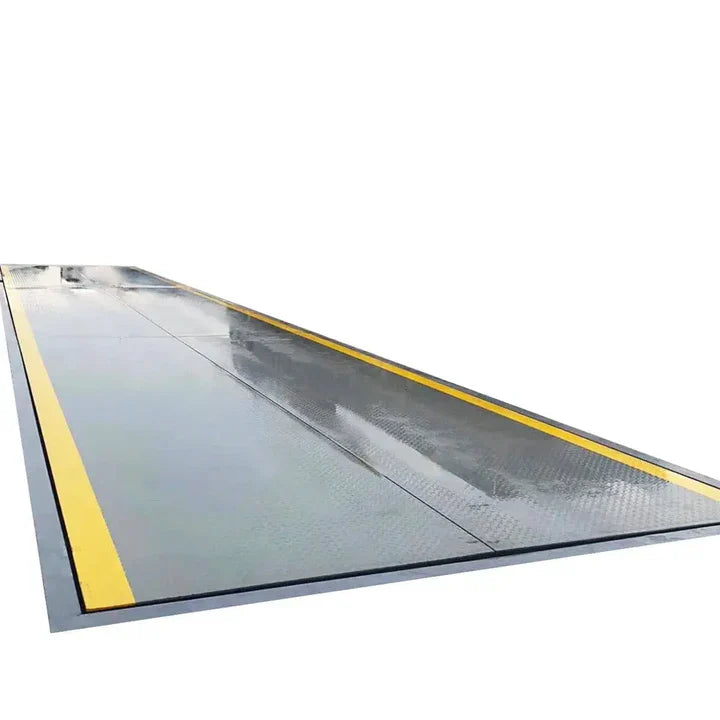

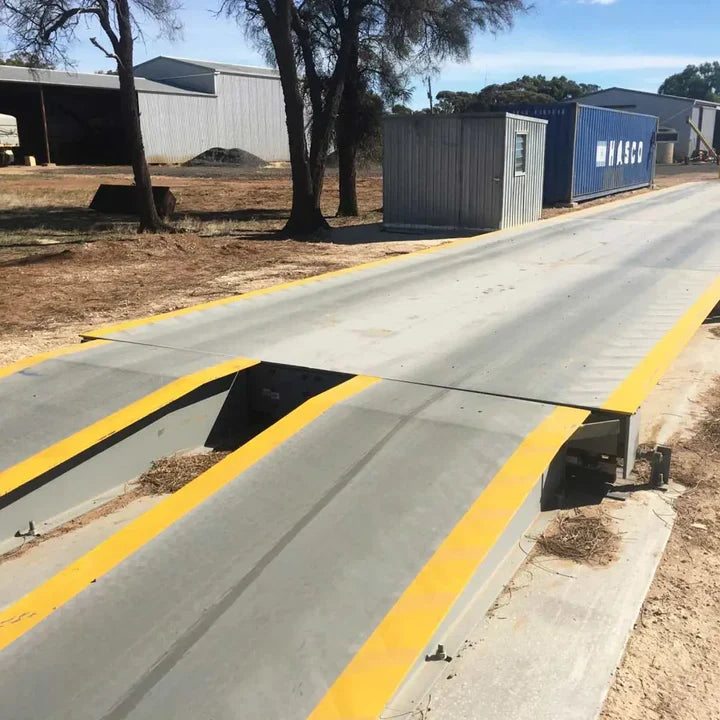

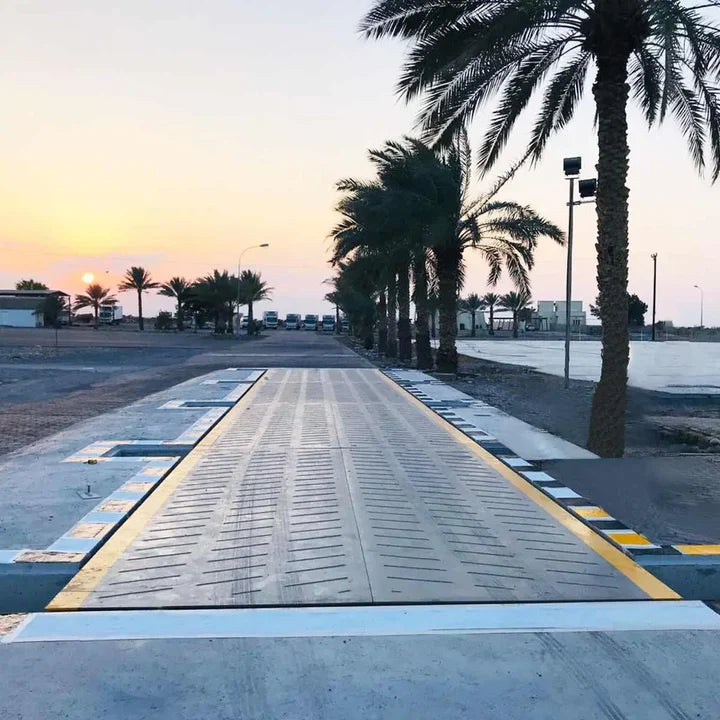

The CAEL-FST60 is a 60 ton weighbridge truck scale with modular U-beam steel construction, sealed load cells and a digital weight indicator. Built for logistics yards, trucking fleets, industrial plants, agriculture, waste management, forestry and construction sites, it can be installed in-ground or above ground.

Key Features

  • Maximum weighing capacity of 60 ton / 120,000 lbs

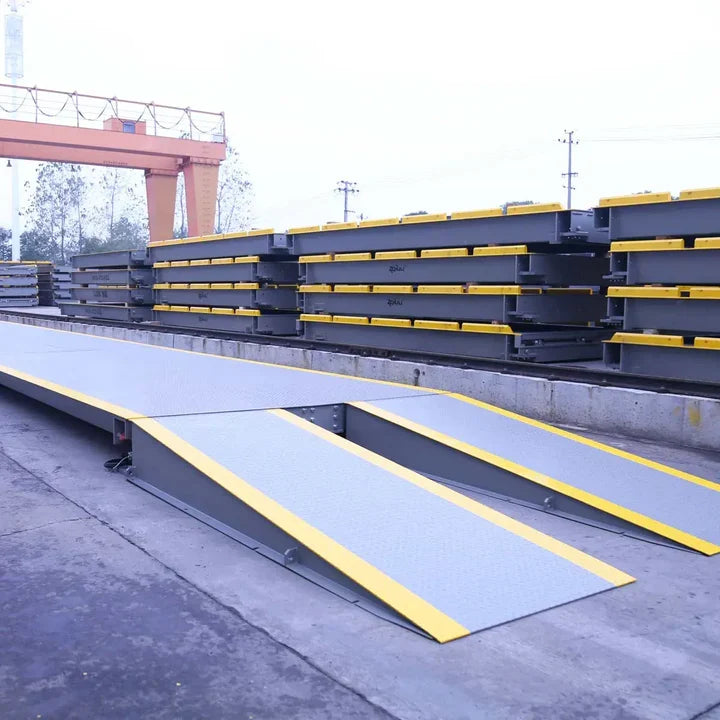

  • Modular, high-strength U-beam design for easy assembly, transport and installation
  • 8 mm checker-plate steel top for vehicle grip and operator safety
  • Anti-rust and anti-corrosion coating for long-term outdoor use
  • Operating temperature range of -35°C to +70°C
  • Industrial-grade sealed load cells for real-time, accurate readings
  • Digital indicator stores weighing records, with review and delete functions and power-off data protection
  • Audible overload alert and 120% safe overload capacity
  • Anti-cheating technology reduces electronic interference
  • Supports printers, computers and large external displays

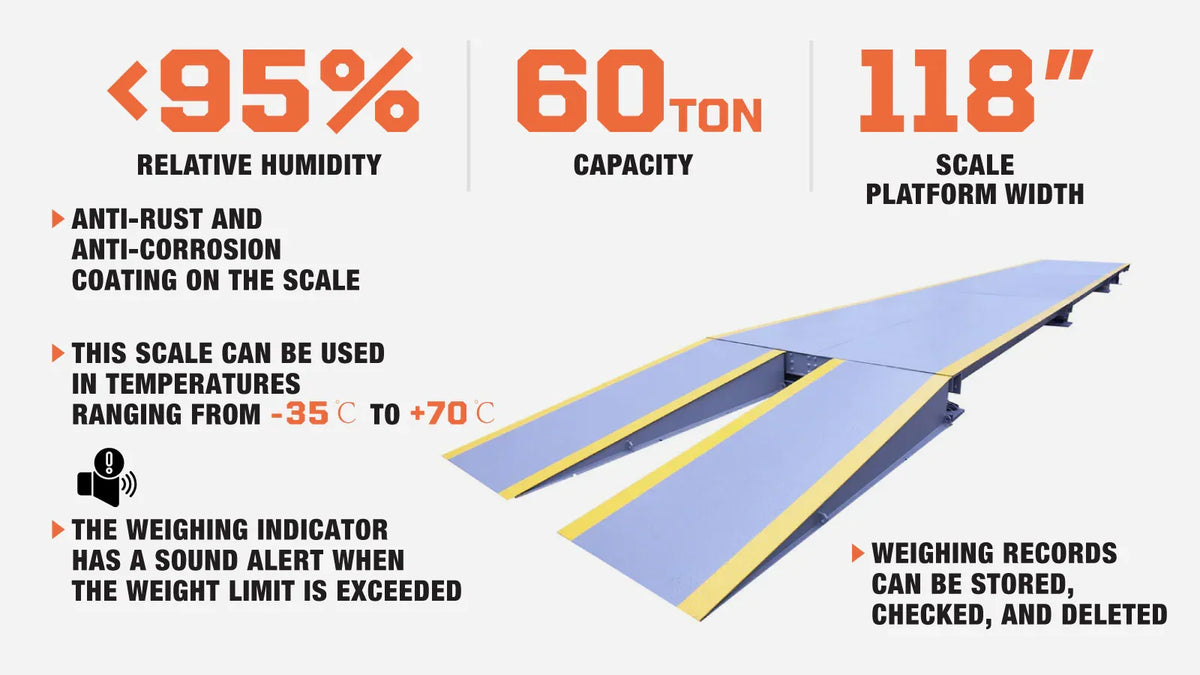

Scale Platform Specifications

Maximum Capacity 60 ton
Width 118 in / 9.84 ft
Length 675 in / 56 ft

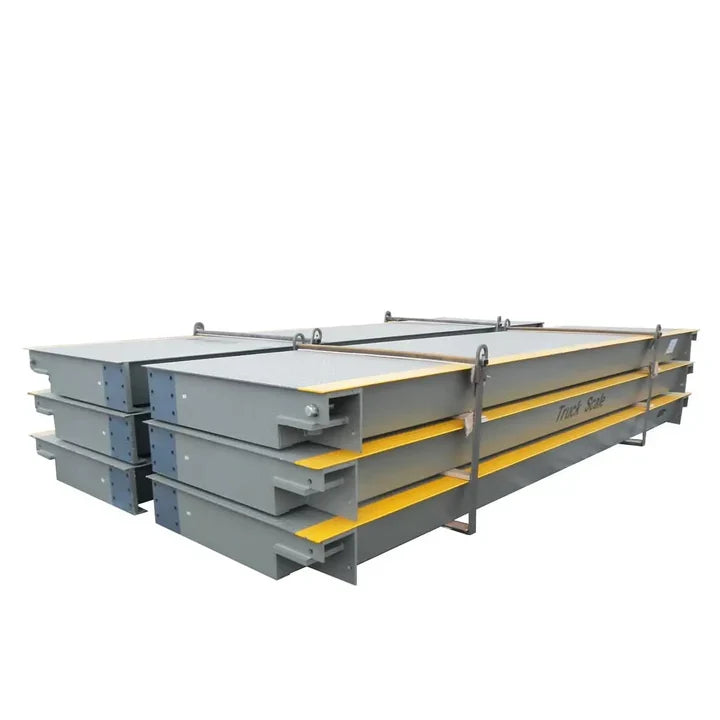

Structure 6-module U-beam design
Module Size (Each) 59 in × 225 in
Top Plate Thickness 8 mm checker plate
Accuracy Class OIML III
Operating Temperature -35°C to +70°C
Relative Humidity <95%
Safe Overload 120%

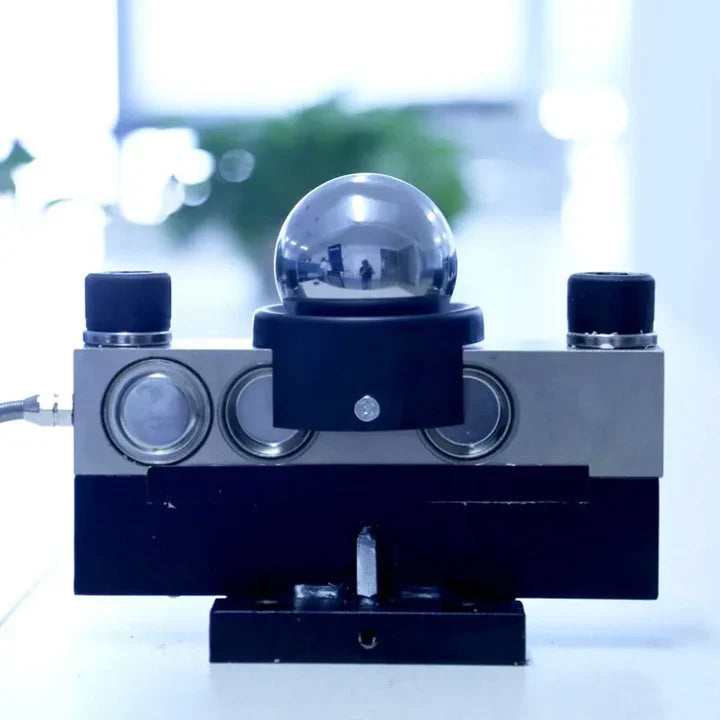

Load Cell Specifications

Temperature Range -35°C to +70°C
Safe Overload 150% of full scale
Ultimate Overload 300% of full scale
Protection IP68, hermetically sealed

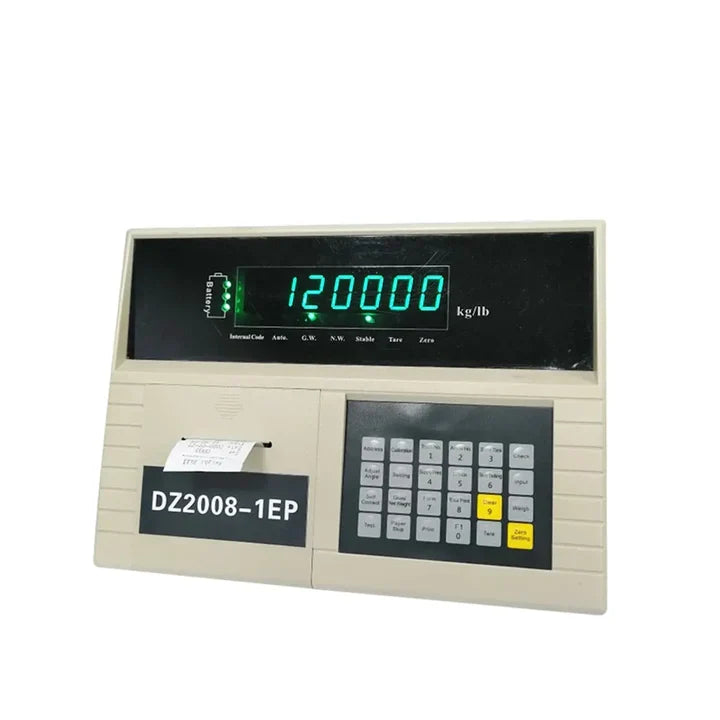

Weight Indicator Specifications

Temperature Range 0°C to 40°C
Humidity ≤85% RH
Power Supply 220V / 60Hz or 110V / 60Hz
Communication Options RS232, RS422, RS485
Baud Rates 600 / 1200 / 2400 / 4800 / 9600

Junction Box

  • Stainless steel enclosure, heavy-duty
  • Waterproof sealed joints
  • Resistance protection device

Optional Accessories

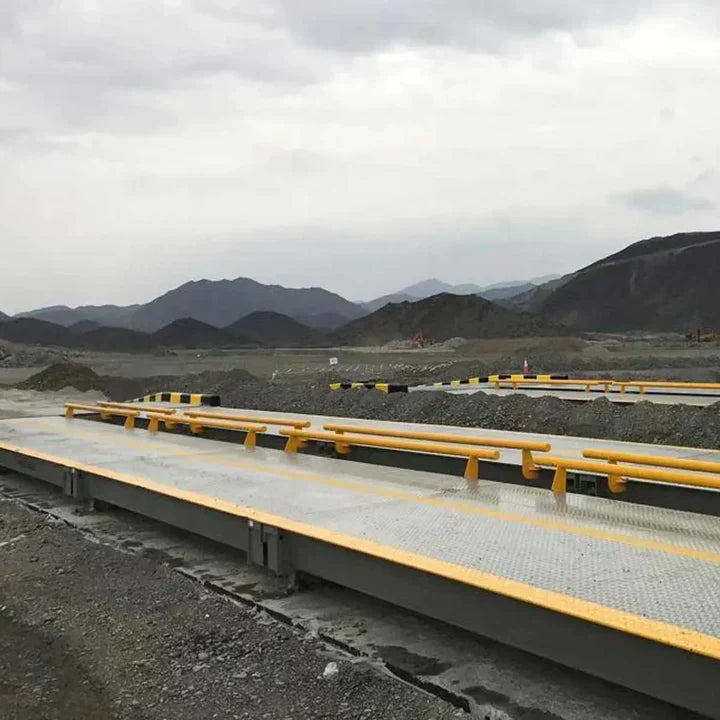

  • Guard rails: 3 sections per side, total length 18 m

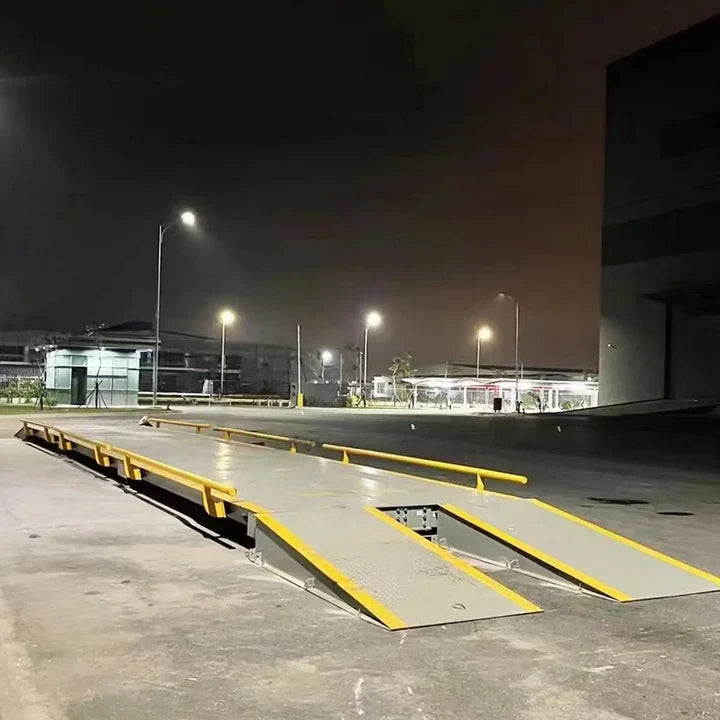

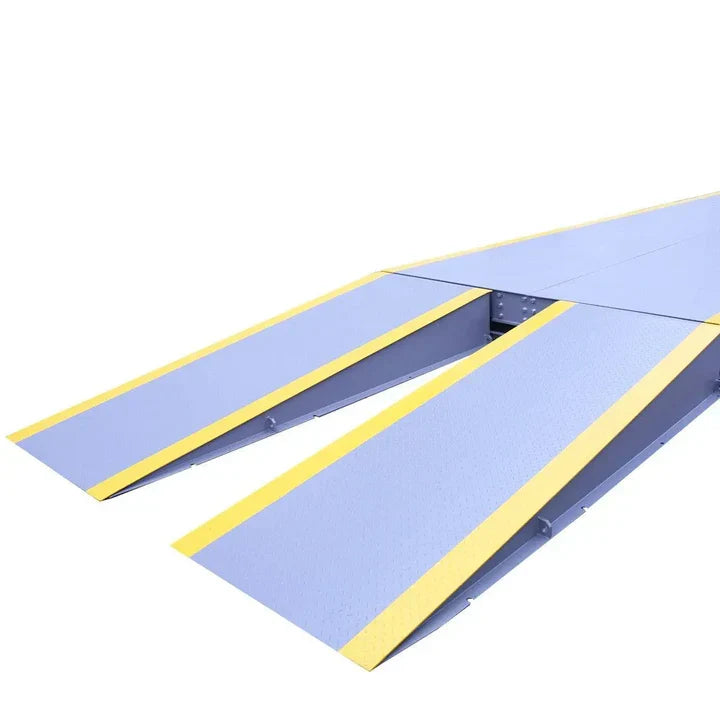

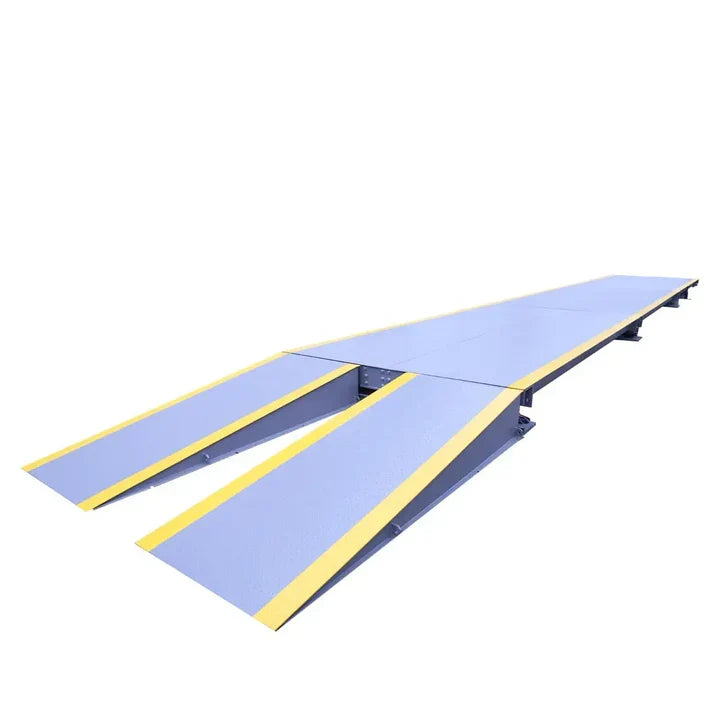

  • Above-ground ramps: 4 pieces, 1.2 × 2.8 m
  • External LED display: wall-mounted large display

Applications

  • Trucking fleets
  • Logistics centers
  • Agriculture operations
  • Construction yards
  • Waste management
  • Forestry operations
  • Government and military sites
  • Industrial facilities

Technical specifications
ModelCAEL-FST60 Weighbridge Truck Scale – 60 Ton, 56 ft Platform
Full spec sheetDetailed spec sheet on request
Delivery & setup

Machines are delivered by freight carrier by appointment: 9 business days for France and the EU, 14 business days for the United States. Orders under €10,000: €10 (EU) or €14 (United States); from €10,000: €500 (EU) or €1,000 (United States). Inspect the machine in the driver's presence and note any reservations on the delivery slip.

Payment

Encrypted payment through Shopify checkout; available payment methods are shown at checkout. For multiple machines or a business purchase, request a quote.

Warranty & returns

2-year statutory warranty of conformity and a 14-day right of withdrawal for consumers. 5-year manufacturer warranty. To return a bulky machine, please contact us first: we'll tell you the cost and arrange the pickup.
