CAEL JC425 Mobile Jaw Crusher – 14 HP Vanguard Engine, 6–8 t/h
- Bank transfer acceptedOrder, make the transfer, then email the proof to shoptracteur@gmail.com. We confirm receipt of payment and ship your order. Learn more
- Secure paymentEncrypted Shopify checkout
- Delivery in 9 to 14 business daysEU: €10, or €500 by freight · United States: €14, or €1,000 by freight
- 5-year warranty5-year manufacturer warranty · statutory warranty included
- 14 days to change your mindStatutory right of withdrawal for consumers
Everything you need to know.
Description

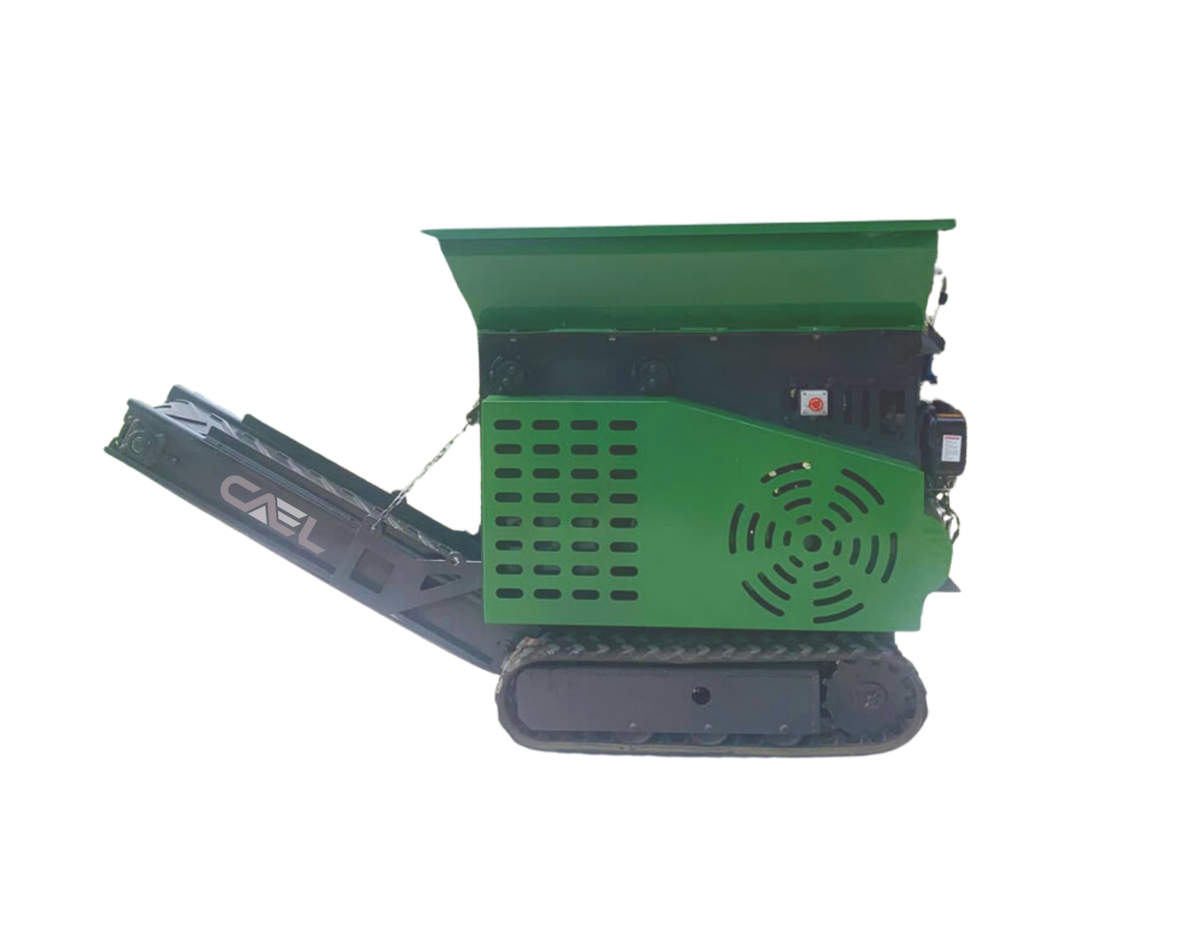

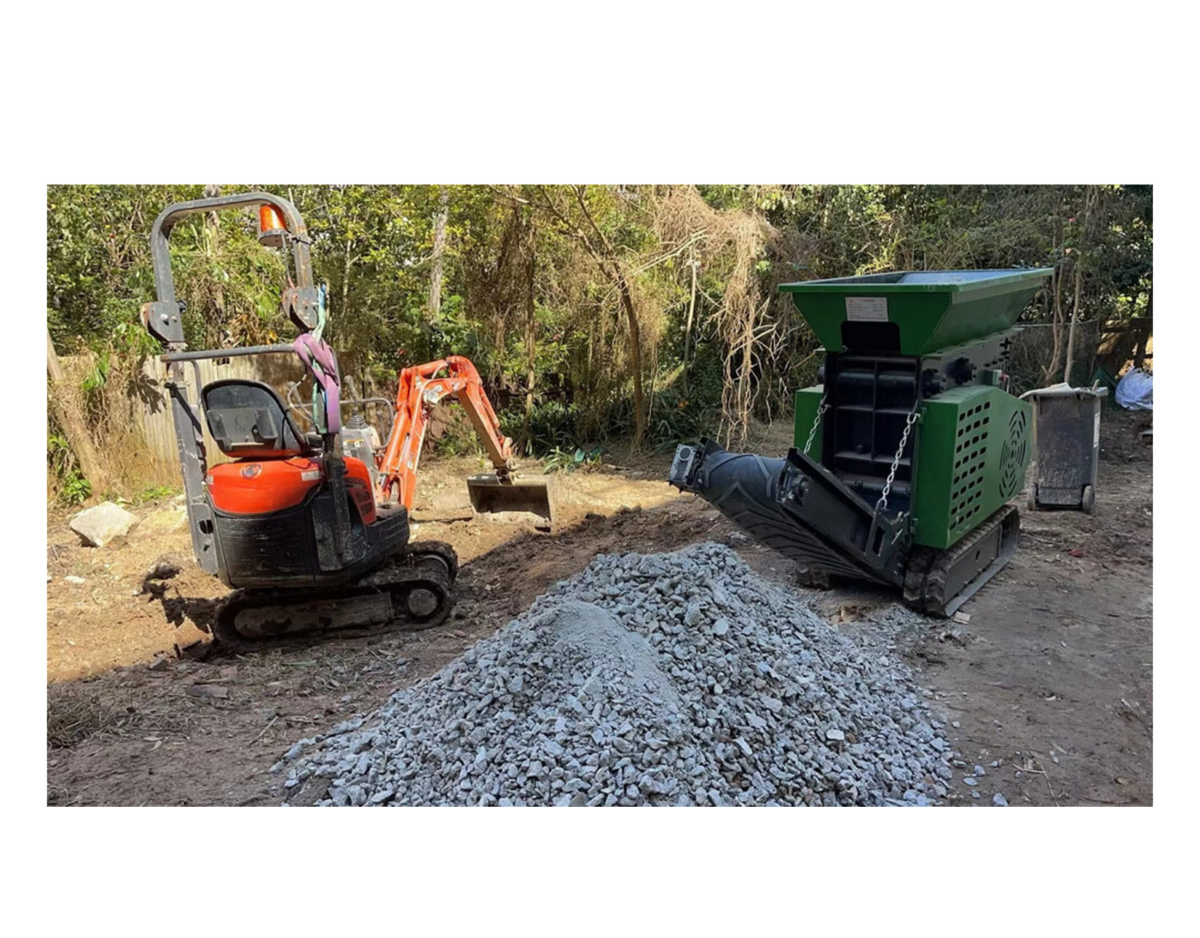

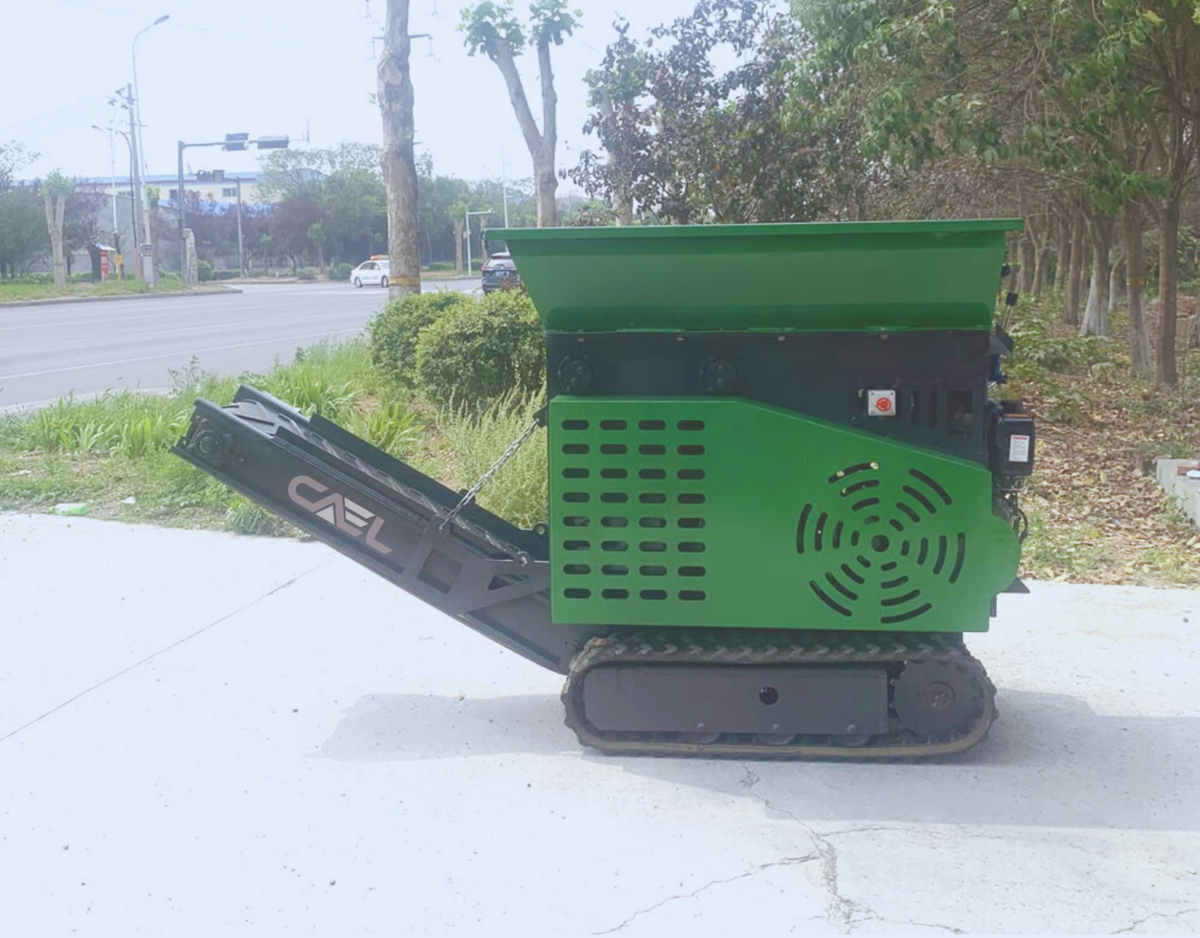

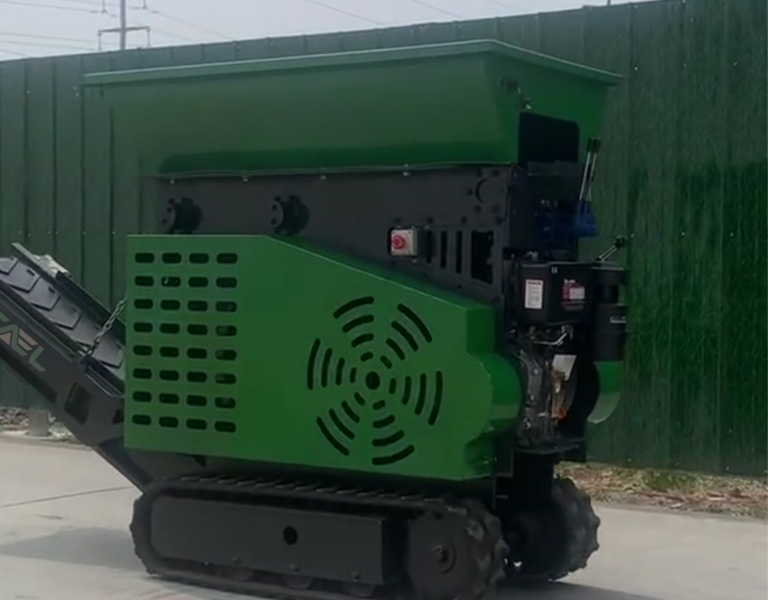

The CAEL-JC425 is a portable mobile jaw crusher for crushing a wide range of materials, powered by a Stage V Vanguard 400 (14 HP) engine. It suits construction sites, landscaping projects, recycling operations and small-scale mining.
Feeding System
| Stock bin volume | 0.5 m³ |
| Hopper size | 1400 × 690 mm (55.12 × 27.17 in) |
Crushing Equipment
| Feed port size | 400 × 200 mm (15.75 × 7.87 in) |
| Maximum feeding size | 150 × 350 mm (5.91 × 13.78 in) |
| Crushing capacity | 6–8 tons per hour |
| Crusher min./max. opening | 20–80 mm (0.79–3.15 in) |
Driving System
| Engine | Stage V Vanguard 400 (14 HP) |
| Fuel tank capacity | 6.1 liters |
Auxiliary Equipment
| Belt conveyor | 280 × 1400 mm (11.02 × 55.12 in) |
| Maximum stacking height | 1.25 m / 1250 mm (49.21 in) |
Basic Parameters
| Total weight | 1050 kg |
| Working dimensions (L × W × H) | 2640 × 850 × 1540 mm (103.94 × 33.46 × 60.63 in) |
Key Features
- High crushing efficiency for stone, concrete and aggregates
- Compact, portable design for easy on-site setup
- Low-maintenance construction with durable components
- Fuel-efficient Stage V engine
- Robust construction for long-term operational stability
- User-friendly operation
Technical specifications
| Model | CAEL JC425 Mobile Jaw Crusher – 14 HP Vanguard Engine, 6–8 t/h |
|---|---|
| Full spec sheet | Detailed spec sheet on request |
Delivery & setup
Machines are delivered by freight carrier by appointment: 9 business days for France and the EU, 14 business days for the United States. Orders under €10,000: €10 (EU) or €14 (United States); from €10,000: €500 (EU) or €1,000 (United States). Inspect the machine in the driver's presence and note any reservations on the delivery slip.
Payment
Encrypted payment through Shopify checkout; available payment methods are shown at checkout. For multiple machines or a business purchase, request a quote.
Warranty & returns
2-year statutory warranty of conformity and a 14-day right of withdrawal for consumers. 5-year manufacturer warranty. To return a bulky machine, please contact us first: we'll tell you the cost and arrange the pickup.
