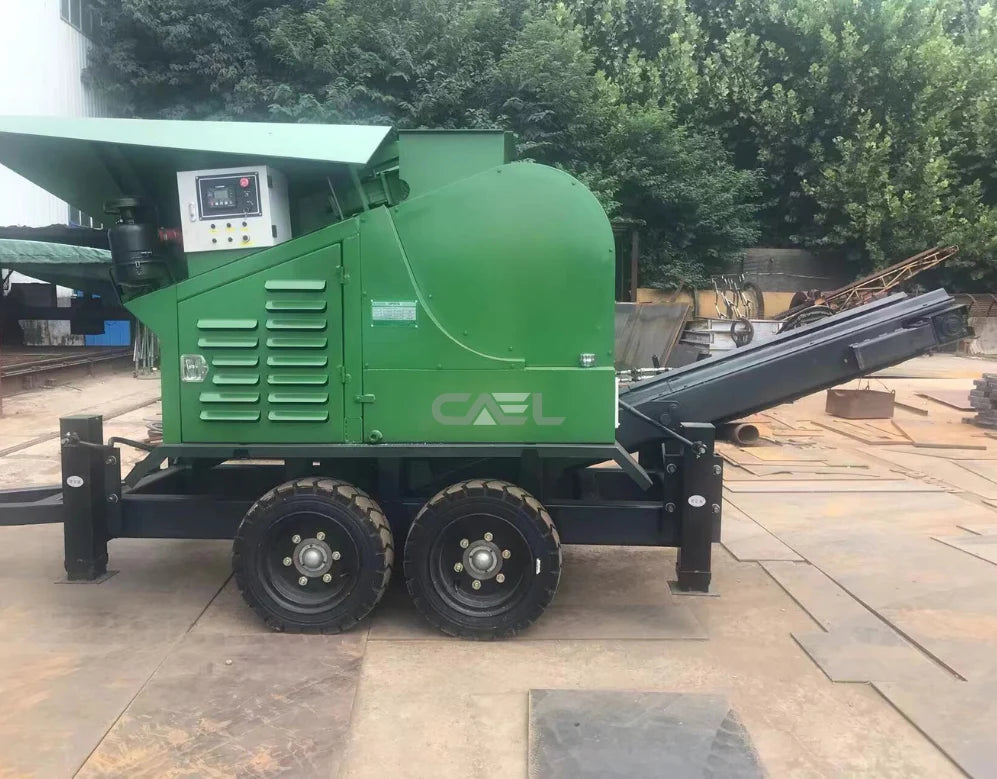

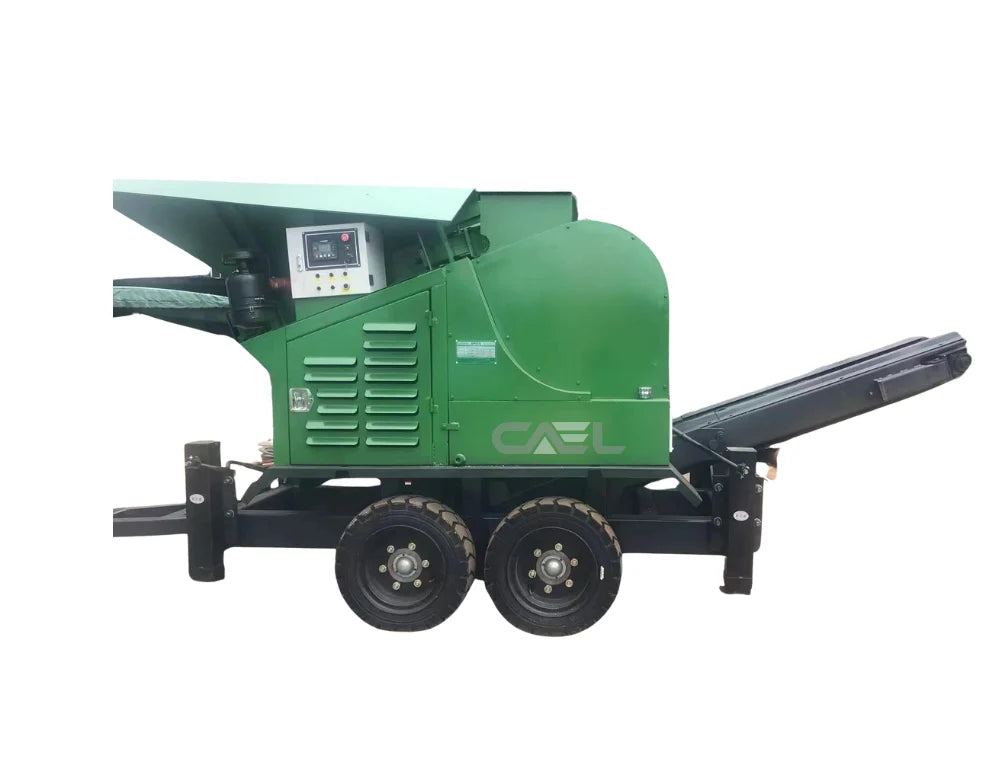

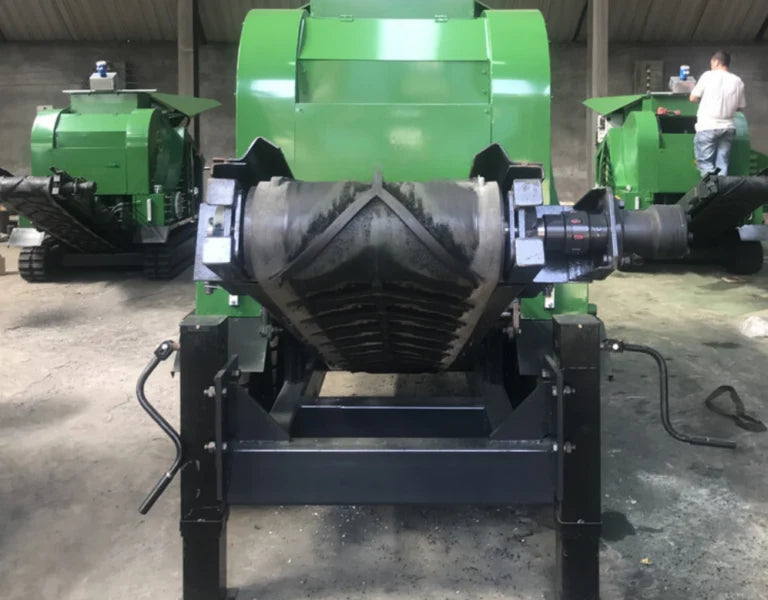

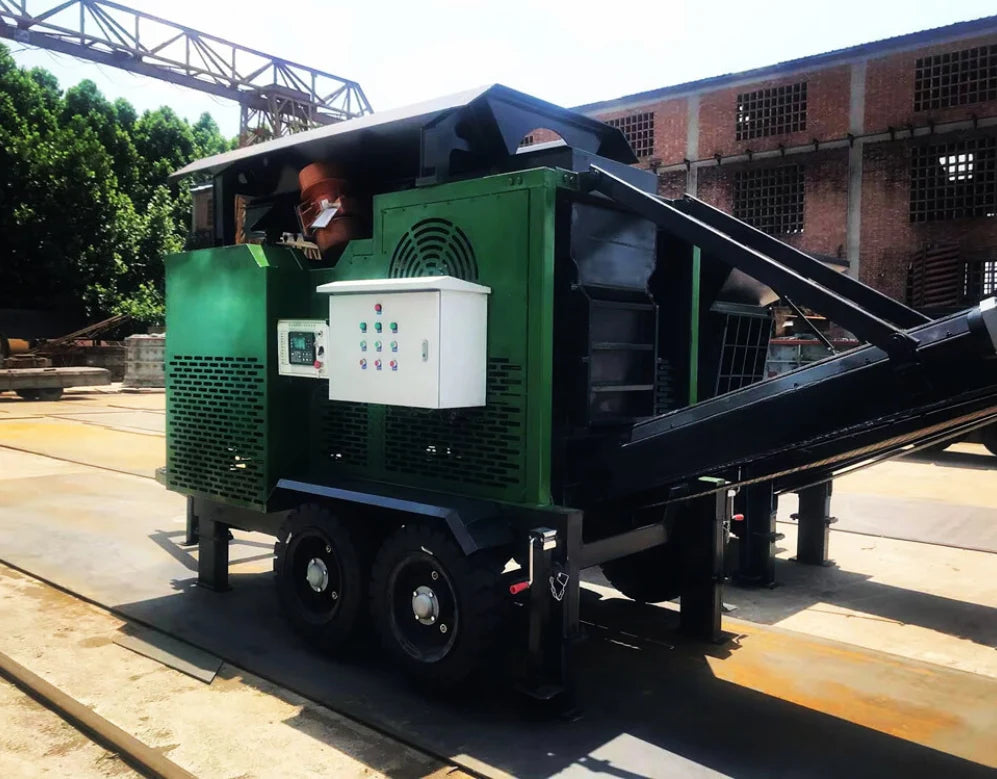

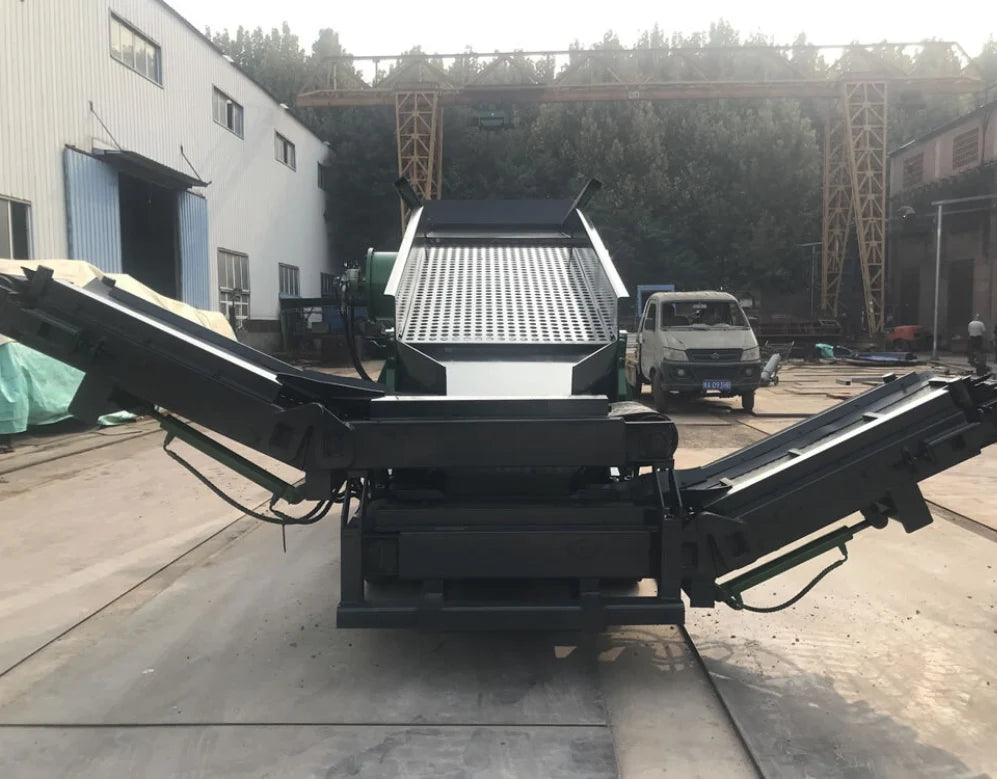

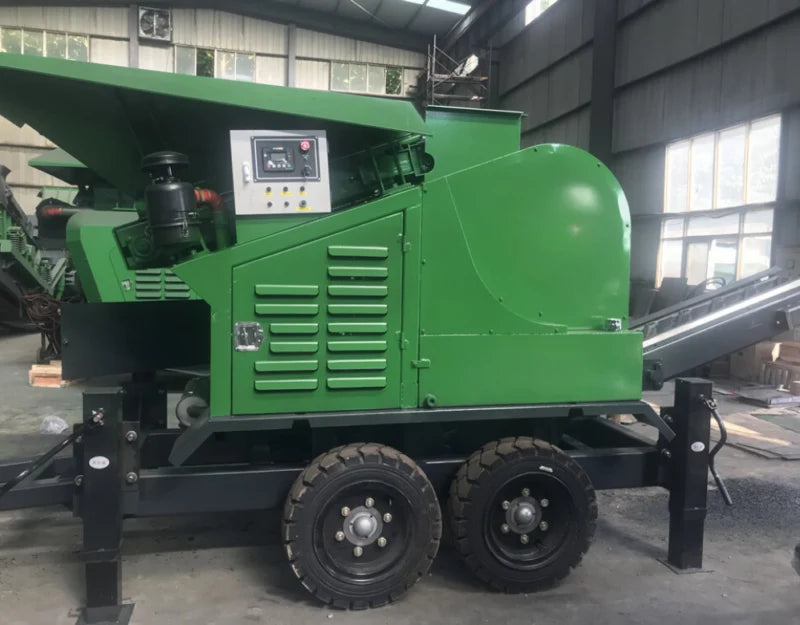

CAEL WJC503 Mobile Jaw Crusher – Kubota Diesel, 10–30 t/h
- Bank transfer acceptedOrder, make the transfer, then email the proof to shoptracteur@gmail.com. We confirm receipt of payment and ship your order. Learn more
- Secure paymentEncrypted Shopify checkout
- Delivery in 9 to 14 business daysEU: €10, or €500 by freight · United States: €14, or €1,000 by freight
- 5-year warranty5-year manufacturer warranty · statutory warranty included
- 14 days to change your mindStatutory right of withdrawal for consumers
Everything you need to know.
Description
The CAEL WJC503 Mobile Jaw Crusher with Kubota diesel engine is built for construction sites, quarries and demolition projects. Its fully integrated system suits both primary and secondary crushing applications.
Specifications
| Item | Specification |
|---|---|
| Stock bin volume | 0.8 m³ |
| Hopper size | 3000 × 1350 mm (118.11 × 53.15 in) |
| Feed port size | 480 × 250 mm (18.90 × 9.84 in) |
| Maximum feeding size | 250 mm (9.84 in) |
| Discharge size | 0–50 mm (0–1.97 in) |
| Production capacity | 10–30 t/h (11–33 US tons per hour) |
| Diesel generator | 4100ZD – 40 kW (53.64 HP) |
| Engine | Kubota |
| Belt conveyor | B400 × 2500 mm (15.75 × 98.43 in) |
| Stacking height | 1.3 m / 1300 mm (51.18 in) |
| Weight | 3,800 kg / 8,377.57 lbs |
| Working size (L × W × H) | 5700 × 1930 × 2000 mm / 224.41 × 75.98 × 78.74 in |
| Transport size (L × W × H) | 3200 × 1930 × 2300 mm / 125.98 × 75.98 × 90.55 in |
Key Features
- High-efficiency crushing of stone, concrete, bricks and aggregates
- Compact, mobile design that is easy to transport and install on site
- Powerful Kubota engine for dependable, fuel-efficient performance
- Integrated diesel generator for a consistent power supply
- Adjustable discharge size for diverse project requirements
- Durable, low-maintenance construction
- Optimized conveyor system for efficient material handling and stacking
- Smooth, quiet operation
- User-friendly design that simplifies setup, control and maintenance
Technical specifications
| Model | CAEL WJC503 Mobile Jaw Crusher – Kubota Diesel, 10–30 t/h |
|---|---|
| Full spec sheet | Detailed spec sheet on request |
Delivery & setup
Machines are delivered by freight carrier by appointment: 9 business days for France and the EU, 14 business days for the United States. Orders under €10,000: €10 (EU) or €14 (United States); from €10,000: €500 (EU) or €1,000 (United States). Inspect the machine in the driver's presence and note any reservations on the delivery slip.
Payment
Encrypted payment through Shopify checkout; available payment methods are shown at checkout. For multiple machines or a business purchase, request a quote.
Warranty & returns
2-year statutory warranty of conformity and a 14-day right of withdrawal for consumers. 5-year manufacturer warranty. To return a bulky machine, please contact us first: we'll tell you the cost and arrange the pickup.
