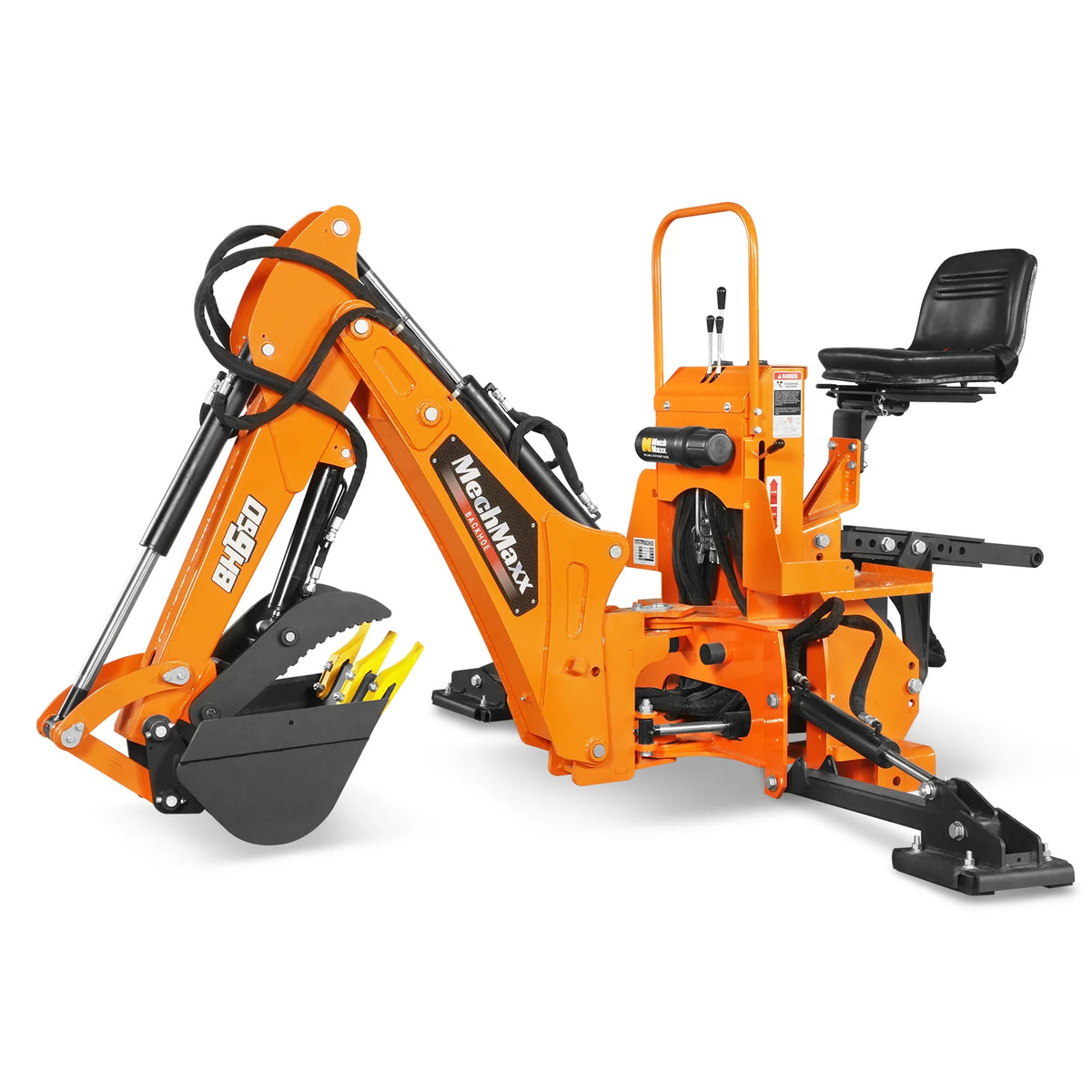

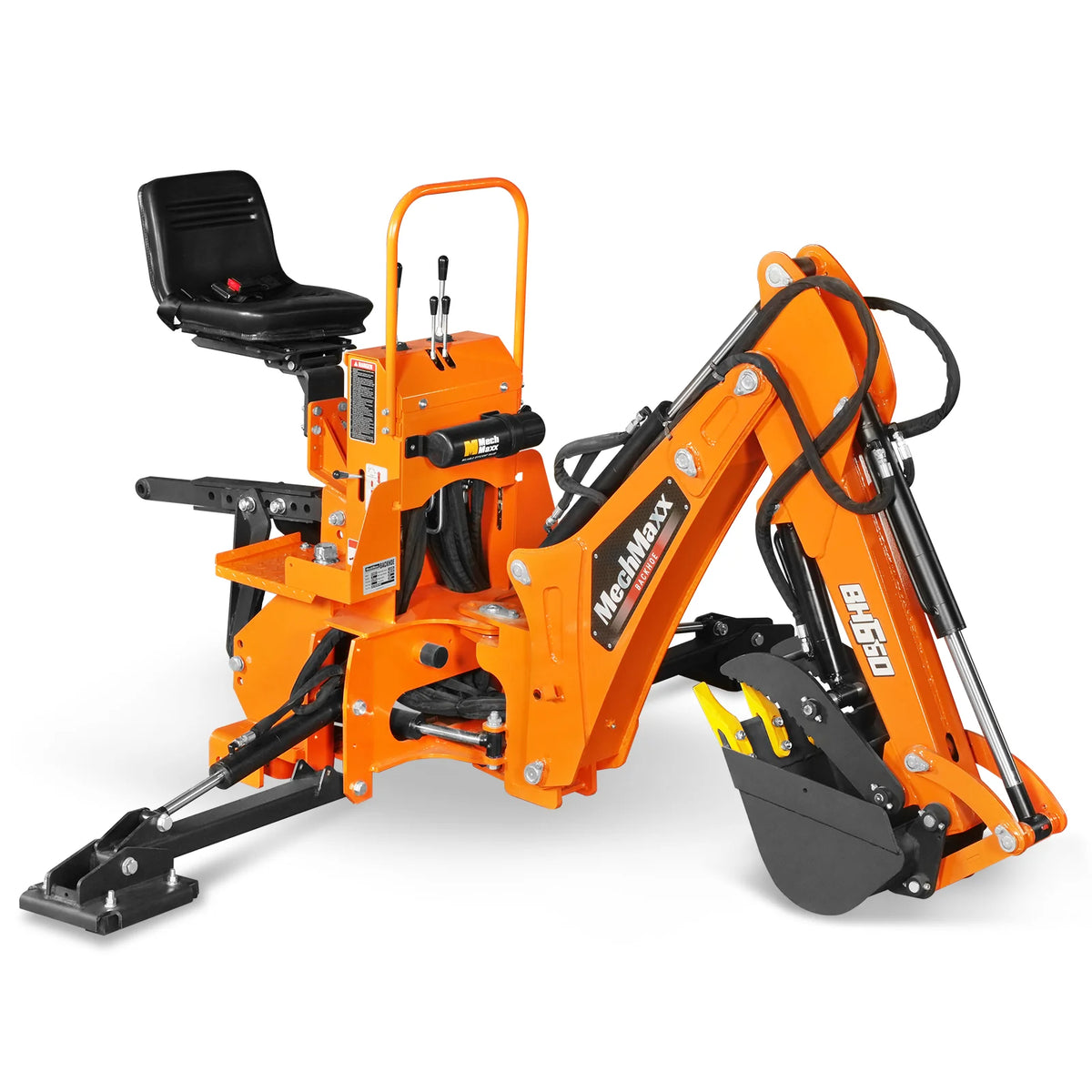

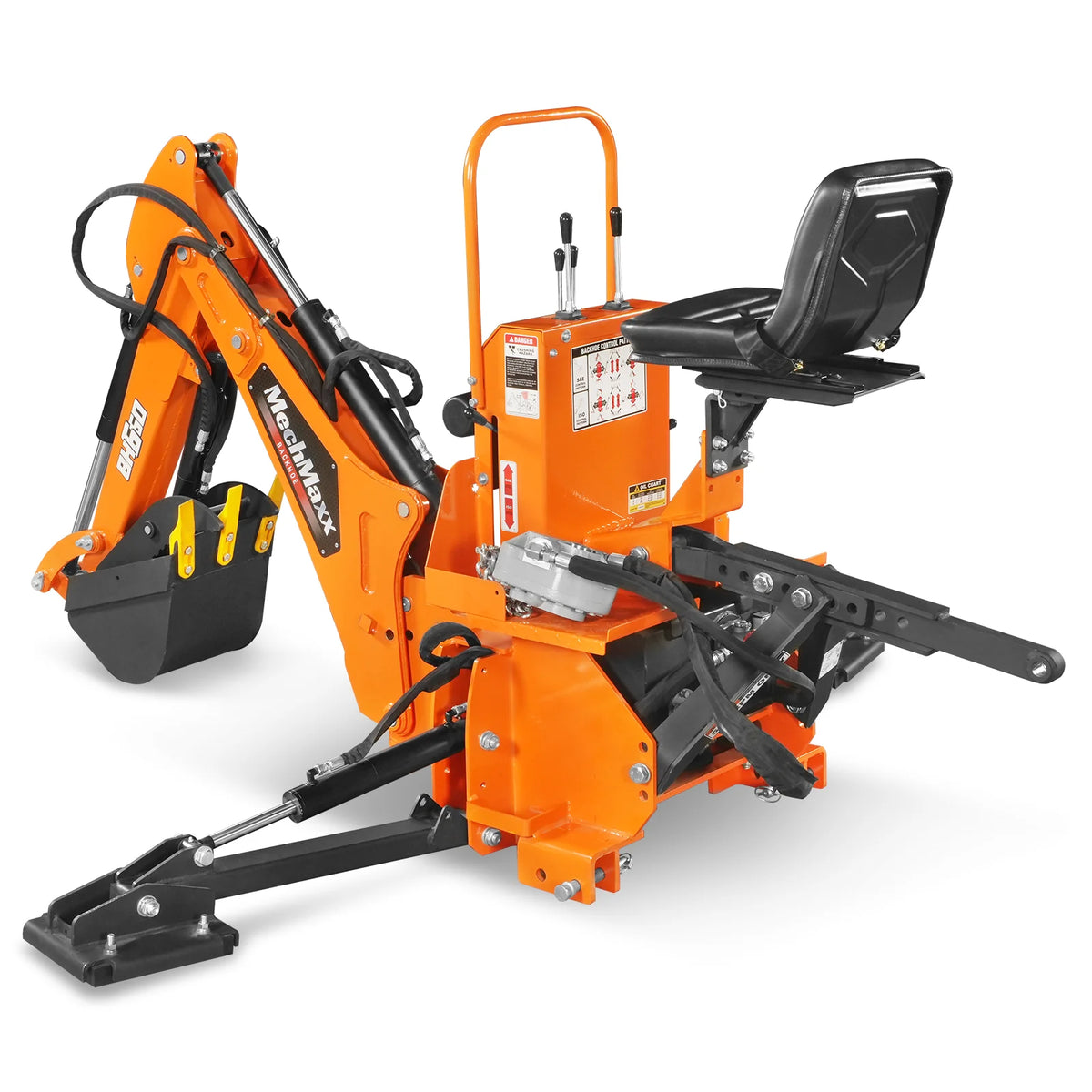

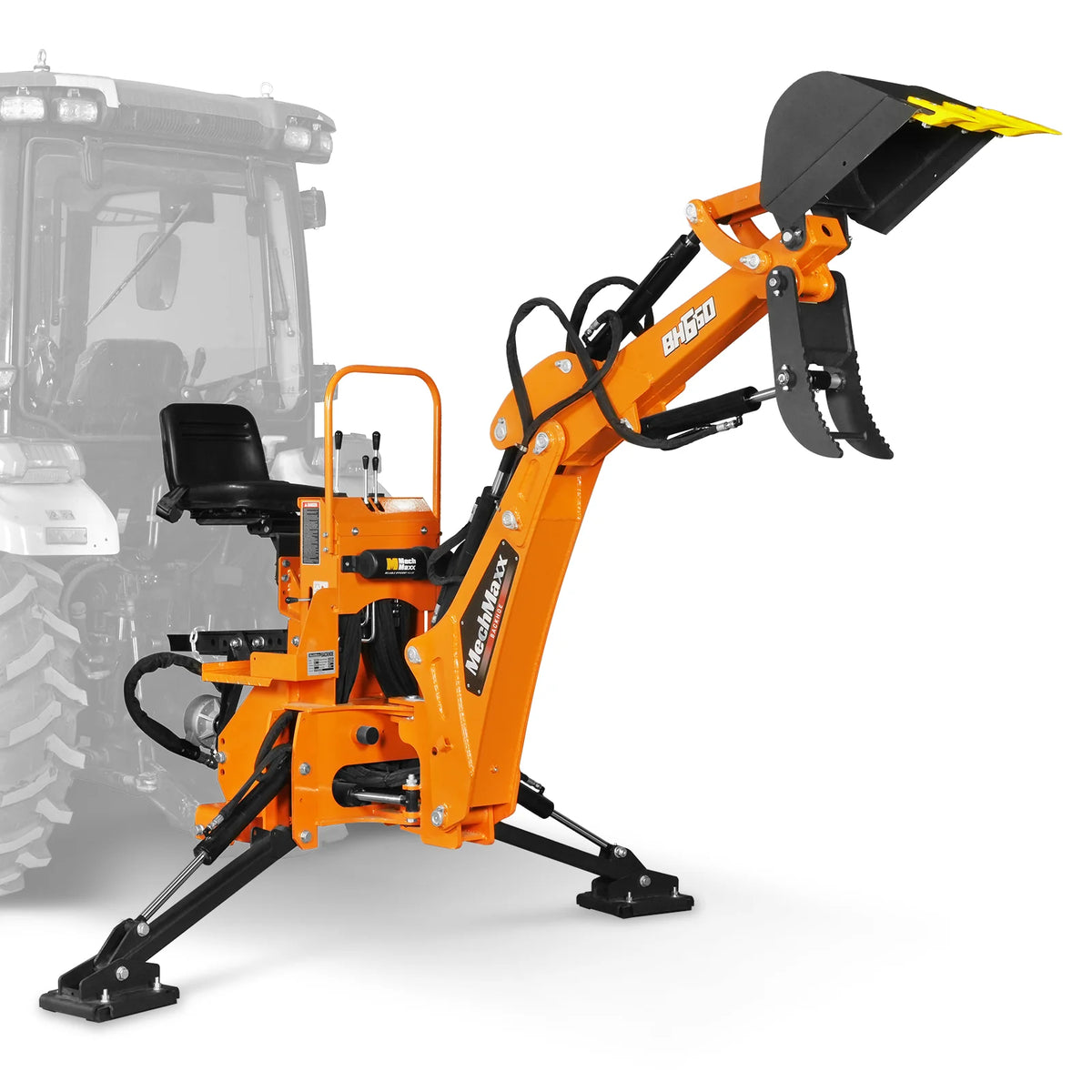

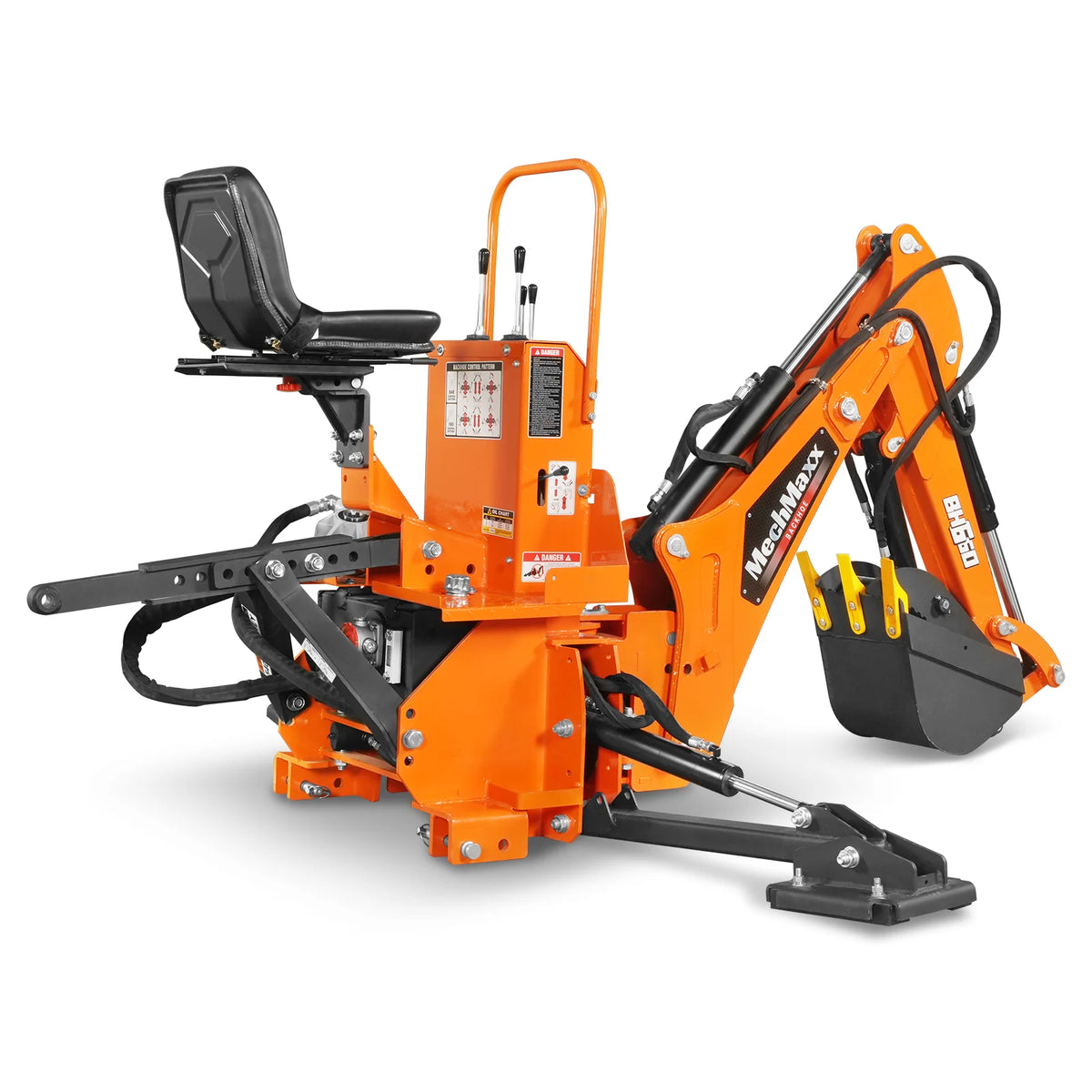

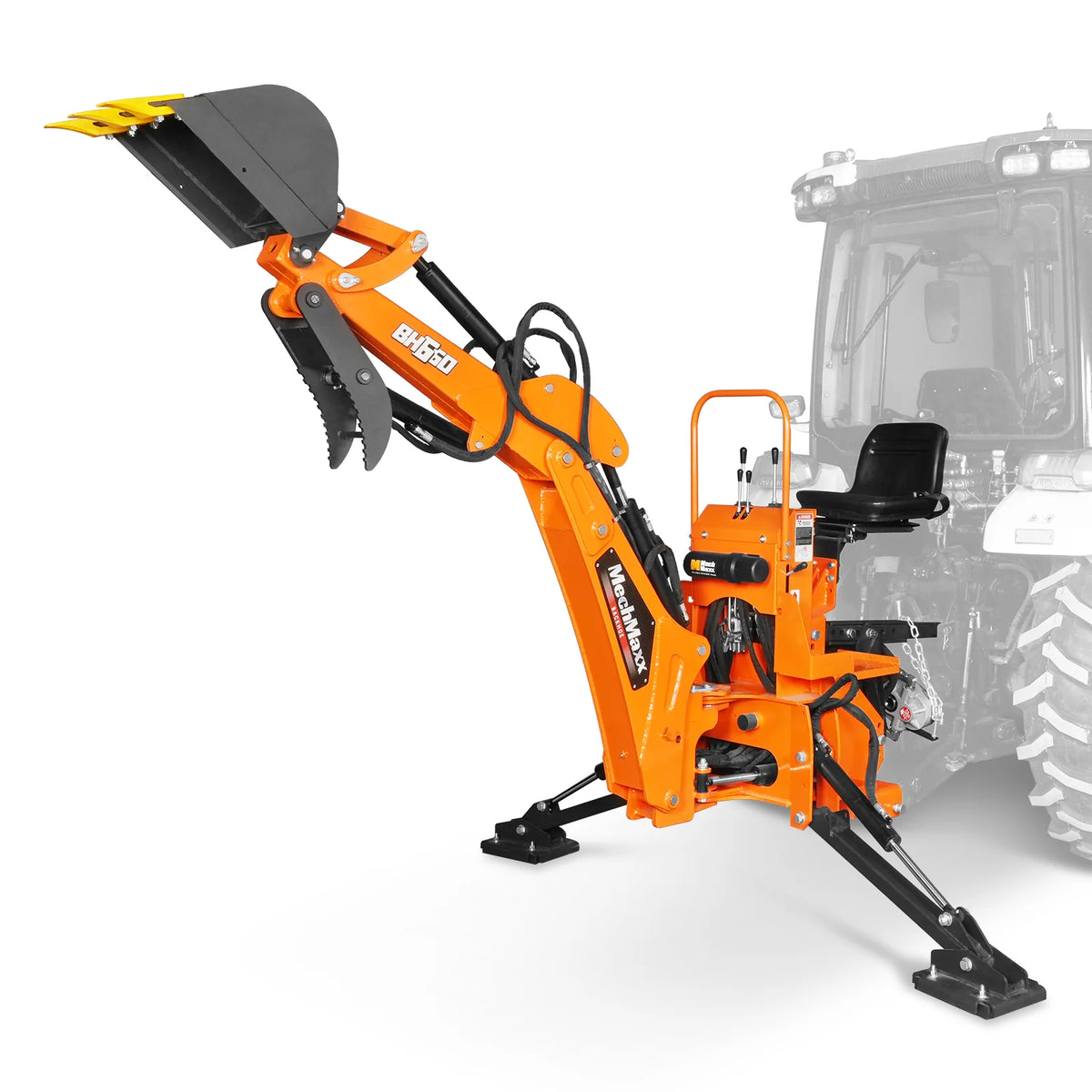

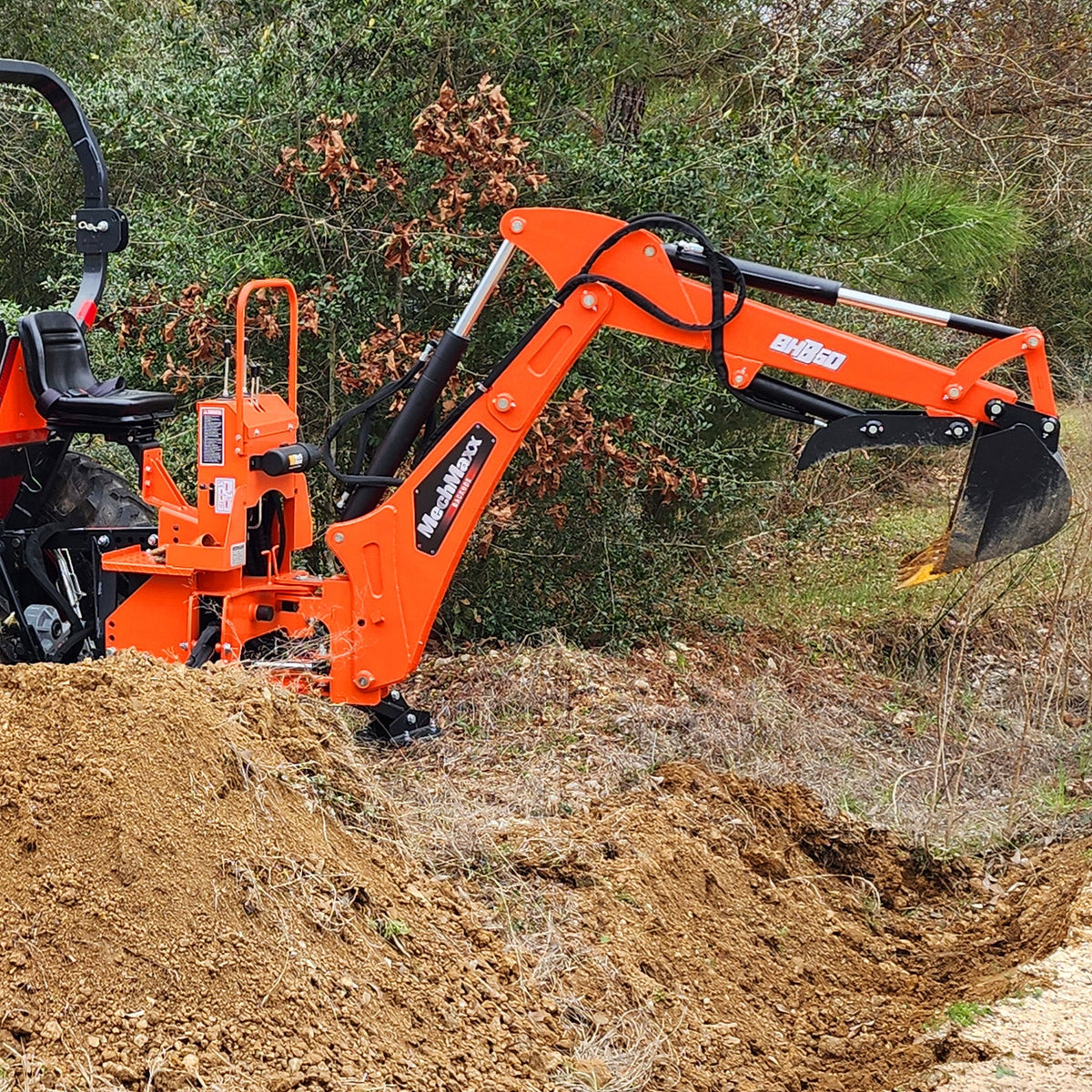

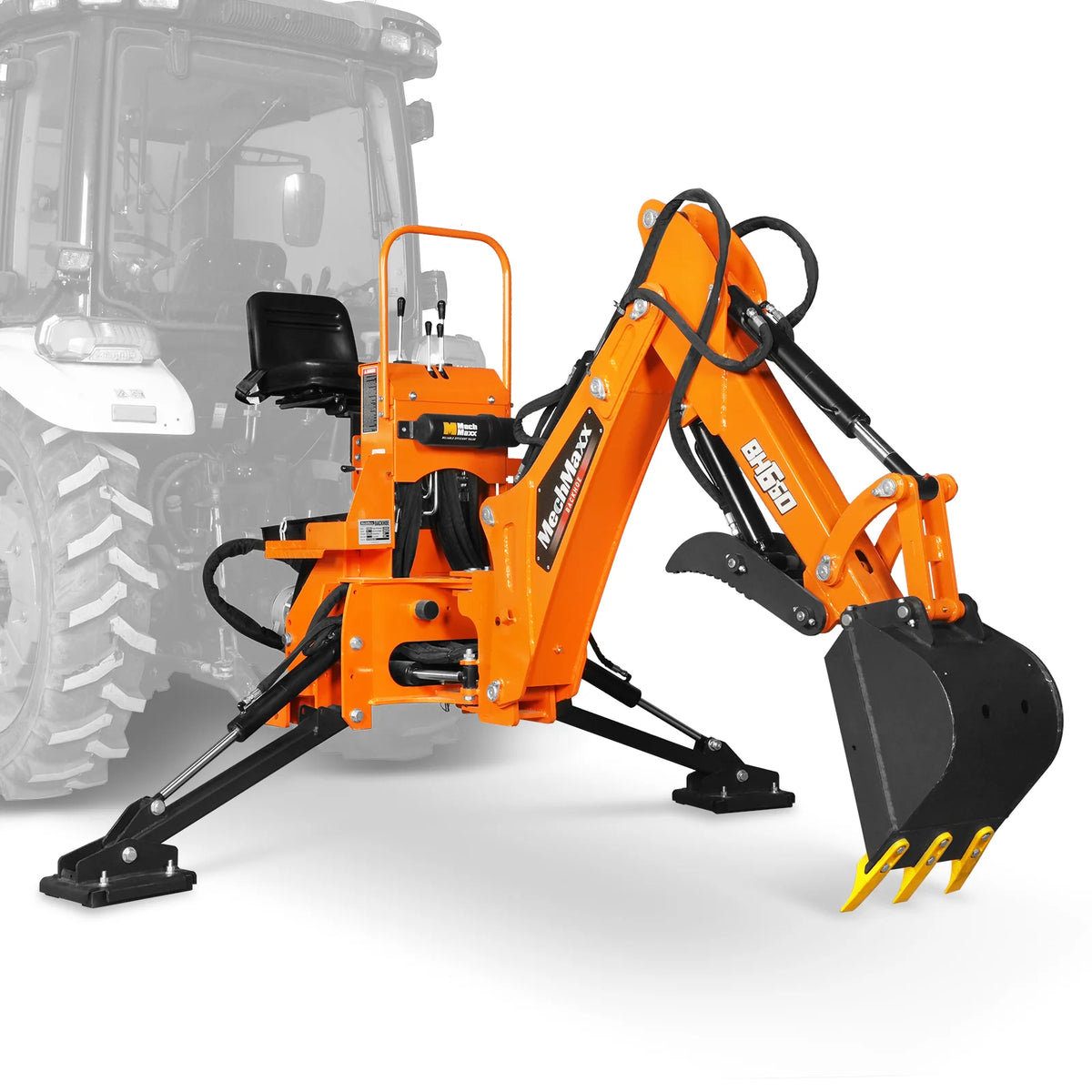

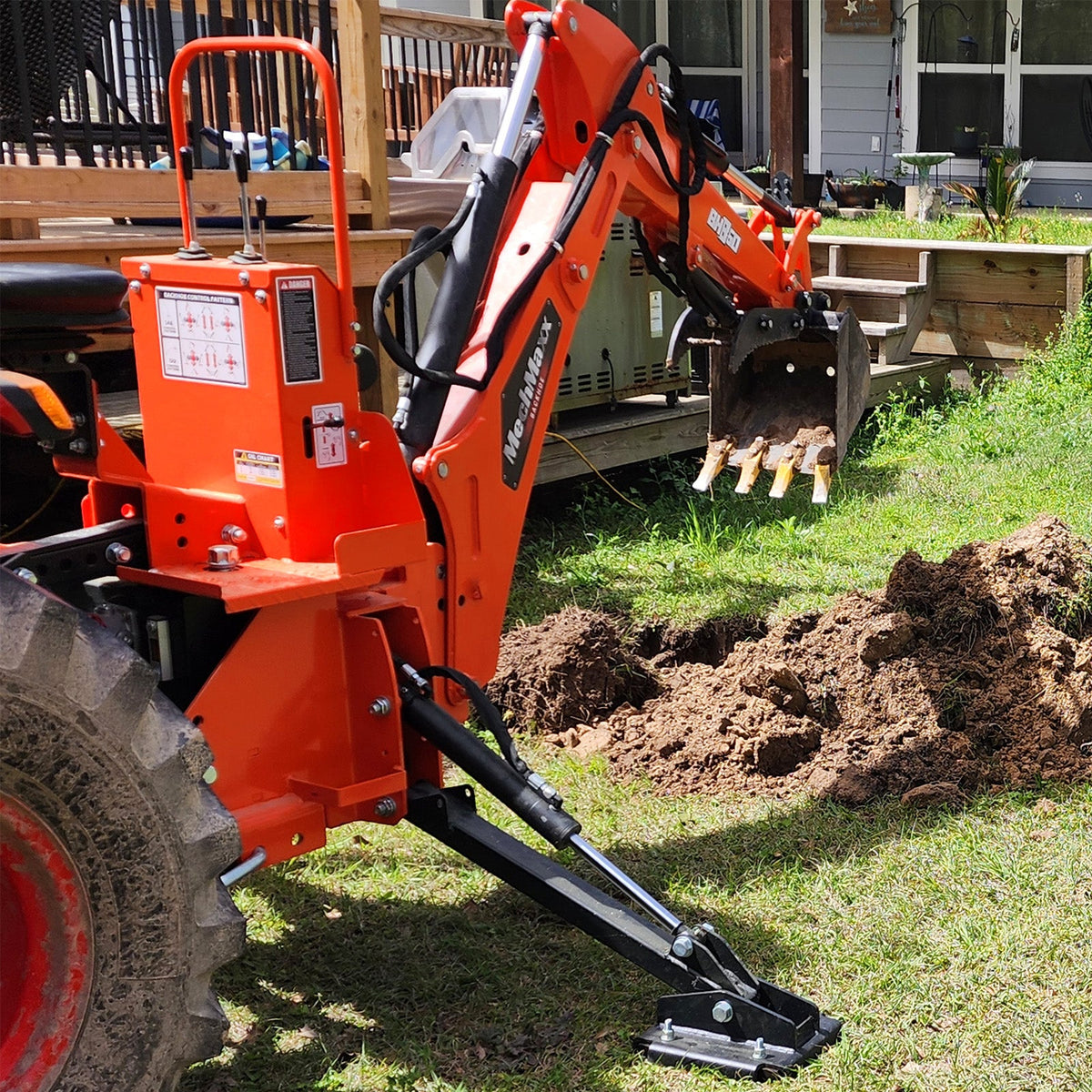

7' Tractor Backhoe Attachment, Hydraulic Thumb, 12" Bucket, ISO/SAE Controls, Cat. 1, 15-50 HP, BH660H
- Bank transfer acceptedOrder, make the transfer, then email the proof to shoptracteur@gmail.com. We confirm receipt of payment and ship your order. Learn more
- Secure paymentEncrypted Shopify checkout
- Delivery in 9 to 14 business daysEU: €10, or €500 by freight · United States: €14, or €1,000 by freight
- 5-year warranty5-year manufacturer warranty · statutory warranty included
- 14 days to change your mindStatutory right of withdrawal for consumers
Everything you need to know.
Description
| Max. Digging Depth | 7 ft | Dipper Stick Cylinder Digging Force | 2005 lbs |
| Digging Depth (two foot flat bottom) | 6 ft 6 in | Hydraulic Volume Requirements | 4 to 5 GPM |
| Swing Arc | 180 Degrees | Hydraulic Pressure Requirements | 2250psi |
| Loading Height (bucket at 60 °) | 4 ft 9 in | Hydraulic Tank Capacity | 4.1 US Gal (15.5L) |
| Reach from Center Line of Swing Pivot | 9 ft 1 in | Hydraulic Type Recommended | AW 46 |

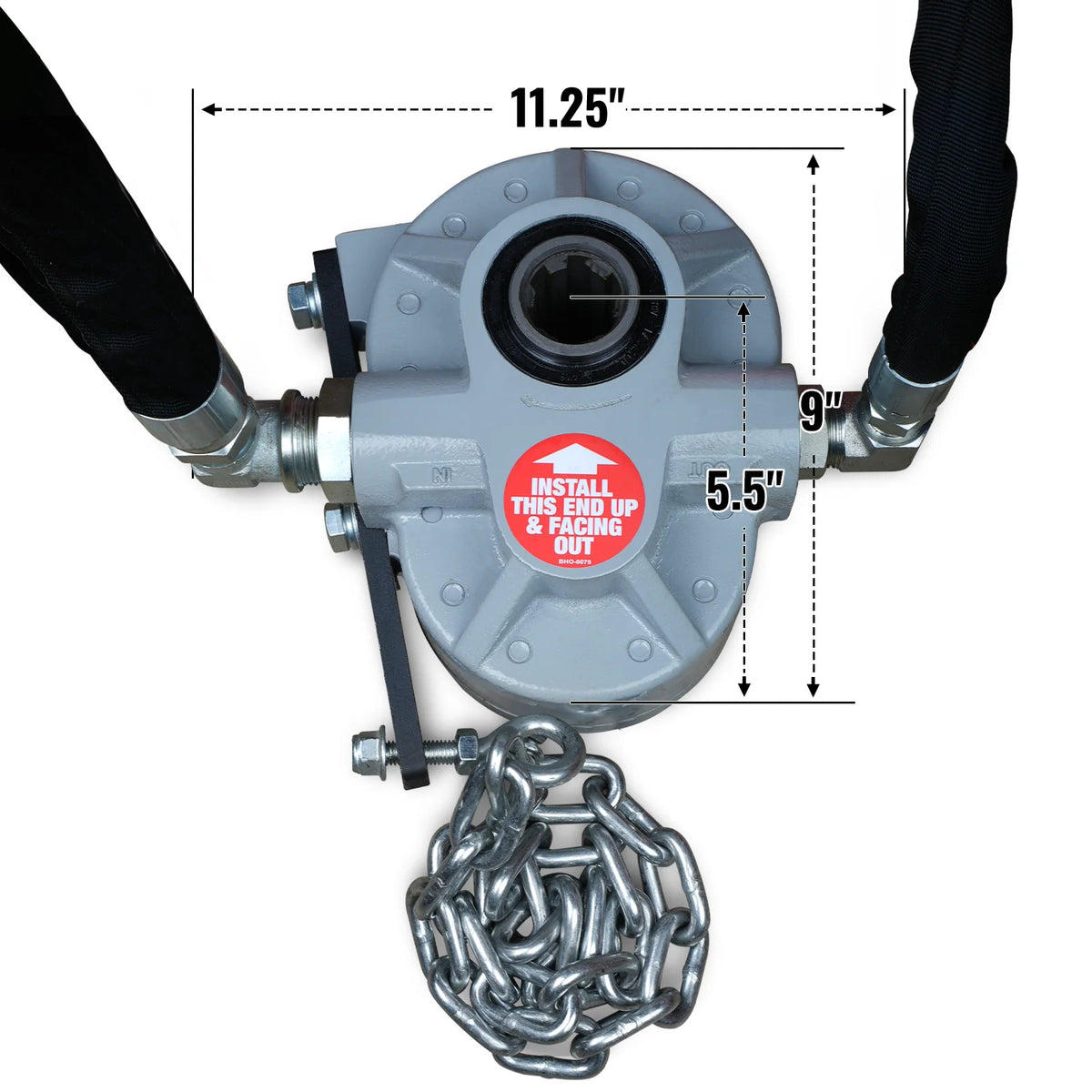

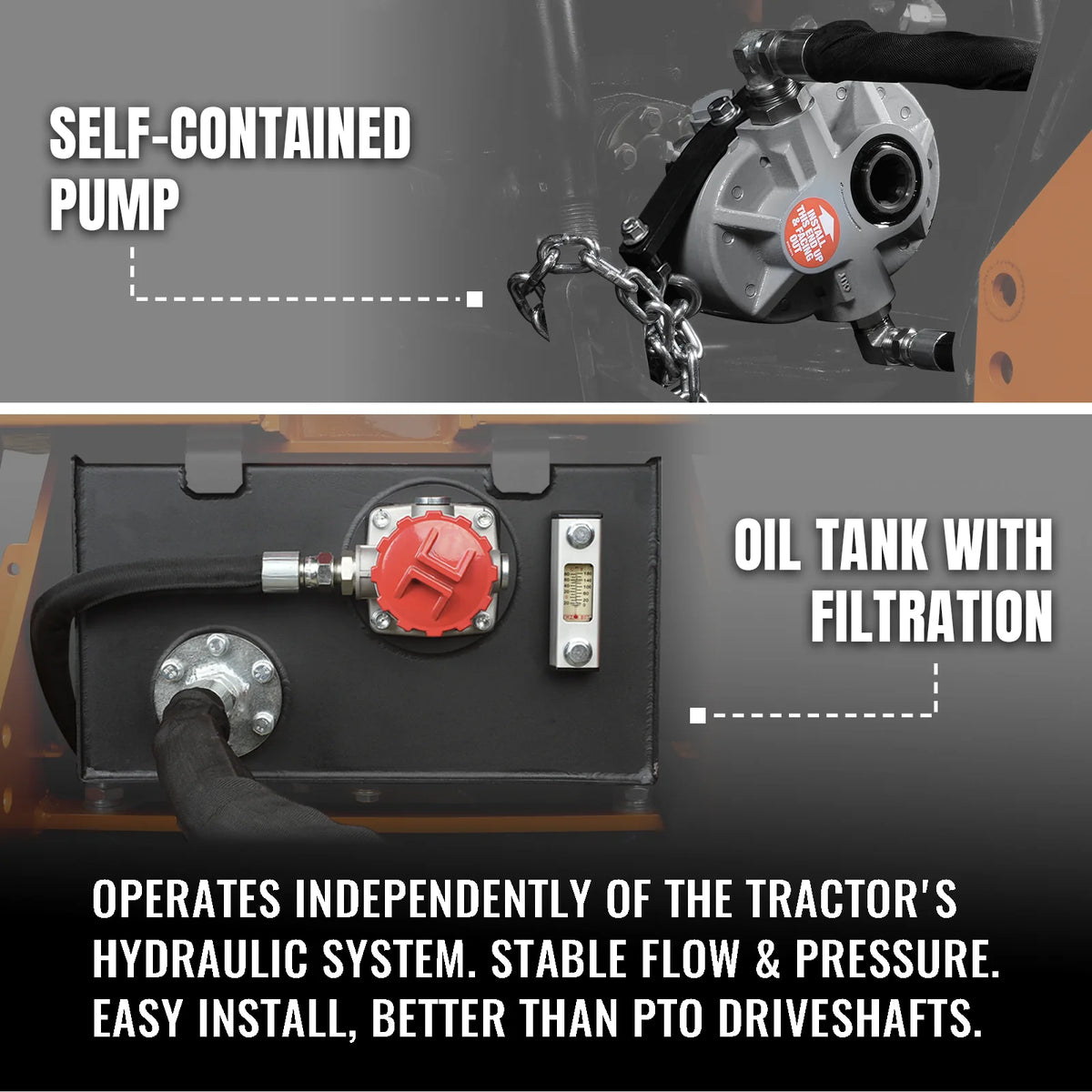

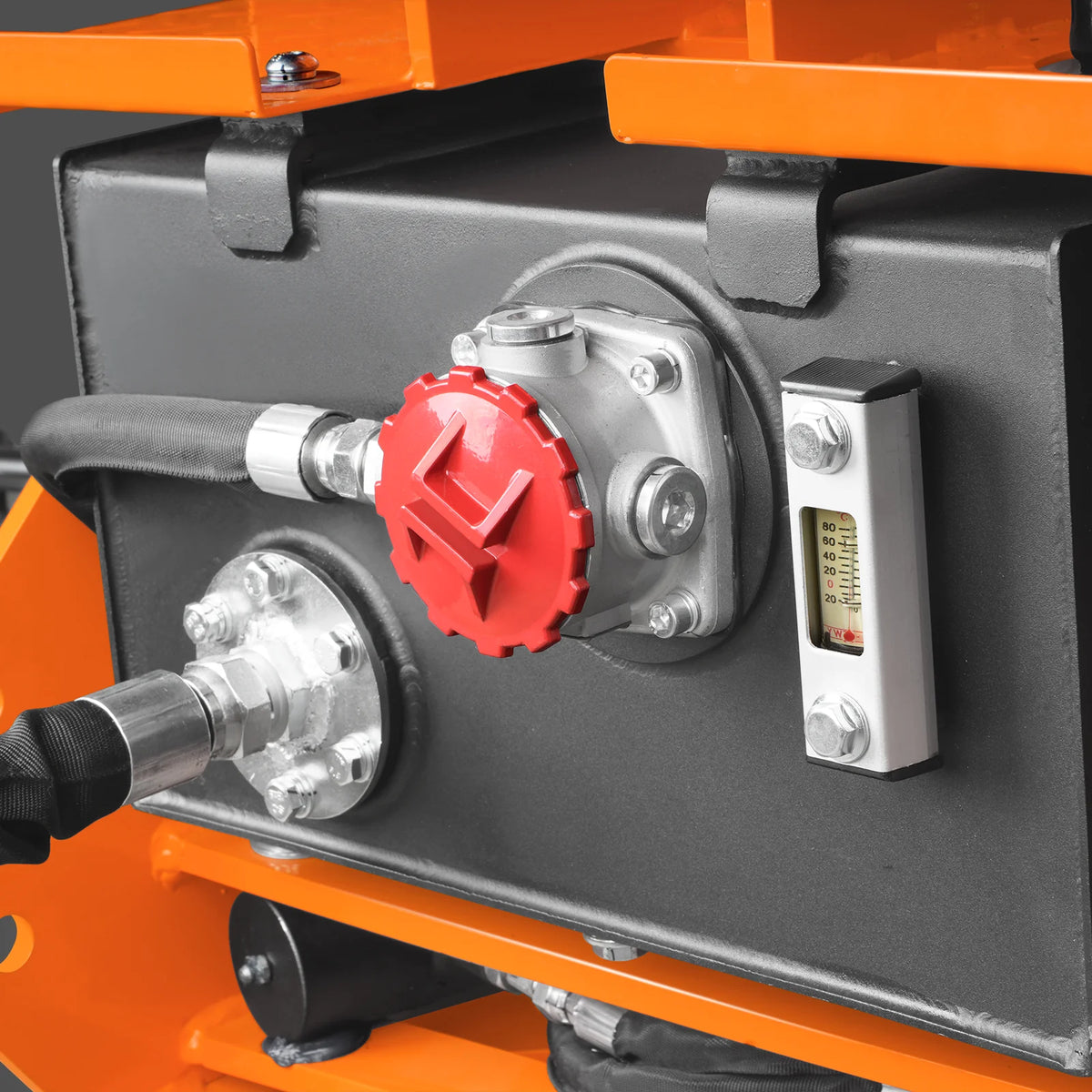

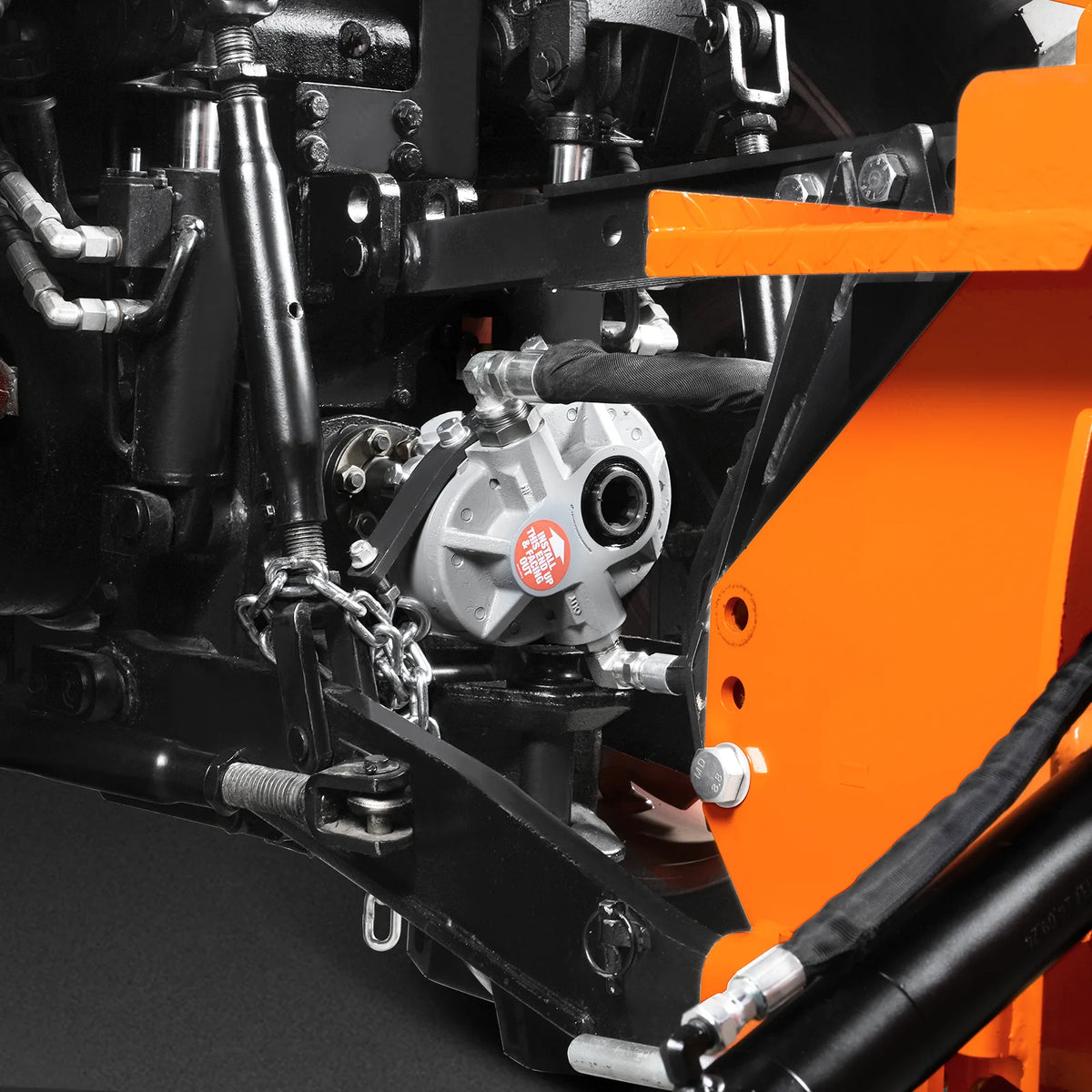

| Transport Height (maximum) | 5 ft 2 in | Self-contained PTO Pump & Tank | Included |

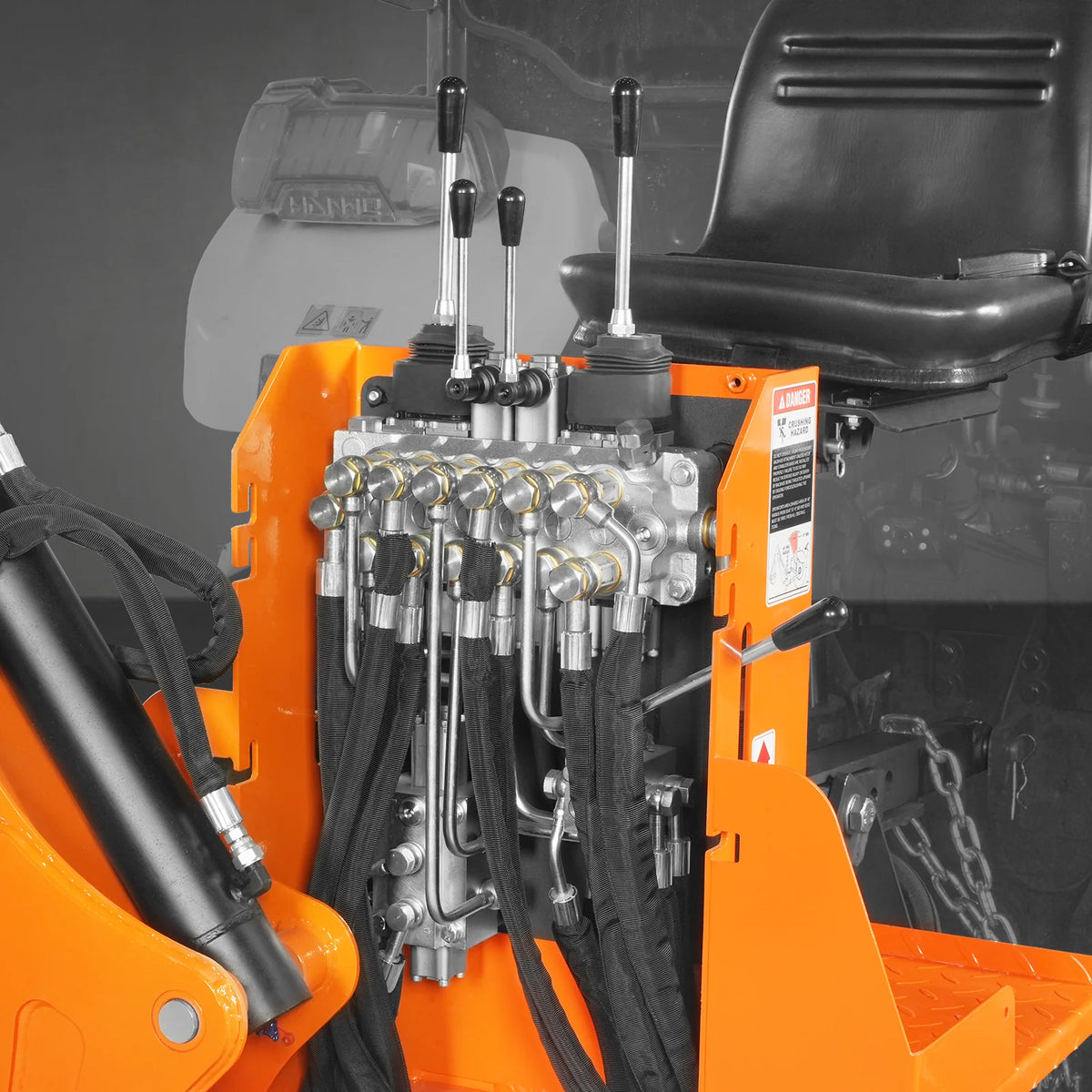

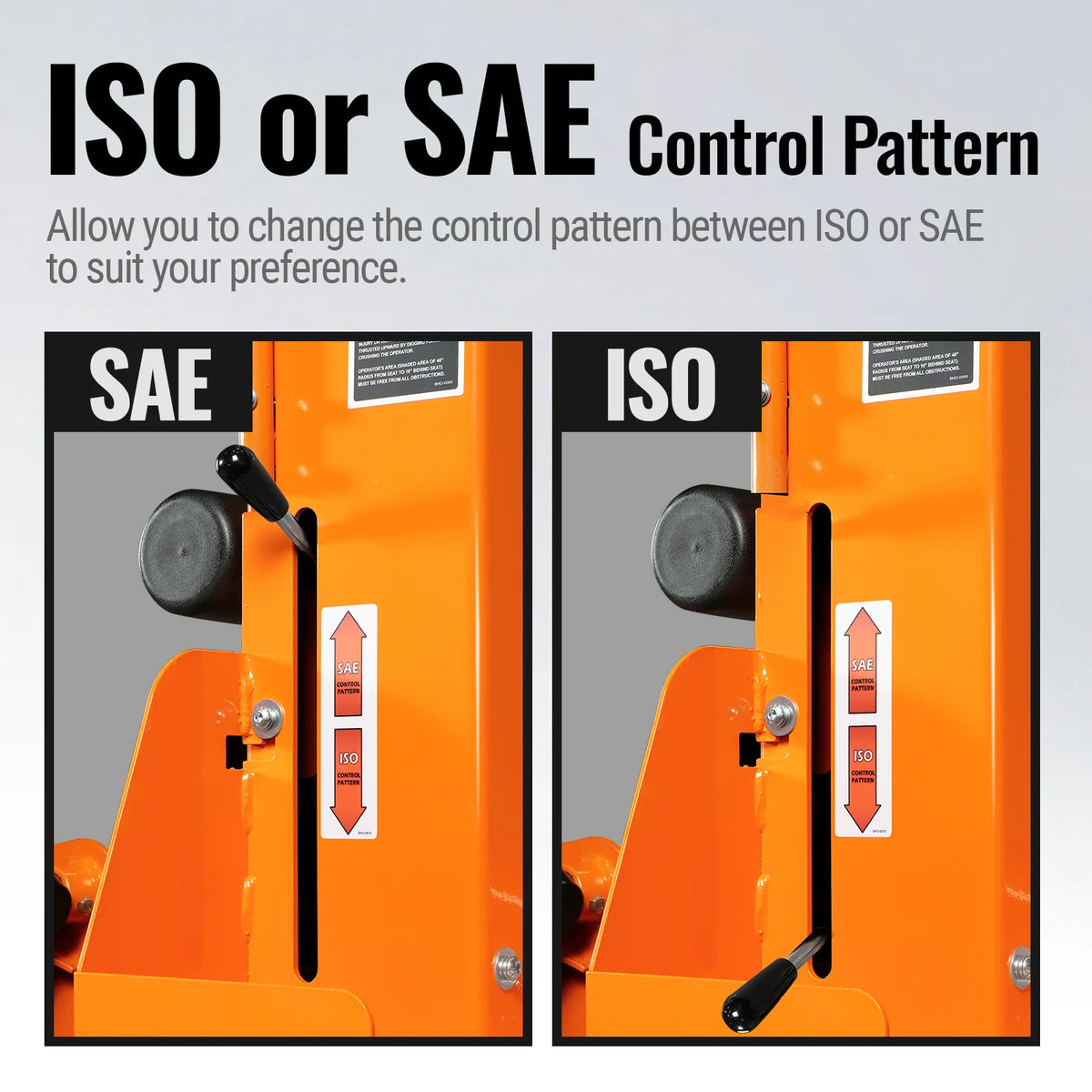

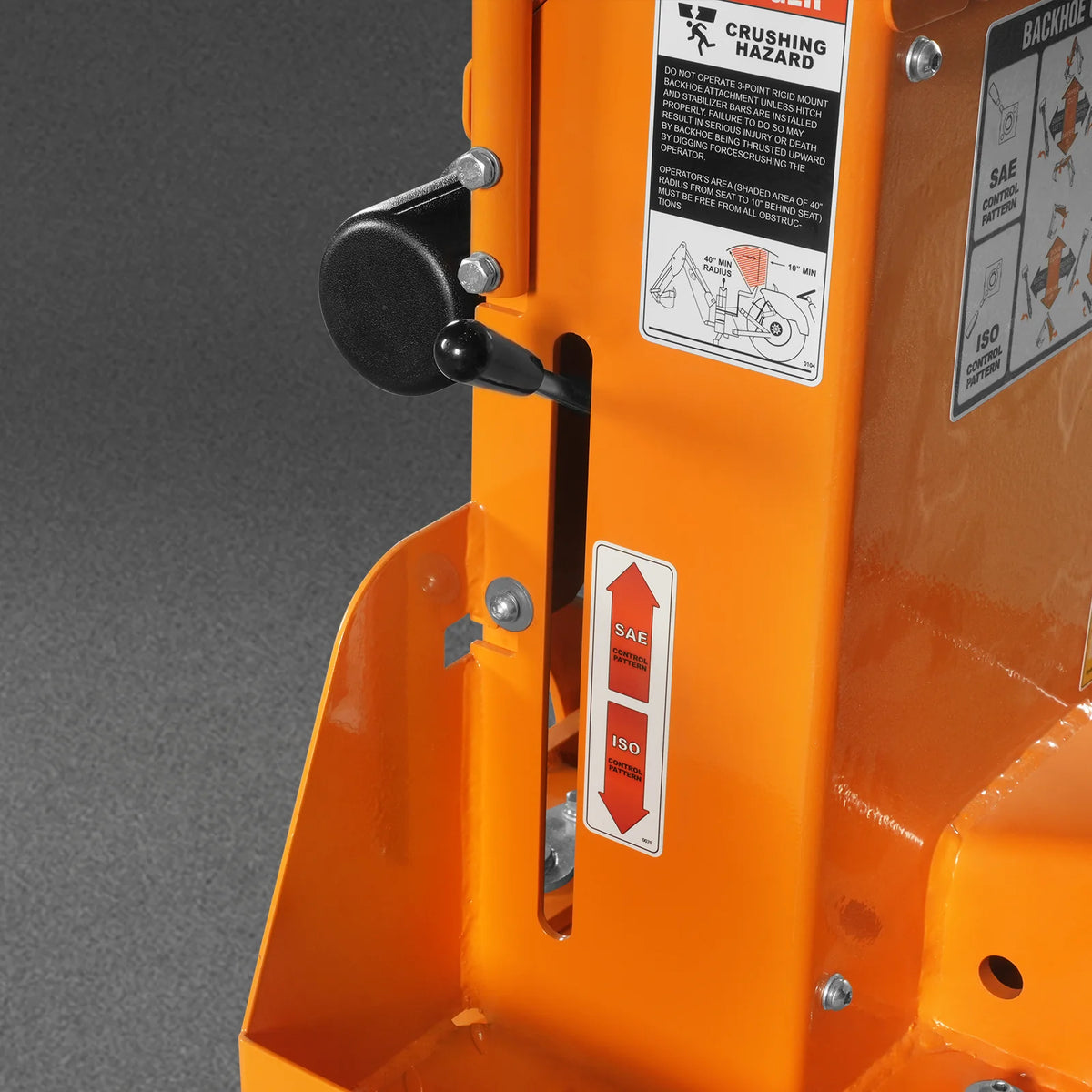

| Bucket Rotation | 180 Degrees | ISO or SAE Switch | Included |

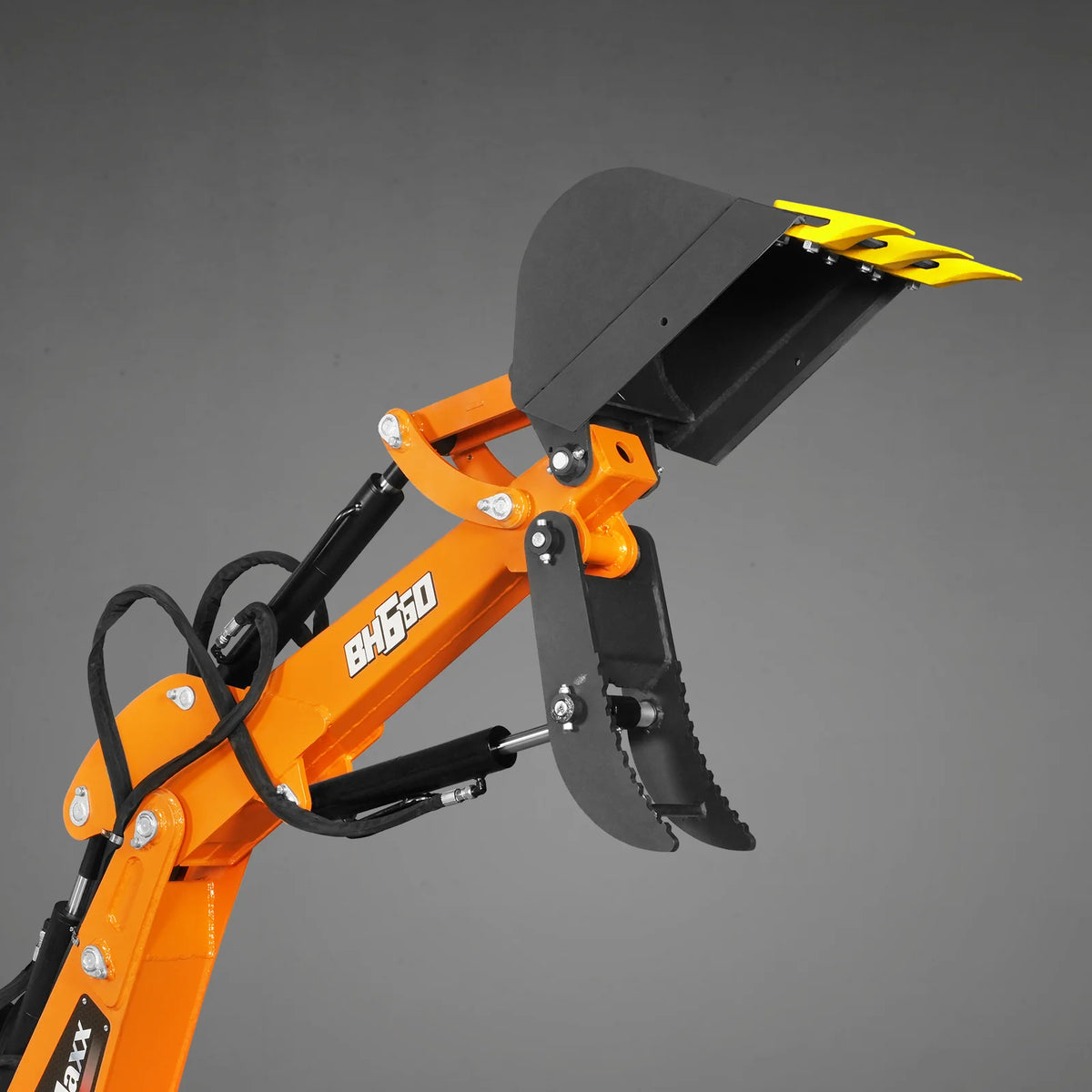

| Loading Reach (bucket at 60 °) | 3 ft 8 in | Standard Thumb | Hydraulic |
| Transport Overhang | 4 ft 9 in | Standard Bucket Size | 12 in (3 teeth) |
| Undercut | 1 ft 6 in | PTO Speed | 540 RPM |

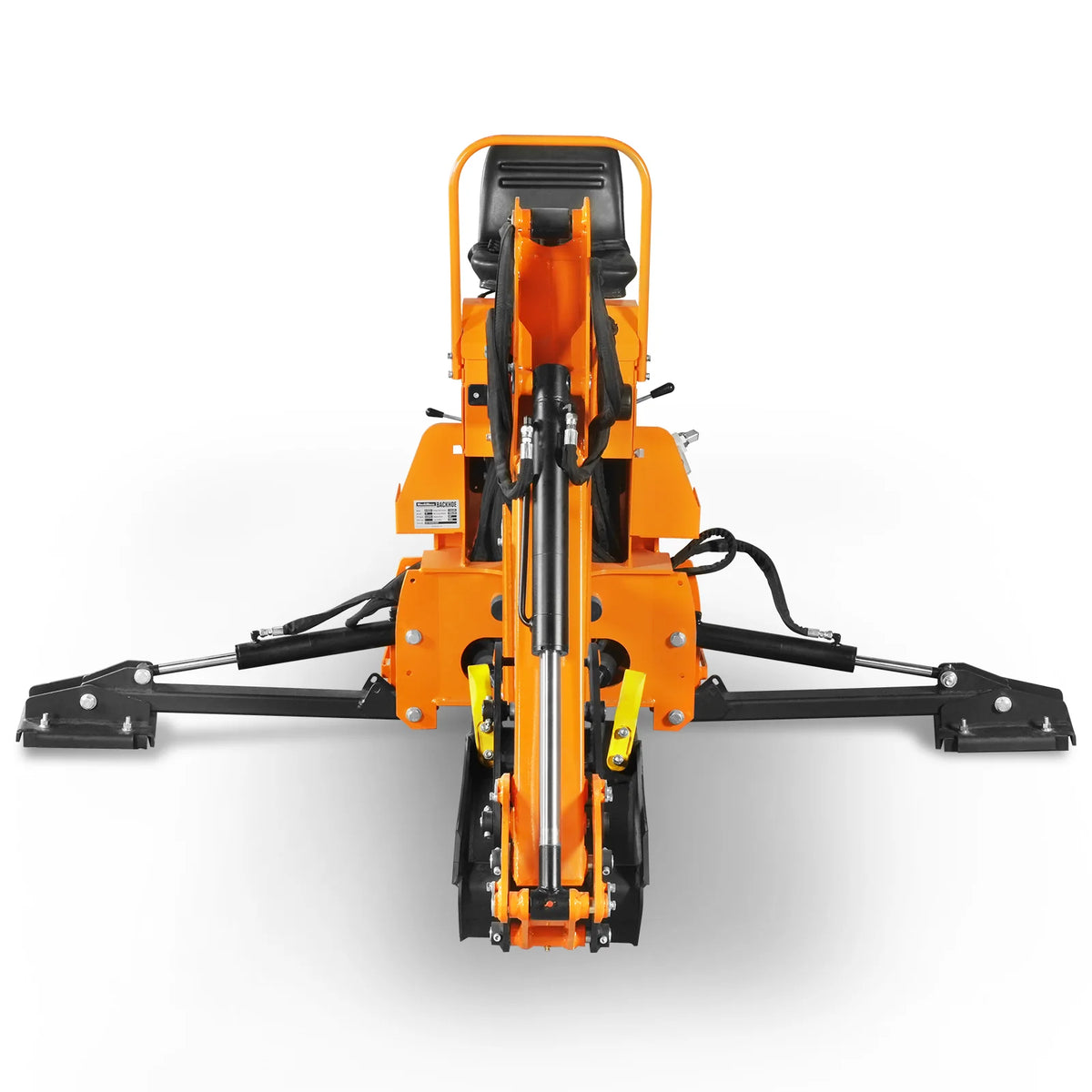

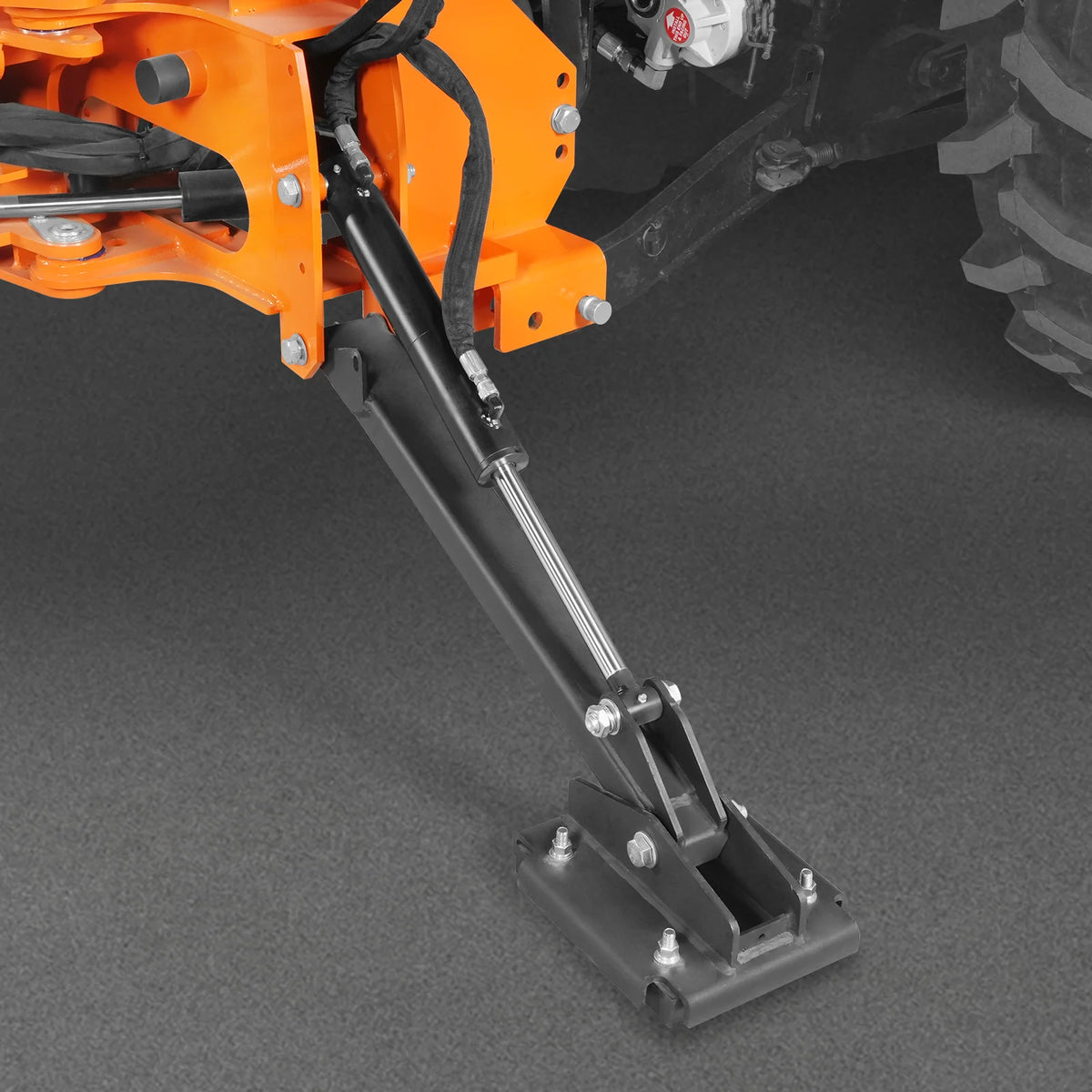

| Stabilizer Spread (down position) | 6 ft 7 in | PTO Connection | 1-3/8" 6 Spline |
| Stabilizer Spread (up position) | 5 ft 9 in | Recommended PTO HP | 15 to 50 HP |

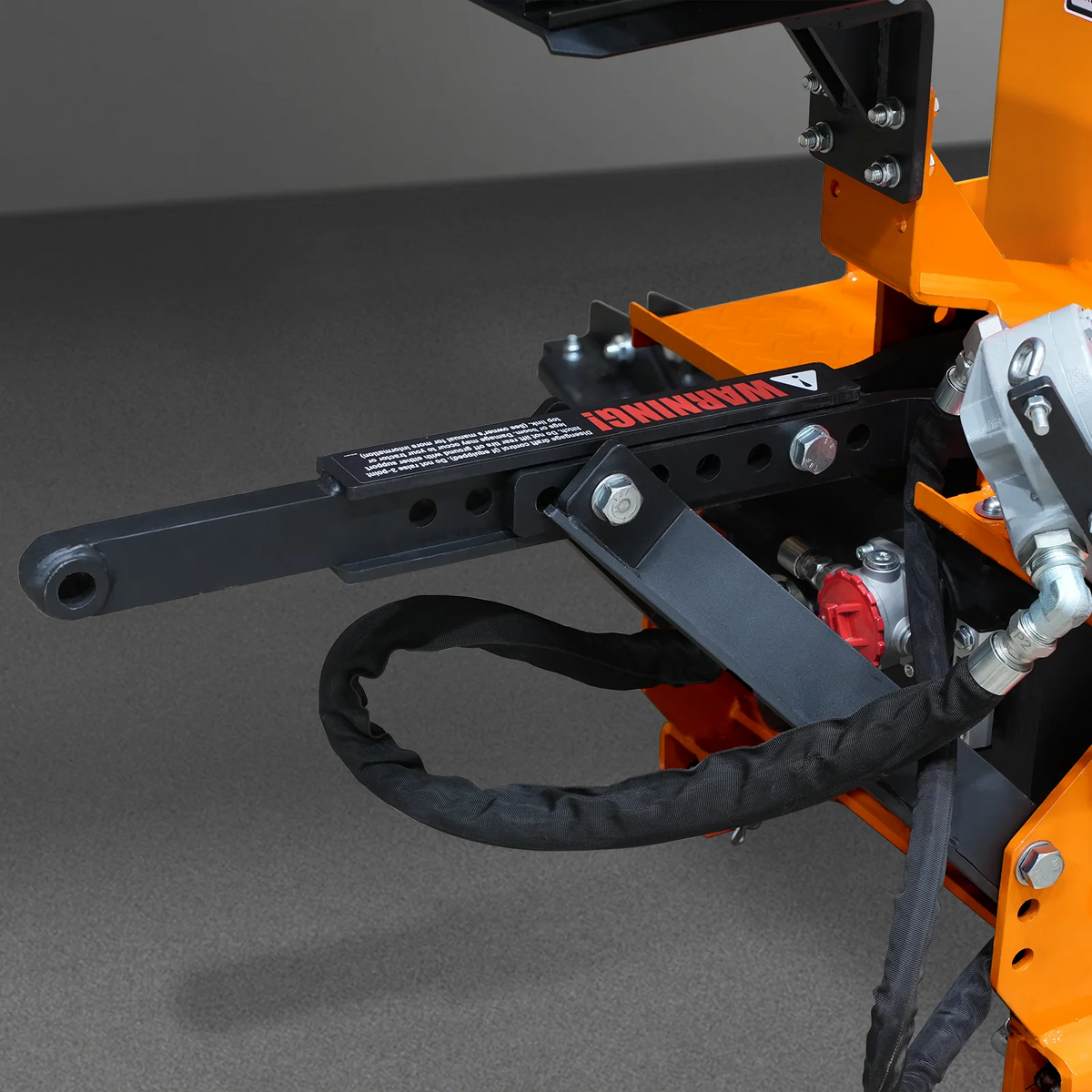

| Stabilizer Spread (lifting height) | 3 ft 8 in | 3-Point Hitch | CAT I |
| Transportation Height (maximum altitude) | 7 ft 2 in | Min Tractor Weight | 1500 lbs |
| Loading Height (bucket at 180 °) | 8 ft 4 in | Min Tractor Rear Lift Capacity | 1371 lbs |
| Transport Overhang (maximum) | 4 ft 2 in | Packing Size (LxWxH) | 58 x 29 x 71 in |
| Bucket Cylinder Digging Force | 2840 lbs | Weight with Bucket (N.W/G.W.) | 1146/1265 lbs |

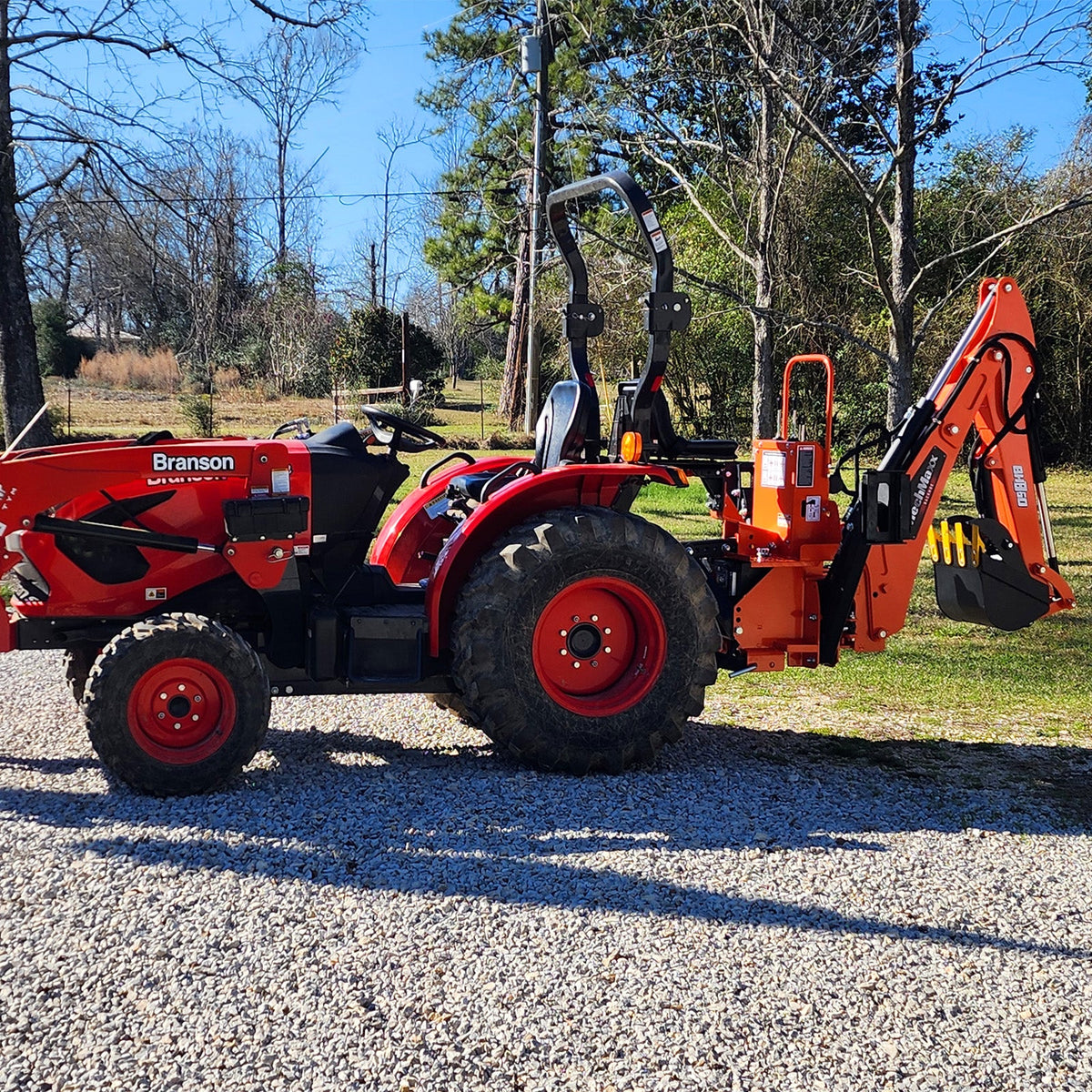

| Regarding tractor compatibility, ensure that the tractor’s PTO HP and 3-point hitch are compatible with the backhoe, and that it meets the minimum weight requirement for safe operation. If the tractor is too light, it can become unstable during travel or operation. To improve stability and reduce tipping hazards, add front ballast as needed. Additionally, take into account factors like speed and terrain slope. Above all, always prioritize safety during operation. | |||
WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
Technical specifications
| Model | 7' Tractor Backhoe Attachment, Hydraulic Thumb, 12" Bucket, ISO/SAE Controls, Cat. 1, 15-50 HP, BH660H |
|---|---|
| SKU | 201162 |
| Weight | 573.794 kg |
| Full spec sheet | Detailed spec sheet on request |
Delivery & setup
Machines are delivered by freight carrier by appointment: 9 business days for France and the EU, 14 business days for the United States. Orders under €10,000: €10 (EU) or €14 (United States); from €10,000: €500 (EU) or €1,000 (United States). Inspect the machine in the driver's presence and note any reservations on the delivery slip.
Payment
Encrypted payment through Shopify checkout; available payment methods are shown at checkout. For multiple machines or a business purchase, request a quote.
Warranty & returns
2-year statutory warranty of conformity and a 14-day right of withdrawal for consumers. 5-year manufacturer warranty. To return a bulky machine, please contact us first: we'll tell you the cost and arrange the pickup.
